Key Specs
1274
sq ft
2
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-1597
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

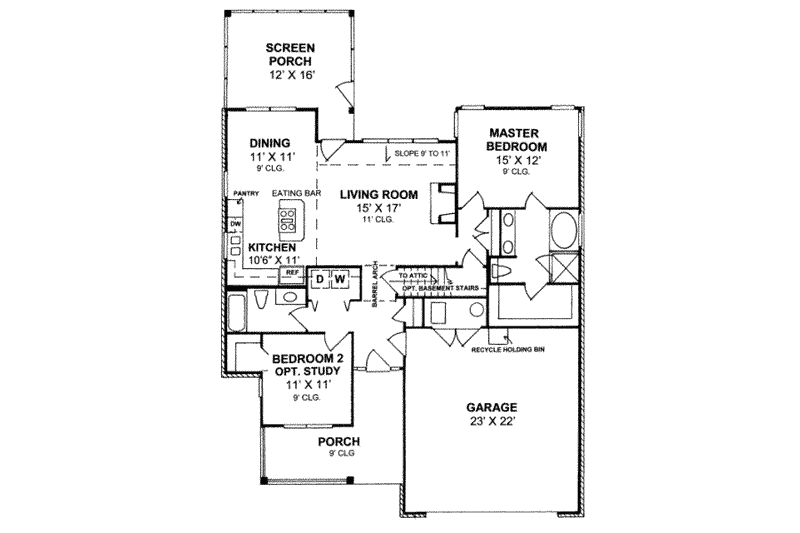

Floor Plans
Full Specs & Features
Dimension
Depth : 62'
Height : 24'
Width : 44'
Area
First Floor: 1274 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Rooms

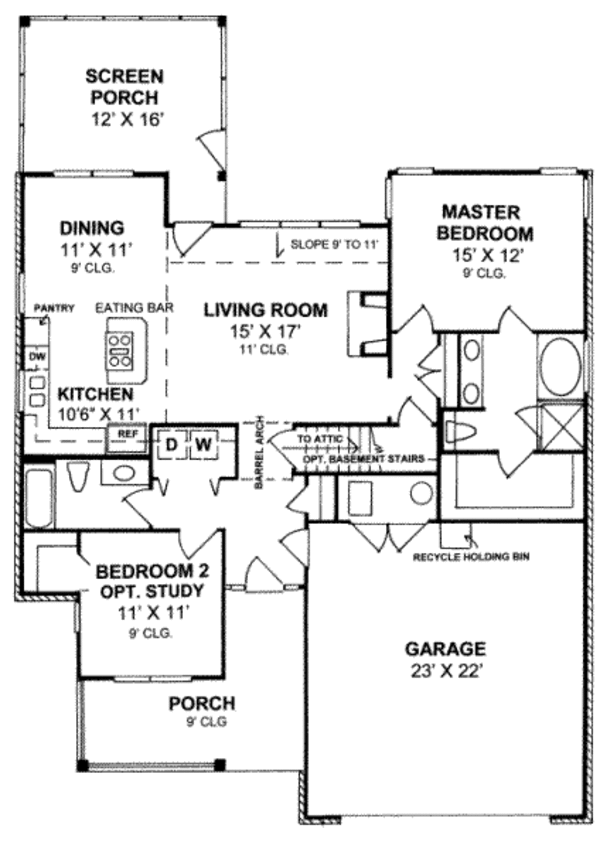

Bedroom 2:
121 sq/ft width 11' x depth 11'
Dining Room:
121 sq/ft width 11' x depth 11'
Garage:
506 sq/ft width 23' x depth 22'
Kitchen:
115 sq/ft width 10' 6" x depth 11'
Living Room:
255 sq/ft width 15' x depth 17'
Master Bedroom:
180 sq/ft width 15' x depth 12'
Porch - Screened:
192 sq/ft width 12' x depth 16'
