PLAN #513-2093

Key Specs


1277
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

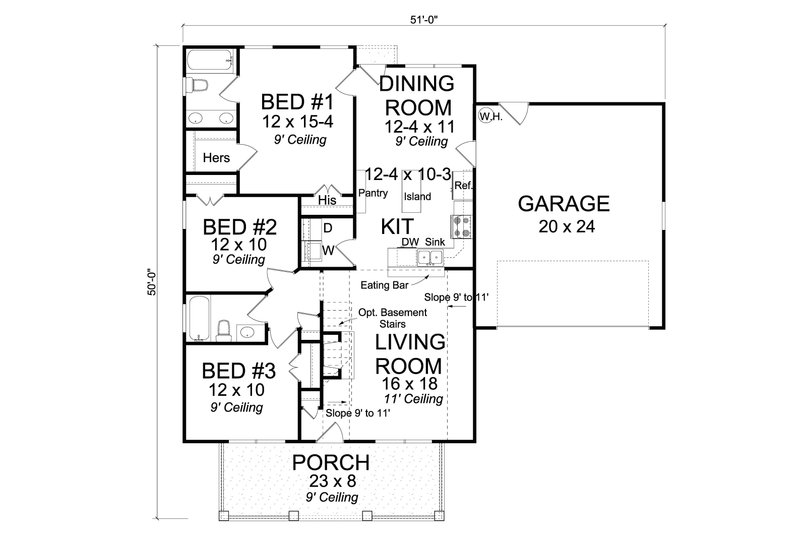

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 50'
Height : 21'
Width : 51'
Area Garage : 480 sq/ft
Main Floor : 1277 sq/ft
Porch : 184 sq/ft
Ceiling Main Ceiling : 9'
Exterior Wall Framing Framing : 2x4
Bedroom Features Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features Breakfast Nook
Peninsula Eating Bar
Additional Room Features Main Floor Laundry
Lot Characteristics Suited For Corner Lot
Suited For View Lot
Outdoor Spaces Courtyard
Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


WL Martin Home Designs

  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

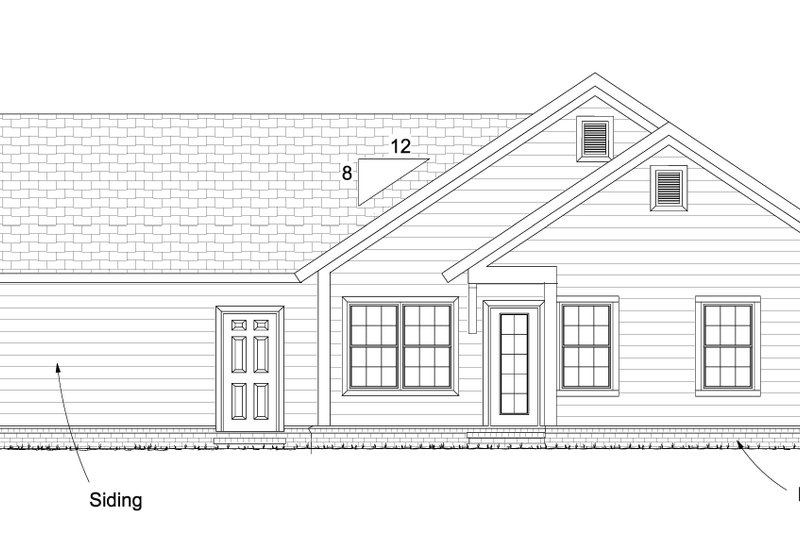

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
