Key Specs
1279
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 513-2115
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 49' 6"
Height : 22'
Width : 48'
Area
First Floor: 1279 sq/ft
Garage: 482 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
45 sq/ft width 9' 2" x depth 5'
Dining Room:
115 sq/ft width 10' 6" x depth 11'
Foyer:
49 sq/ft width 4' 6" x depth 11'
Garage:
440 sq/ft width 20' x depth 22'
Kitchen:
99 sq/ft width 9' x depth 11'
Kitchen Island:
12 sq/ft width 3' x depth 4'
Living Room:
240 sq/ft width 16' x depth 15'
Master Bathroom:
69 sq/ft width 8' 4" x depth 8' 4"
Master Bedroom:
180 sq/ft width 12' x depth 15'
Master Closet:
36 sq/ft width 8' 4" x depth 4' 4"
Utility Room:
46 sq/ft width 7' 6" x depth 6' 2"
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.

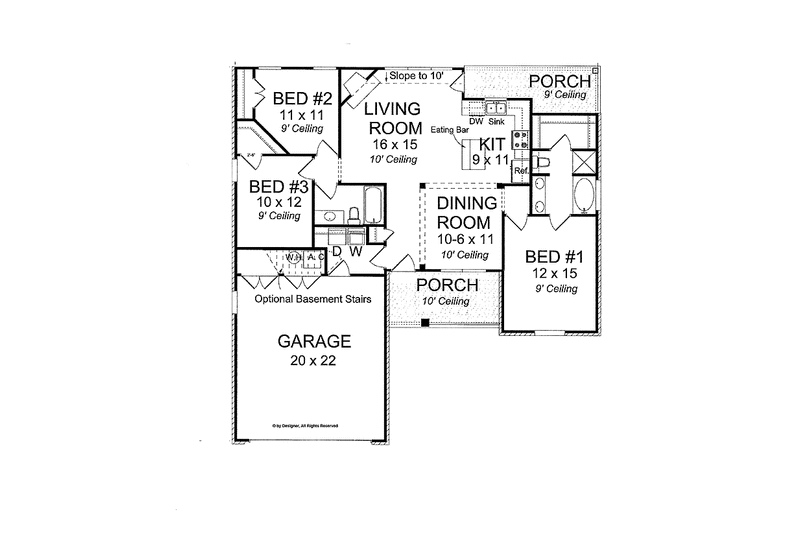

- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

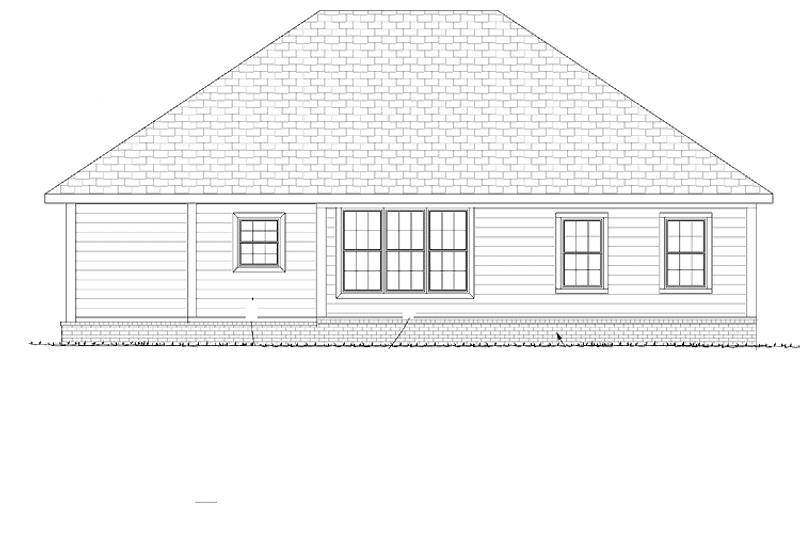

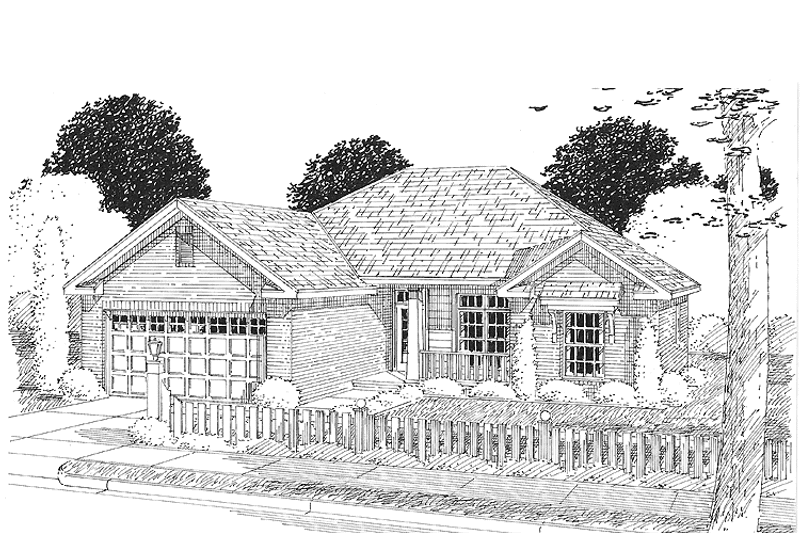

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$803.25
$1054.00
Foundation
$0.00
$165.75
$165.75
Framing
$0.00
$165.75
Additional Options
$165.75
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
