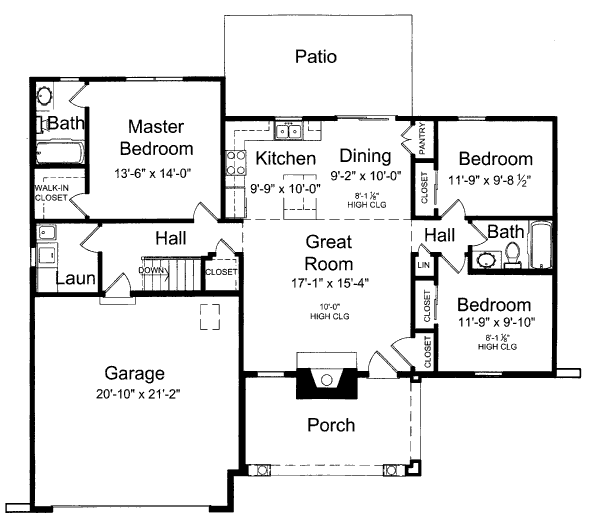

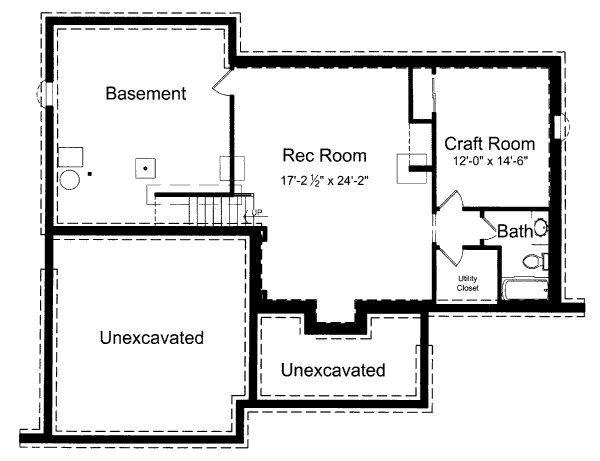

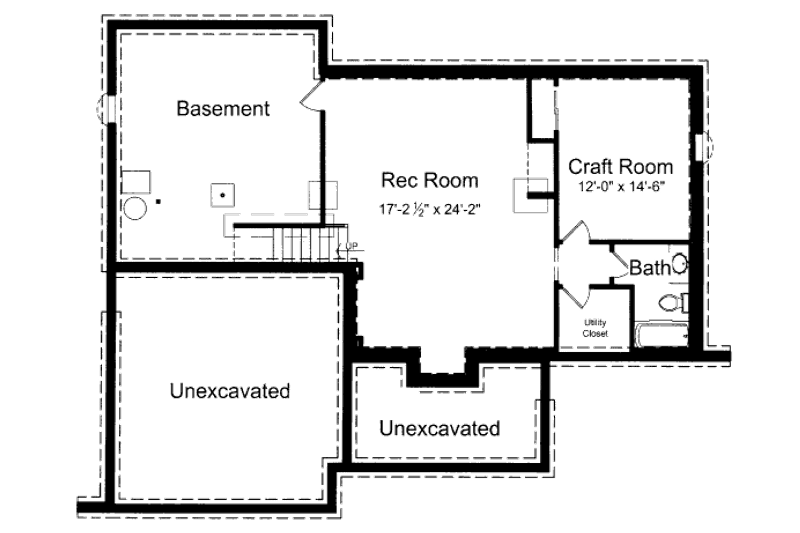

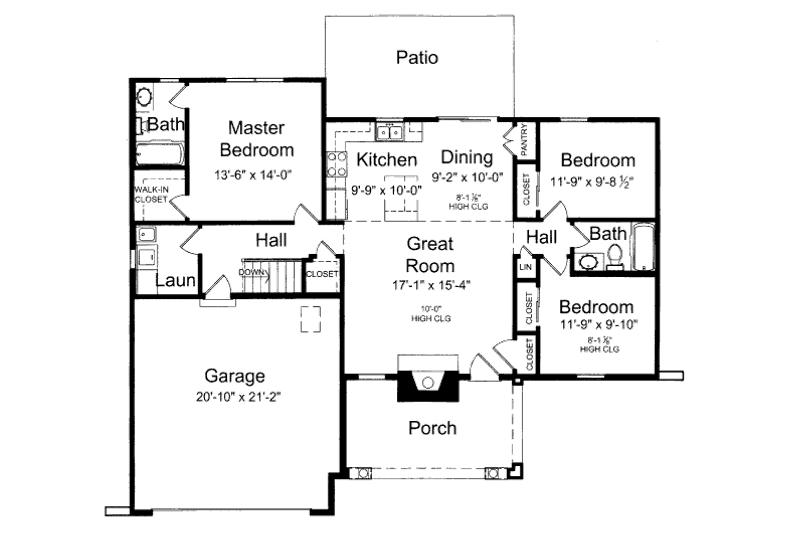

The central living area of this home combines the kitchen, dining area and great room into a large, open entertaining space. A wood burning fireplace, and 10' ceiling height decorate the great room while an island with seating defines the kitchen area and sliding doors from the dining area offer a great view to the rear yard. The ceiling drops to 8' through the kitchen and dining space and remains that height through the remainder of the home. Split bedrooms offer privacy to guests and a full basement provides storage or can be finished for additional living space. A rustic contemporary style of this home makes it a perfect choice for your vacation home.
116 sq/ft width 11' 9" x depth 9' 11"
Bedroom 2 Closet:
10 sq/ft width 2' 1" x depth 5'
114 sq/ft width 11' 9" x depth 9' 9"
Bedroom 3 Closet:
12 sq/ft width 2' 4" x depth 5' 6"
177 sq/ft width 17' 9" x depth 10'
91 sq/ft width 9' 2" x depth 10'
440 sq/ft width 20' 10" x depth 21' 2"
97 sq/ft width 9' 9" x depth 10'
50 sq/ft width 7' 11" x depth 6' 4"
4 sq/ft width 2' 1" x depth 2' 1"
42 sq/ft width 5' x depth 8' 5"
189 sq/ft width 13' 6" x depth 14'
26 sq/ft width 5' x depth 5' 3"
8 sq/ft width 2' 1" x depth 3' 11"
Porch - Front:
177 sq/ft width 17' 9" x depth 10'
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Home Furniture Planner
|This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
