PLAN 42-491

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

1309
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$140.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$48.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$80.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
NOW $600.00
You save $150.00 (20% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Cost-to-Build Estimates

Wow! Cost to Build Reports Only $3.99 with Code NOVCTB (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 42-491

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

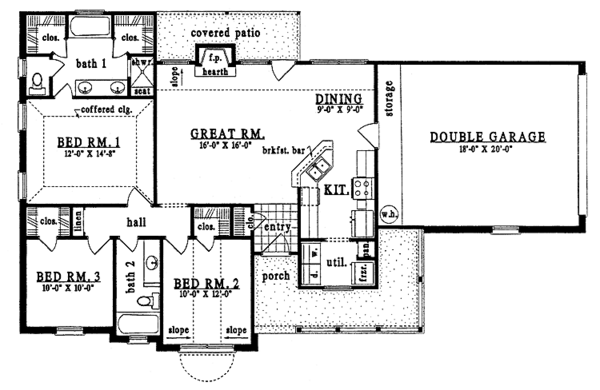

Plan Description


This secondary bedroom will be the delight of any little girl, with a sloping ceiling, and a beautiful bow window to seal this home's curb appeal. Her sibling in the corner bedroom shares a hall bath between the two rooms, an ideal site for secret strategy sessions, while still easily monitored from the master suite across the way. All three can easily access the great room, with a hearth that bumps out onto the covered patio. Garage access through the dining area allows easy arrivals and departures.

Full Specs & Features


Dimension

Depth : 38' 9"

Height : 18'

Width : 64' 4"

Area

First Floor: 1309 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

16 sq/ft width 3' 4" x depth 5'

Bedroom 2:

120 sq/ft width 10' x depth 12'

Bedroom 2 Closet:

13 sq/ft width 3' 4" x depth 4'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Bedroom 3 Closet:

13 sq/ft width 3' 4" x depth 4'

Breakfast Room:

81 sq/ft width 9' x depth 9'

Foyer:

30 sq/ft width 5' x depth 6'

Garage:

366 sq/ft width 18' 4" x depth 20'

Garage Storage:

54 sq/ft width 3' x depth 18' 4"

Gathering Room:

256 sq/ft width 16' x depth 16'

Hall Bathroom:

55 sq/ft width 5' x depth 11'

Hall Closet:

6 sq/ft width 2' x depth 3'

Kitchen:

99 sq/ft width 9' x depth 11'

Master Bathroom:

146 sq/ft width 10' x depth 14' 8"

Master Bedroom:

176 sq/ft width 12' x depth 14' 8"

Master Closet:

20 sq/ft width 4' 6" x depth 4' 6"

Porch - Front:

95 sq/ft width 5' x depth 19'

Porch - Rear:

96 sq/ft width 6' x depth 16'

Utility Room:

47 sq/ft width 5' 4" x depth 9'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

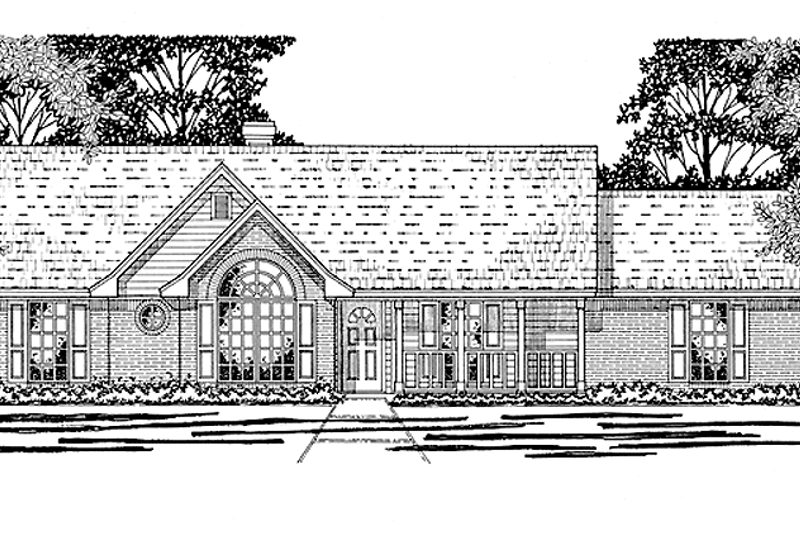

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$600.00
5 printed plan sets mailed to you.
8 Copy Set:
$640.00
8 printed plan sets mailed to you.
PDF Set:
$640.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set:
$560.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse:
$140.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$48.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$80.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
