PLAN #21-342

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This home provides a great use of space, innovative features, and the
 popular split-bedroom floor plan. This design features a great room
 which opens directly into your dining room/breakfast area. From the
 dining, your family has easy access to the large patio, which can be
 easily built as covered or left open to enjoy the great outdoors. The
 exterior walls of this home are framed with 2x6 studs to make room for
 added insulation! Make this your family's next home!

Floor Plans

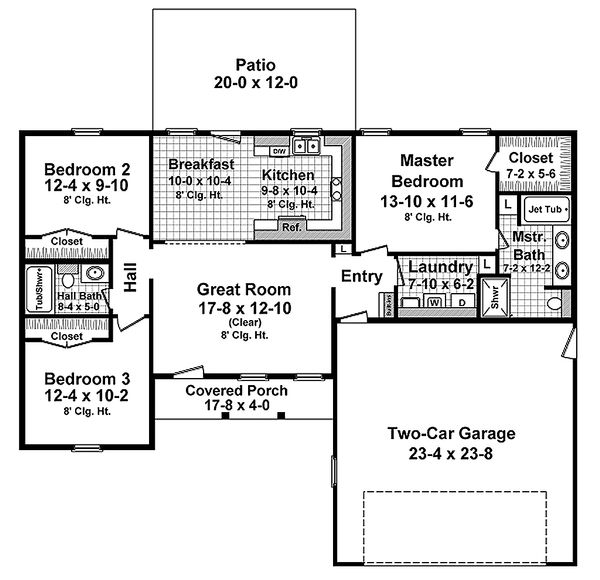

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #21-342

Full Specs & Features

Depth : 43'
Height : 15' 6"
Width : 55'
First Floor: 1310 sq/ft height 8'
Main Ceiling : 8'
Roof Framing : stick
Roof Load : 30
Primary Pitch : 6:12
Roof Type : Hip / Gable
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch

Bedroom 2:

121 sq/ft width 12' 4" x depth 9' 10"

Bedroom 3:

125 sq/ft width 12' 4" x depth 10' 2"


103 sq/ft width 10' x depth 10' 4"

Covered Porch:

70 sq/ft width 17' 8" x depth 4'


552 sq/ft width 23' 4" x depth 23' 8"

Great Room:

226 sq/ft width 17' 8" x depth 12' 10"


99 sq/ft width 9' 8" x depth 10' 4"

Laundry Room:

48 sq/ft width 7' 10" x depth 6' 2"

Master Bathroom:

87 sq/ft width 7' 2" x depth 12' 2"

Master Bedroom:

159 sq/ft width 13' 10" x depth 11' 6"

Master Closet:

39 sq/ft width 7' 2" x depth 5' 6"


240 sq/ft width 20' x depth 12'

What's Included In This Plan Set

  • Cover Sheet: Showing architectural rendering of residence
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
  • Foundation Plan and Details
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
