PLAN #58-174

Key Specs


1339
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

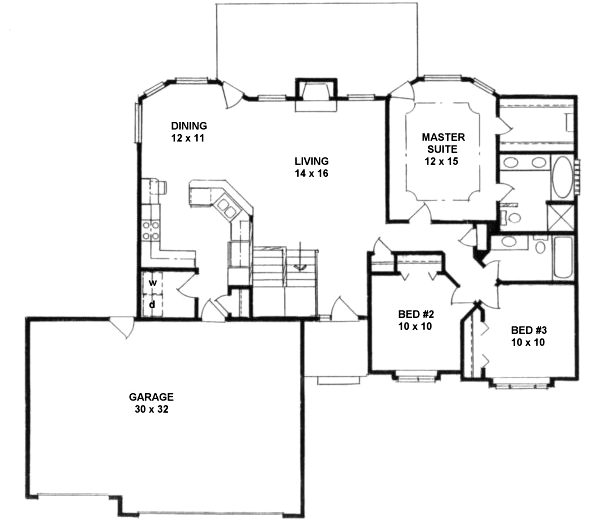

Floor Plan - Main Floor Plan

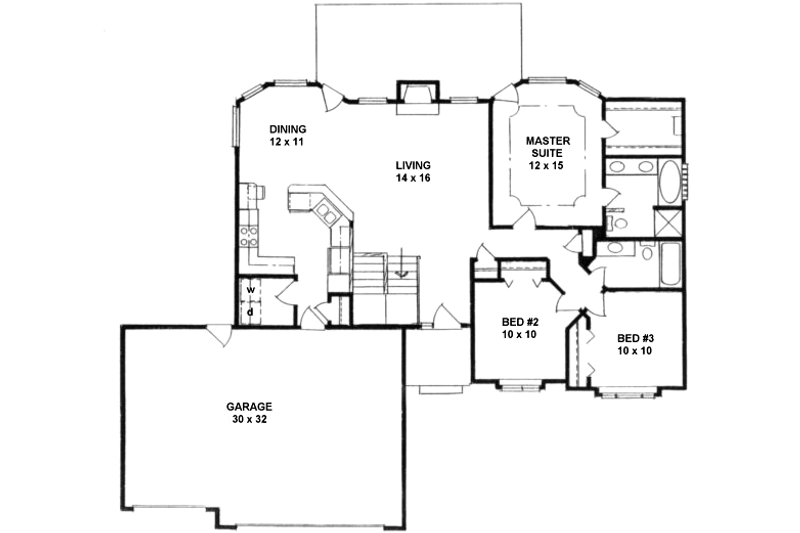

Ranch Floor Plan - Main Floor Plan Plan #58-174

Full Specs & Features


Dimension
Depth : 48'
Height : 16'
Width : 60'
Area
Basement Unfinished: 1134 sq/ft height 8'
First Floor: 1339 sq/ft height 9'
Garage: 660 sq/ft height 8'
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 6:12
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Unfinished Future Space
Garage Features
Oversized Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Rooms

Bedroom 2:

100 sq/ft width 10' x depth 10'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Dining Room:

132 sq/ft width 12' x depth 11'

Garage:

660 sq/ft width 30' x depth 22'

Living Room:

240 sq/ft width 15' x depth 16'

Master Suite:

180 sq/ft width 12' x depth 15'

What's Included In This Plan Set


Each set of plans include:
  • 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
  • 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.
  • 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
  • Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
  • Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
  • Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
  • Building Cross Section - Complete front to back cross section with basic framing details.
» See important information before purchasing.

Plan Set

PDF Set :
$590.75
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$675.75
5 printed plan sets mailed to you.
Reproducible Set :
$675.75
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Right-Reading Reverse :
85.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
38.25
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
