PLAN 23-2282
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This cottage design floor plan is 1344 sq ft and has 2 bedrooms and 1 bathrooms.
Floor Plans

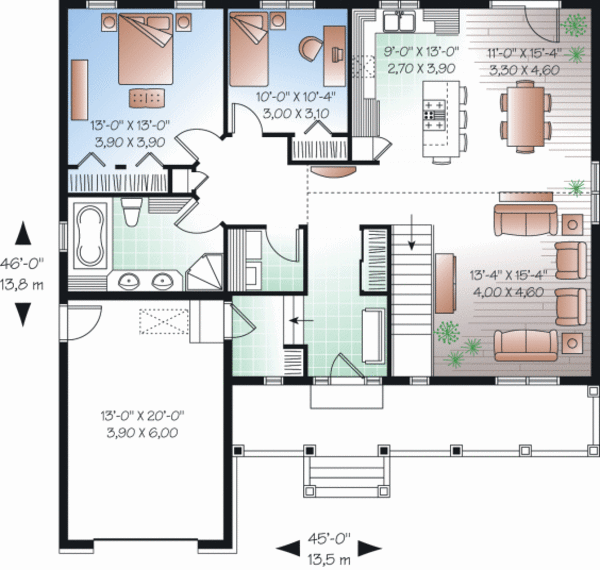

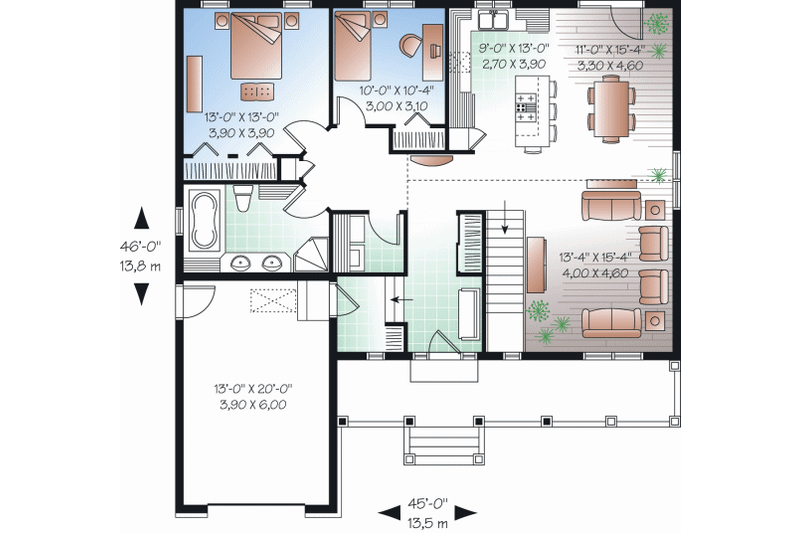

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 46'
Height : 25' 4"
Width : 45'
Area
Basement Unfinished: 1344 sq/ft
Bonus: 206 sq/ft
First Floor: 1344 sq/ft
Garage: 296 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Trusses
Roof Load : Live 55psf - dead 20 psf
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Insulation : Ext. Walls R20 - Roof R40
Bedroom Features
Main Floor Bedrooms
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Family Room Keeping Room
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Empty Nester
Rooms
Bedroom 1:
169 sq/ft width 13' x depth 13'
Bedroom 2:
103 sq/ft width 10' x depth 10' 4"
Breakfast Nook:
168 sq/ft width 11' x depth 15' 4"
Family Room:
204 sq/ft width 13' 4" x depth 15' 4"
Garage:
260 sq/ft width 13' x depth 20'
Kitchen:
117 sq/ft width 9' x depth 13'
What's Included In This Plan Set
This plan set typically contains:
Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
