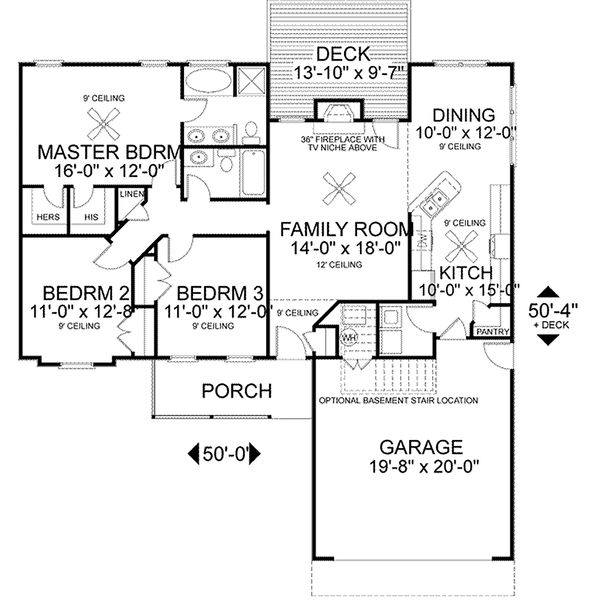

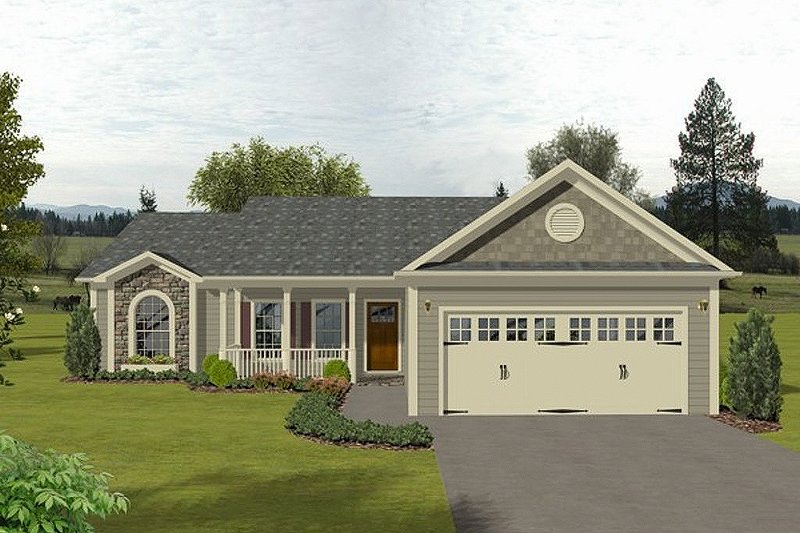

With its front porch, planter, and combination of siding, wood shingles, and stone, this compact ranch is warm and irresistible. With a truss roof system and simple design, this cost-effective plan is perfect for the budget-conscious. Though only 1381 square feet, you'll find a 10'x15' kitchen, a 16'x12' master bedroom, and two spacious secondary bedrooms. Beyond the front porch and through the entry is the family room with a 12' high ceiling. Its focal point is a fireplace with a TV niche above. To the right is the dining room and kitchen. The angled breakfast bar is open to both the family and dining rooms. Other than the family room, all other ceiling heights are 9'. The master suite features his and hers walk-in closets and a full-featured bath including a whirlpool tub and shower. The secondary bedrooms measuring 11'x12'-8" and 11'x12' share the second bath NOTE: Materials list is available with slab foundation option only. If Right Reading Reverse option is ordered, floor plans, foundation and roof plans will be right-reading -- elevations will be mirrored.
Depth : 51'
Height : 19'
Width : 50'
Main Floor : 1381 sq/ft
Main Ceiling : 9'
Primary Pitch : 6:12
Secondary Pitch : 8:12
|Exterior Wall Framing||
Framing : 2"x4"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
|Additional Room Features||
Family Room Keeping Room
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
