PLAN 23-650
Key Specs
1394
sq ft
3
Beds
1
Baths
1
Floors
1
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 23-650
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 58'
Height : 26' 8"
Width : 36'
Height : 26' 8"
Width : 36'
Area
First Floor: 1394 sq/ft height 8'
Garage: 350 sq/ft
Garage: 350 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Lot Characteristics
Suited For Narrow Lot

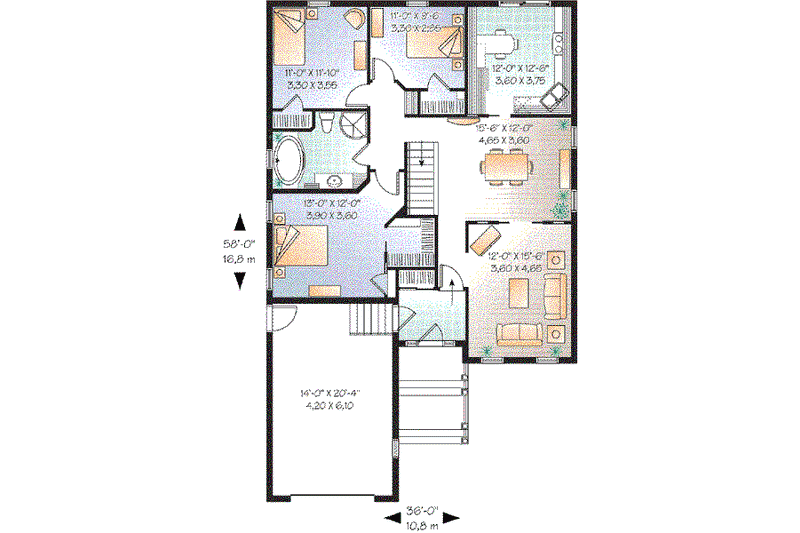

Rooms
Bedroom 2:
130 sq/ft width 11' x depth 11' 10"
Bedroom 2 Closet:
9 sq/ft width 4' 8" x depth 2'
Bedroom 3:
104 sq/ft width 11' x depth 9' 6"
Bedroom 3 Closet:
13 sq/ft width 5' 2" x depth 2' 8"
Coat Closet:
8 sq/ft width 4' 2" x depth 2'
Dining Room:
186 sq/ft width 15' 6" x depth 12'
Family Room:
186 sq/ft width 12' x depth 15' 6"
Foyer:
44 sq/ft width 7' 8" x depth 5' 10"
Garage:
312 sq/ft width 14' x depth 22' 4"
Kitchen:
150 sq/ft width 12' x depth 12' 6"
Linen Closet:
4 sq/ft width 1' 6" x depth 2' 8"
Master Bathroom:
99 sq/ft width 11' x depth 9'
Master Bedroom:
156 sq/ft width 13' x depth 12'
Master Closet:
31 sq/ft width 5' 6" x depth 5' 8"
Porch - Front:
29 sq/ft width 7' 4" x depth 4'
What's Included In This Plan Set

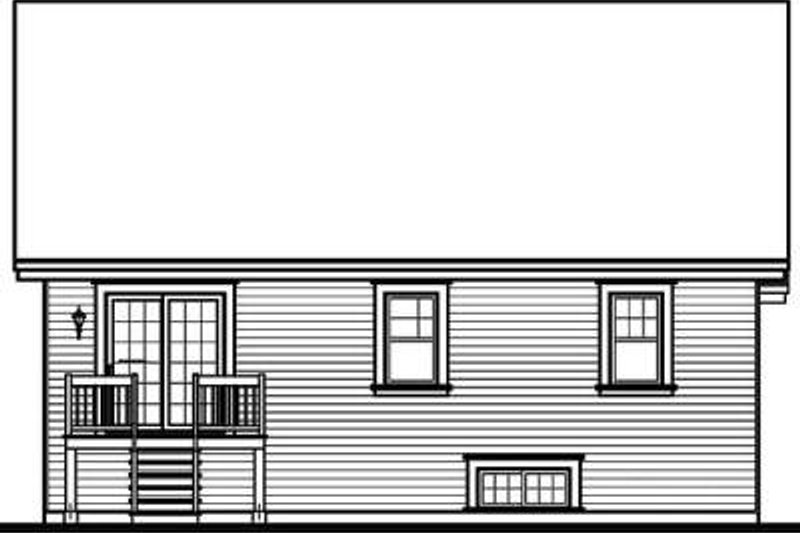

Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures
- Dimension and height of chimney
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions
- Location and sizes of doors and windows
- Types of interior doors that correspond to a schedule
- Indication of the structure above (second floor or roof)
- Location of columns, beams and floor joists, including dimensions
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- Location of ridges and valleys
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include an electrical layout.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set
: $1055.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy and PDF Set
: $1180.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $1655.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $425.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $425.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Right-Reading Reverse
: $150.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
