PLAN #41-110

Key Specs


1406
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

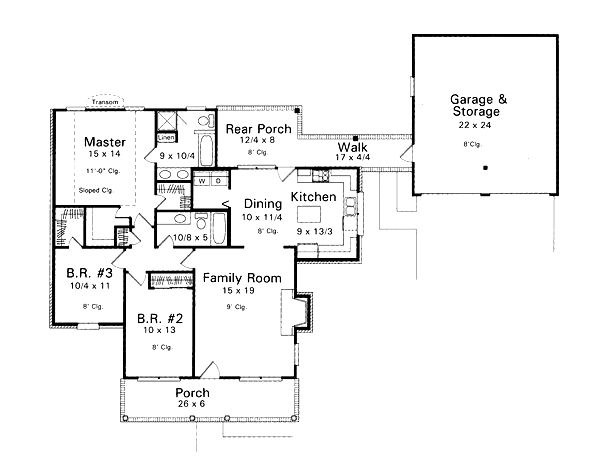

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #41-110

Full Specs & Features


Dimension
Depth : 57' 1"
Height : 22'
Width : 76' 6"
Area
First Floor: 1406 sq/ft height 8'
Bedroom Features
Walk In Closet
Kitchen Features
Kitchen Island
Garage Features
Detached Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Breezeway
Covered Front Porch
Covered Rear Porch
Rooms

3rd BR Closet:

20 sq/ft width 4' x depth 5'

Bedroom 2:

130 sq/ft width 10' x depth 13'

Bedroom 2 Closet:

12 sq/ft width 2' x depth 6'

Bedroom 3:

113 sq/ft width 10' 4" x depth 11'

Bedroom 3 Closet:

12 sq/ft width 2' x depth 6'

Dining Room:

113 sq/ft width 10' x depth 11' 4"

Garage:

528 sq/ft width 22' x depth 24'

Gathering Room:

285 sq/ft width 15' x depth 19'

Hall:

width 3' 4" x depth 0"

Hall Bathroom:

53 sq/ft width 10' 8" x depth 5'

Hall Closet:

6 sq/ft width 2' x depth 3'

Kitchen:

119 sq/ft width 9' x depth 13' 3"

Master Bathroom:

92 sq/ft width 9' x depth 10' 4"

Master Bedroom:

210 sq/ft width 15' x depth 14'

Master Closet:

28 sq/ft width 5' 5" x depth 5' 4"

Utility Room:

30 sq/ft width 5' x depth 6'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$531.25
5 printed plan sets mailed to you.
8 Copy Set :
$616.25
8 printed plan sets mailed to you.
Reproducible Set :
$616.25
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1020.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$433.50
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
42.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
42.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
