PLAN #18-1036

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

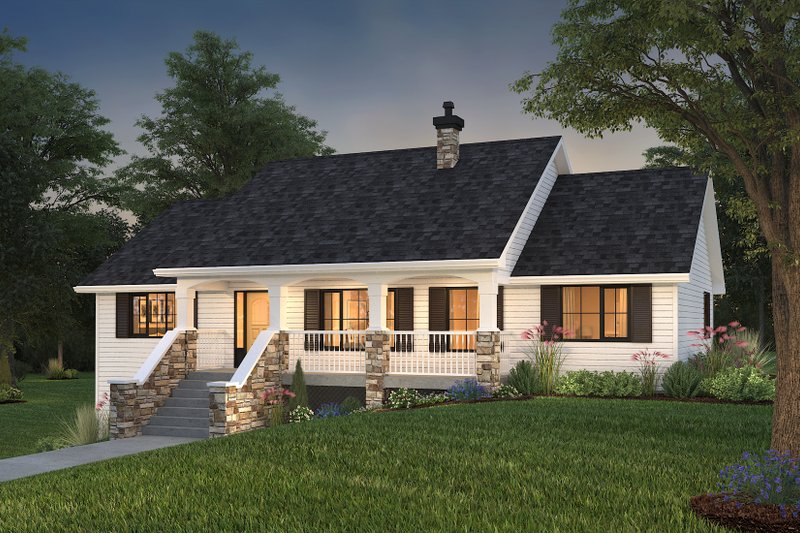

This 3 bedroom one level country house plan is all about simple
 building and living. The kitchen, dining area, and great room are in the middle
 of the house with the master suite on one side and the other 2 bedrooms
 on the other. The wide front porch shelters the entry and presents a welcoming
 face toward the street.

Floor Plans

Floor Plan - Main Floor Plan
Country style house plan, ranch floor plan, main level

Full Specs & Features

Dimension Depth : 35'
Height : 22'
Width : 54' 6"
Area Basement : 1396 sq/ft
Main Floor : 1412 sq/ft
Ceiling Ceiling Details : Great Room: 14'6"Kitchen/Dining room: 13'6"Master Suite: 12'6"
Main Ceiling : 8'
Roof Primary Pitch : 8:12
Exterior Wall Framing Framing : 2"x6"
Bedroom Features Split Bedrooms
Walk In Closet
Kitchen Features Eating Bar
Additional Room Features Great Room Living Room
Unfinished Future Space
Lot Characteristics Suited For View Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch
3rd BR Closet 7 sq/ft width 2' x depth 3' 6"
Basement Foundation 1471 sq/ft width 54' 6" x depth 27'
Bathroom 2 42 sq/ft width 5' 2" x depth 8' 2"
Bedroom 2 111 sq/ft width 11' x depth 10' 2"
Bedroom 2 Closet 15 sq/ft width 4' 6" x depth 3' 6"
Bedroom 3 120 sq/ft width 10' x depth 12'
Bedroom 3 Closet 15 sq/ft width 4' 6" x depth 3' 6"
Dining Room 121 sq/ft width 10' x depth 12' 2"
Hall Closet 8 sq/ft width 4' x depth 2'
Kitchen 101 sq/ft width 10' x depth 10' 2"
Laundry Room 46 sq/ft width 6' x depth 7' 8"
Linen Closet 4 sq/ft width 1' 6" x depth 3'
Living Room 310 sq/ft width 20' x depth 15' 6"
Master Bathroom 83 sq/ft width 9' 4" x depth 9'
Master Bedroom 168 sq/ft width 14' x depth 12'
Master Closet 42 sq/ft width 5' x depth 8' 6"
Porch - Front 150 sq/ft width 27' 4" x depth 5' 6"
Porch - Rear 72 sq/ft width 14' 4" x depth 5' 1"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
