PLAN #84-493

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

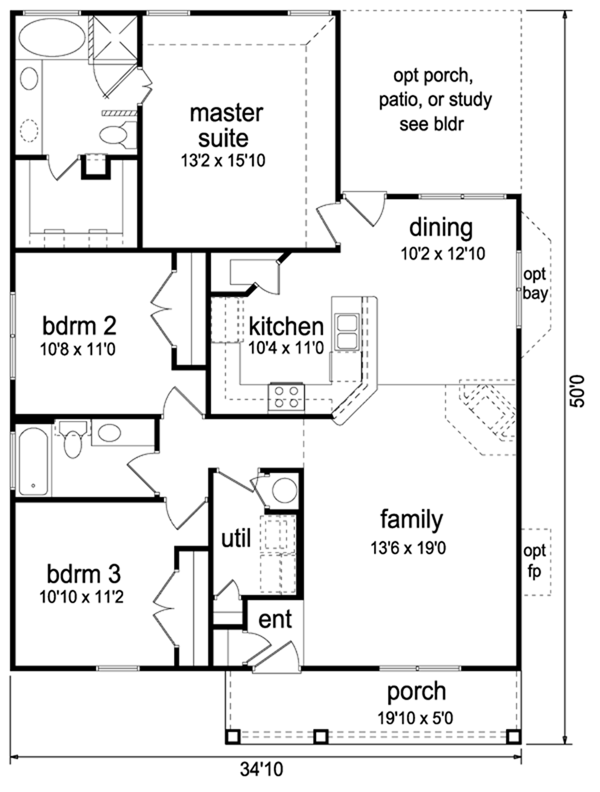

Floor Plan - Main Floor Plan
Cottage Floor Plan - Main Floor Plan Plan #84-493

Full Specs & Features

Depth : 50'
Height : 18'
Width : 34' 10"
First Floor: 1413 sq/ft
Main Ceiling : 9'
Roof Framing : stick
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Economical To Build
Code Compliance
Irc 2003

Bedroom 2:

117 sq/ft width 10' 8" x depth 11'

Bedroom 3:

120 sq/ft width 10' 10" x depth 11' 2"

Dining Room:

130 sq/ft width 10' 2" x depth 12' 10"

Family Room:

256 sq/ft width 13' 6" x depth 19'


113 sq/ft width 10' 4" x depth 11'

Master Suite:

208 sq/ft width 13' 2" x depth 15' 10"

Porch - Front:

99 sq/ft width 19' 10" x depth 5'

What's Included In This Plan Set

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.

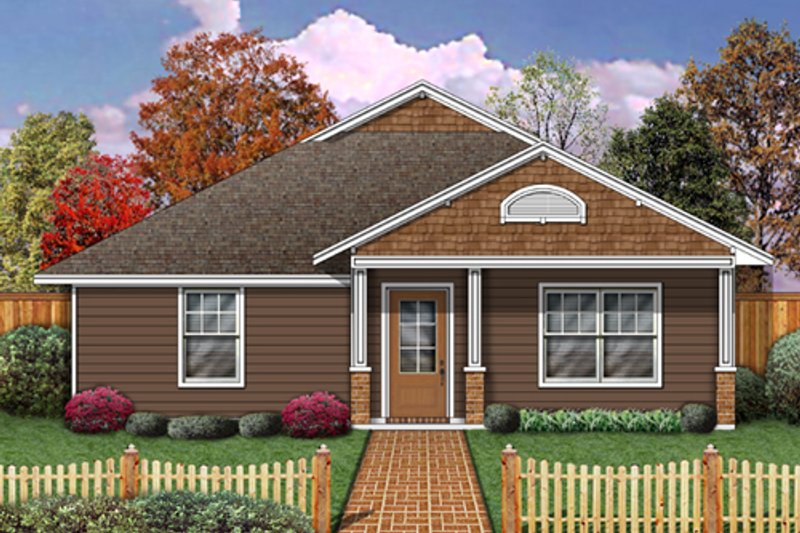

  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
