PLAN 310-892
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This european design floor plan is 1427 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

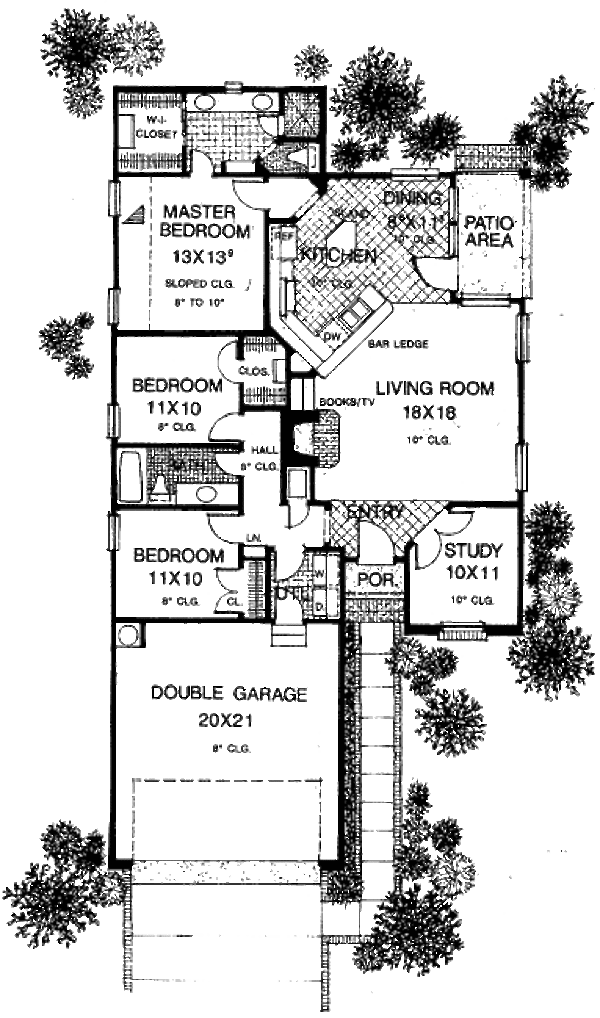

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 68' 5"
Height : 21'
Width : 35'
Area
First Floor: 1427 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 9:12
Roof Framing : stick
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Rear Porch
More
Empty Nester
Code Compliance
Irc 2006
Rooms
Bedroom 2:
110 sq/ft width 11' x depth 10'
Bedroom 3:
110 sq/ft width 11' x depth 10'
Garage:
420 sq/ft width 20' x depth 21'
Living Room:
324 sq/ft width 18' x depth 18'
Master Bedroom:
169 sq/ft width 13' x depth 13'
Study:
110 sq/ft width 10' x depth 11'
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.

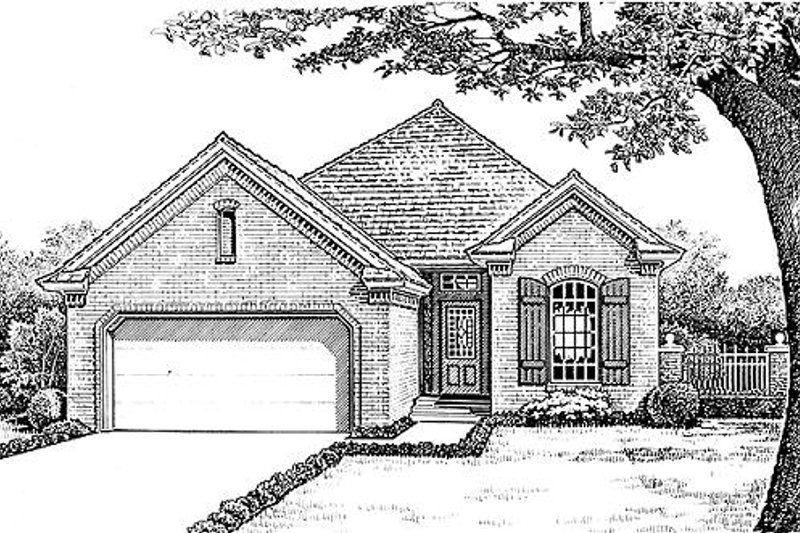

- Cover Sheet: Showing architectural rendering of residence
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Questions? Call 1-800-447-0027
Plan Set
5 Copy Set:
$718.25
$718.25
5 printed plan sets mailed to you.
8 Copy Set:
$837.25
$837.25
8 printed plan sets mailed to you.
PDF Set:
$964.75
$964.75
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$964.75
$964.75
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$1423.75
$1423.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set:
$671.50
$671.50
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse:
$255.00
$255.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$42.50
$42.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$85.00
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets:
$42.50
$42.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
