PLAN 48-814
Photographs may show modified designs.
- Jump to:
- All (5)
- Floor plans (3)
Get Personalized Help
Key Specs
1430
sq ft
2
Beds
2
Baths
3
Floors
1
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBSUMMER
Use Code CTBSUMMER
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 48-814
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

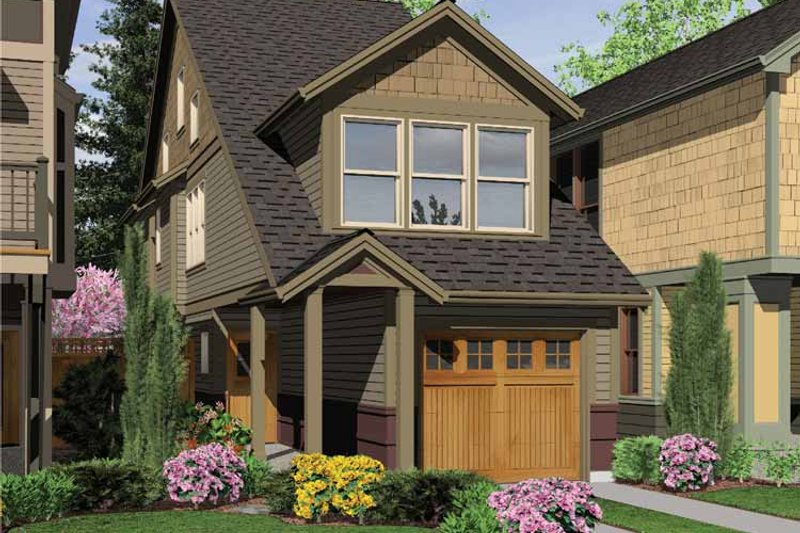

For an in-fill lot, a lake site, or seaside retreat, this plan offers three floors of living and a very narrow footprint to make it conform to your needs. A high-pitched roofline accommodates an enchanting dormer window, and a covered porch screens the setback entry. The lower floor at garage level holds a bedroom with full bath and laundry alcove. Built-ins include a desk and drawers along one wall. Outdoor access leads to convenient storage for lawn equipment and other essentials. The main level upstairs holds a vaulted living room with built-in media center, and L-shaped booth seating for dining, an island kitchen with double-door pantry and display shelves, and the master suite. An outdoor deck lies just beyond the living area. A cozy vaulted study loft is graced by a huge built-in bookshelf.
Floor Plans

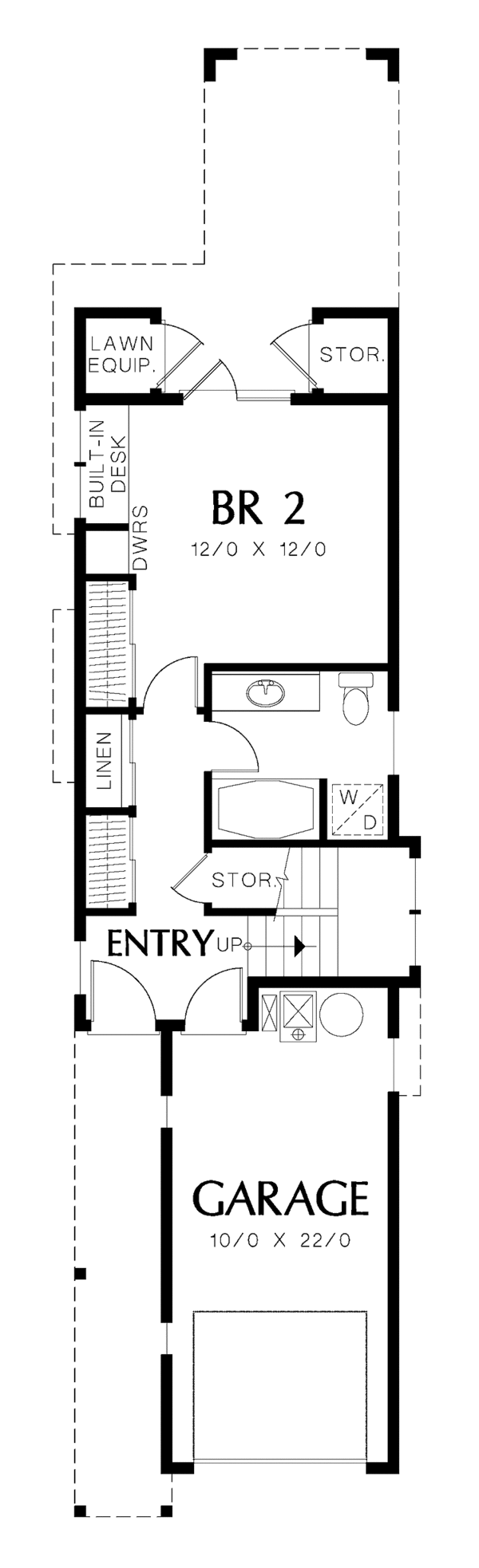

Floor Plan - Main Floor

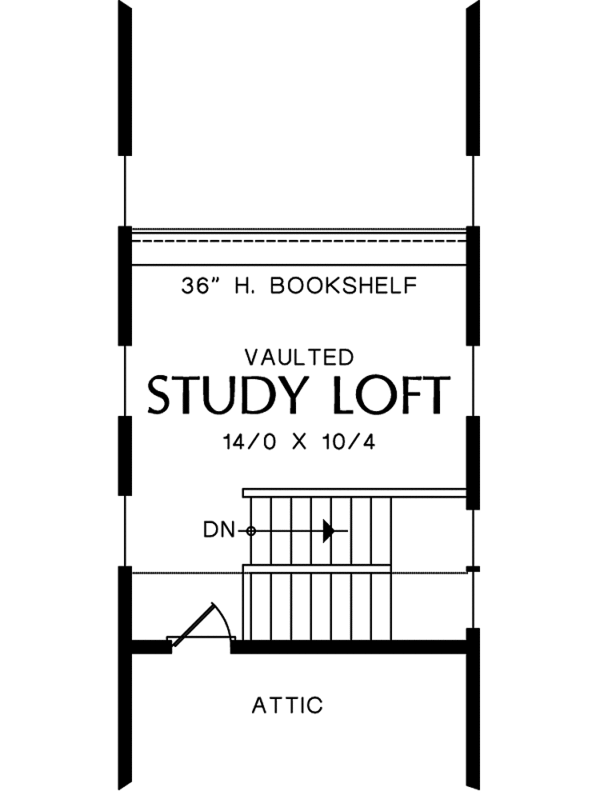

Floor Plan - Upper Floor

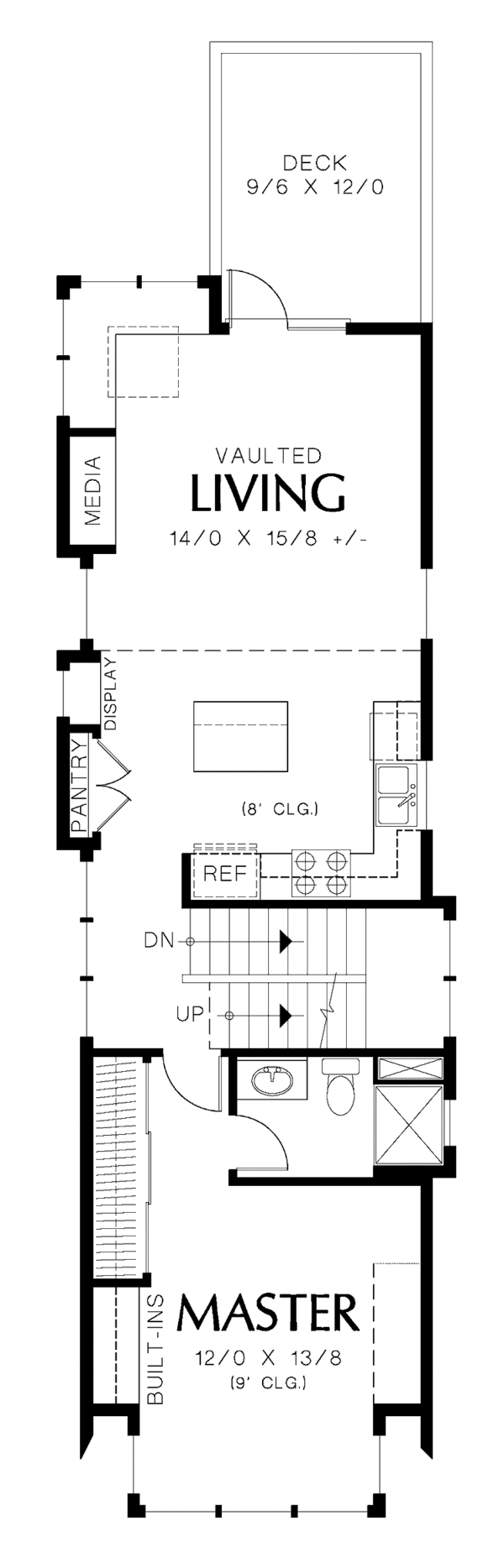

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 54'
Height : 31'
Width : 16'
Area
First Floor: 436 sq/ft height 9'
Second Floor: 792 sq/ft
Third Floor: 202 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Open Floor Plan
Outdoor Spaces
Balcony
Deck
Rooms
Bathroom 2:
62 sq/ft width 8' x depth 7' 10"
Bedroom 2:
177 sq/ft width 14' x depth 12' 8"
Bedroom 2 Closet:
12 sq/ft width 2' x depth 6'
Bedroom 3 Closet:
12 sq/ft width 2' x depth 6'
Coat Closet:
8 sq/ft width 2' x depth 4'
Deck:
114 sq/ft width 9' 6" x depth 12'
Foyer:
28 sq/ft width 7' x depth 4'
Garage:
220 sq/ft width 10' x depth 22'
Gathering Room:
219 sq/ft width 14' x depth 15' 8"
Hall:
42 sq/ft width 3' x depth 14'
Kitchen:
157 sq/ft width 15' x depth 10' 6"
Kitchen Island:
12 sq/ft width 4' x depth 3'
Laundry Room:
11 sq/ft width 3' 8" x depth 3'
Linen Closet:
18 sq/ft width 3' x depth 6'
Loft:
144 sq/ft width 14' x depth 10' 4"
Master Bathroom:
45 sq/ft width 9' x depth 5'
Master Bedroom:
164 sq/ft width 12' x depth 13' 8"
Master Closet:
19 sq/ft width 2' x depth 9' 10"
Storage:
16 sq/ft width 4' x depth 4'
What's Included In This Plan Set
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
-
Foundation Plan
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
-
Floor Plan(s)
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
-
Building Sections
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
-
Roof Plan
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
-
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1167.90
$1167.90
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1422.90
$1422.90
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$2335.80
$2335.80
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$394.40
$394.40
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$212.50
$212.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$51.00
$51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets:
$212.50
$212.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
