Plan Description
This ranch design floor plan is 1446 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

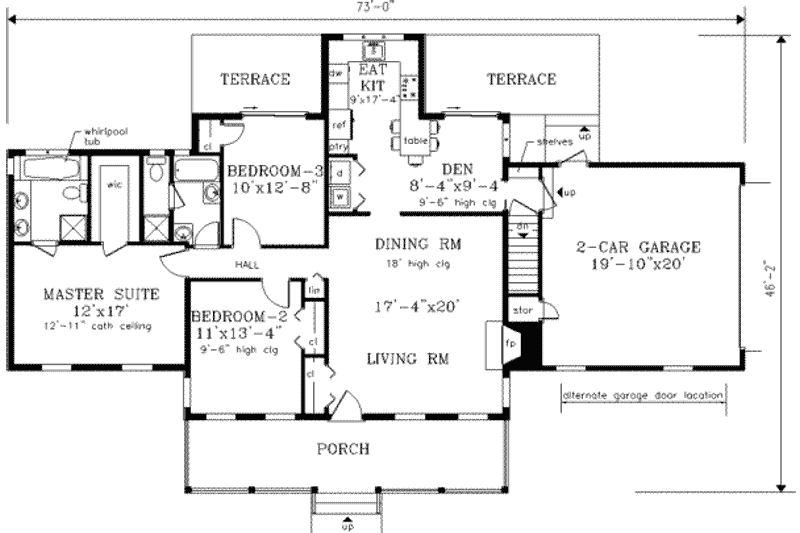

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 47'
Width : 73'
Area
Basement : 1515 sq/ft
Main Floor : 1446 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
What's Included In This Plan Set
Content may vary depending on the size and complexity of the home and the style of the individual designer:
» See important
information before purchasing.
- Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
- Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pole, pier, or slab foundation. All necessary notations and dimensions are included.
- Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item.
- Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a separate diagram.
- Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
- Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.
- General Specifications: provide general instructions and information regarding structure, excavating and grading, masonry and concrete work, carpentry and wood, thermal and moisture protection, and specifications about drywall, tile, flooring, glazing, caulking and sealants.
