This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Depth : 47'
Height : 17'
Width : 31'
First Floor: 1446 sq/ft
Main Ceiling : 9'
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Walk In Closet
Suited For Narrow Lot
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.

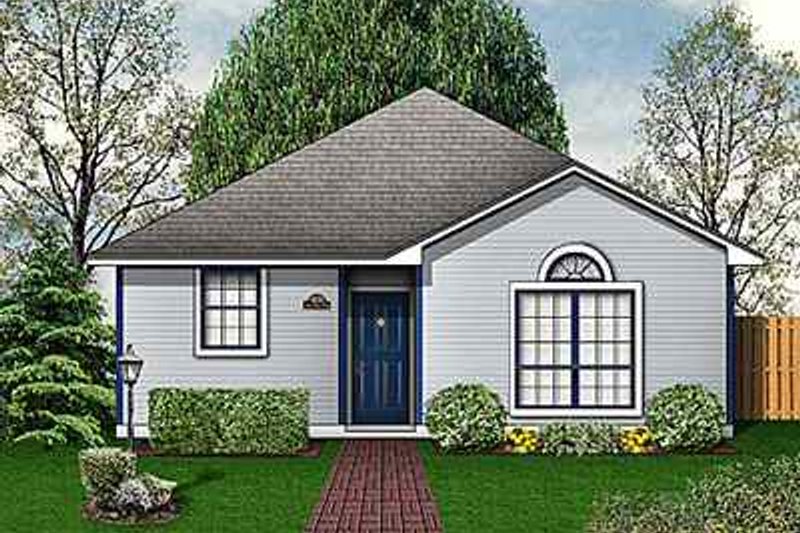

- FRONT RENDERING: 1/4" Scale

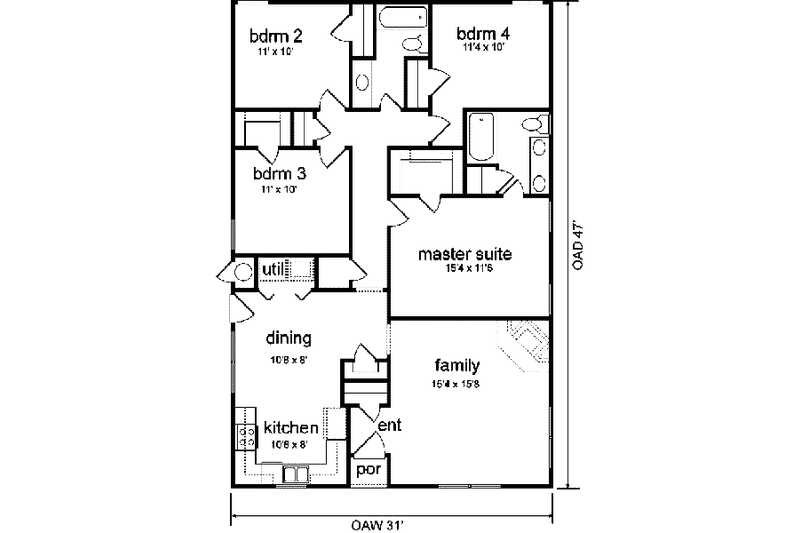

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

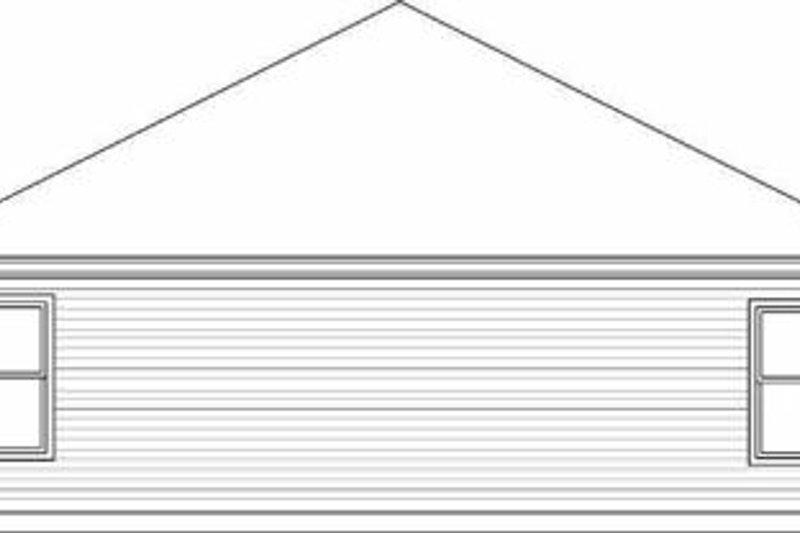

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
