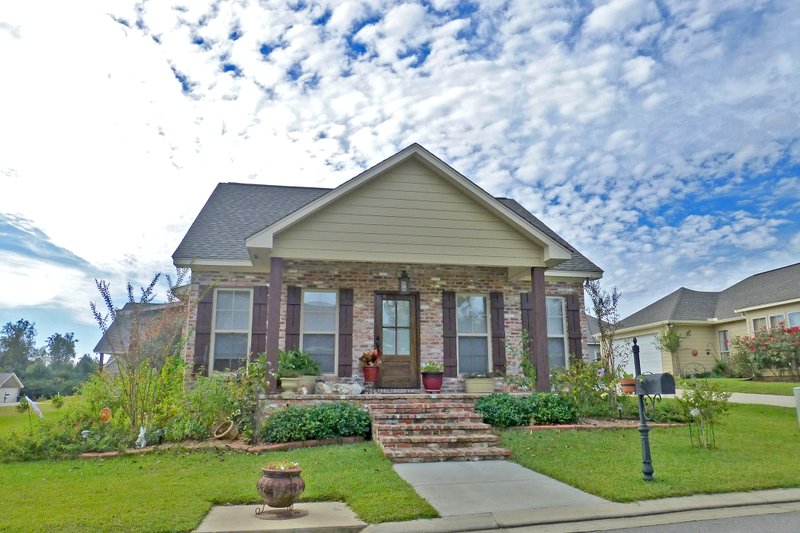

Photographs may show modified designs.

Select Plan Set Options
What's included?
Additional Construction Sets
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Need an answer fast? Call us at 1-800-447-0027

We do our best to get back within 24 - 48 business hours.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #430-106

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This charming 3 bedroom cottage has an amazing rear porch perfect for relaxing evenings. The open layout has a large great room and spacious kitchen.The private master suite has a lovely bath and large walk-in closet. The rear porch has the potential for optional wood burning fireplace and additional patio. Not only is this plan full of unique features, it's also economical to build.

Floor Plans

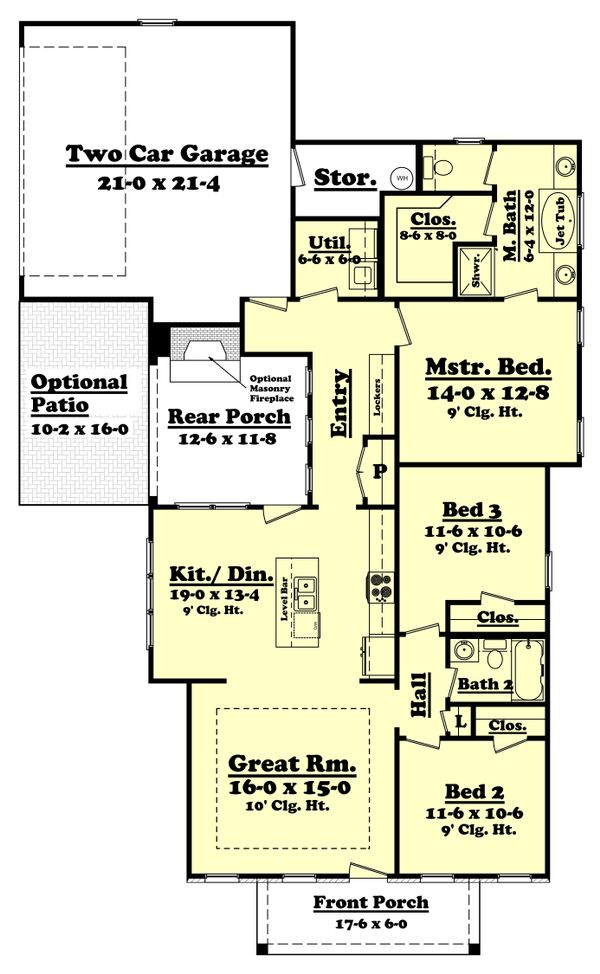

Floor Plan - Main Floor Plan
Cottage Floor Plan - Main Floor Plan Plan #430-106

Full Specs & Features

Depth : 73' 4"
Height : 20' 4"
Width : 44' 2"
First Floor: 1475 sq/ft height 9'
Garage: 485 sq/ft
Main Ceiling : 9'
Roof Framing : stick
Roof Load : 40
Primary Pitch : 8:12
Secondary Pitch : 6:12
Roof Type : shingles
Exterior Wall Framing
Exterior Wall Finish : brick/ siding
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Main Floor Laundry
Storage Area
Garage Features
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Economical To Build

Bedroom 2:

121 sq/ft width 11' 6" x depth 10' 6"

Bedroom 3:

121 sq/ft width 11' 6" x depth 10' 6"

Covered Front Porch:

105 sq/ft width 17' 6" x depth 6'

Covered Rear Porch:

163 sq/ft width 12' 6" x depth 11' 8"


485 sq/ft width 21' x depth 21' 4"

Great Room:

240 sq/ft width 16' x depth 15'

Kitchen/ Dining Room:

253 sq/ft width 19' x depth 13' 4"

Master Bath:

76 sq/ft width 6' 4" x depth 12'

Master Bedroom:

177 sq/ft width 14' x depth 12' 8"

Master Closet:

68 sq/ft width 8' 6" x depth 8'

Optional Patio:

163 sq/ft width 10' 2" x depth 16'


39 sq/ft width 6' 6" x depth 6'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
