Key Specs
1479
sq ft
3
Beds
2
Baths
2
Floors
0
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 140-173
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 38'
Height : 27'
Width : 46'
Area
Basement Unfinished: 911 sq/ft height 8'

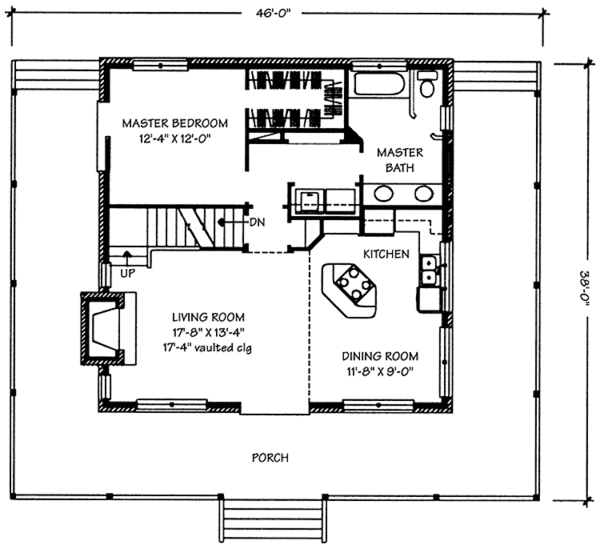

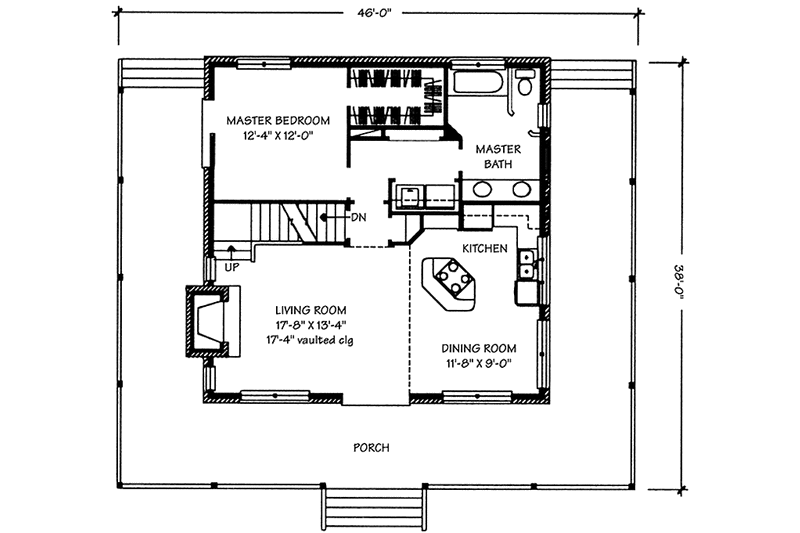

First Floor: 911 sq/ft height 8'

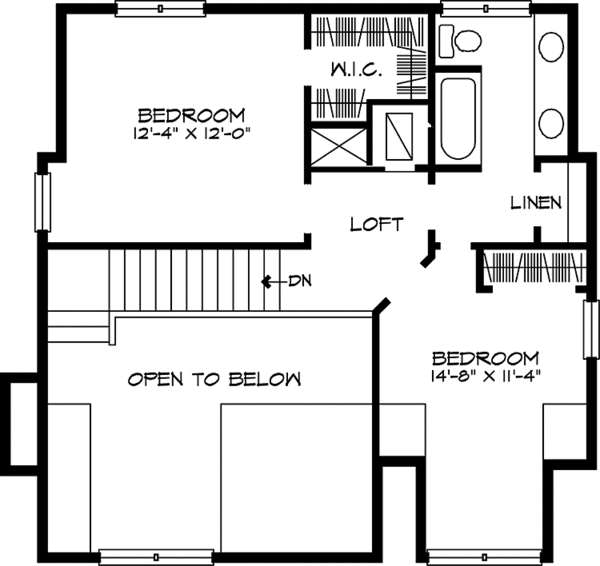

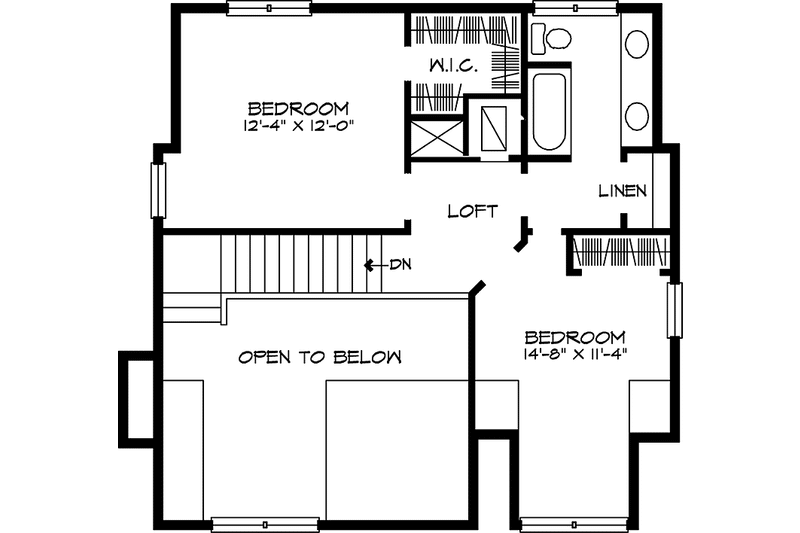

Second Floor: 568 sq/ft height 8'
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Loft
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bedroom 2:
166 sq/ft width 14' 8" x depth 11' 4"
Bedroom 3:
147 sq/ft width 12' 4" x depth 12'
Dining Room:
105 sq/ft width 11' 8" x depth 9'
Kitchen:
105 sq/ft width 11' 8" x depth 9'
Living Room:
235 sq/ft width 17' 8" x depth 13' 4"
Master Bathroom:
108 sq/ft width 9' x depth 12'
Master Bedroom:
147 sq/ft width 12' 4" x depth 12'
Porch - Wraparound:
width 46' x depth 8'
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
- Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

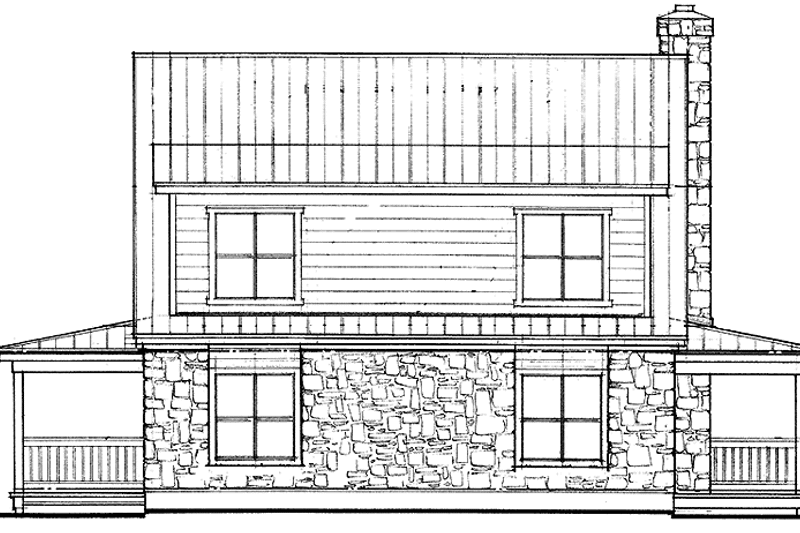

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Interior Elevations: Cabinet and millwork details.
- Overhead Roof Plan(s): Overhead plan shows peaks, valleys and roof pitch
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$476.00
$550.80
$653.65
$850.00
$428.40
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$34.00
$140.25
$250.75
$33.15
$140.25
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
