Key Specs


1481
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Main Floor Plan

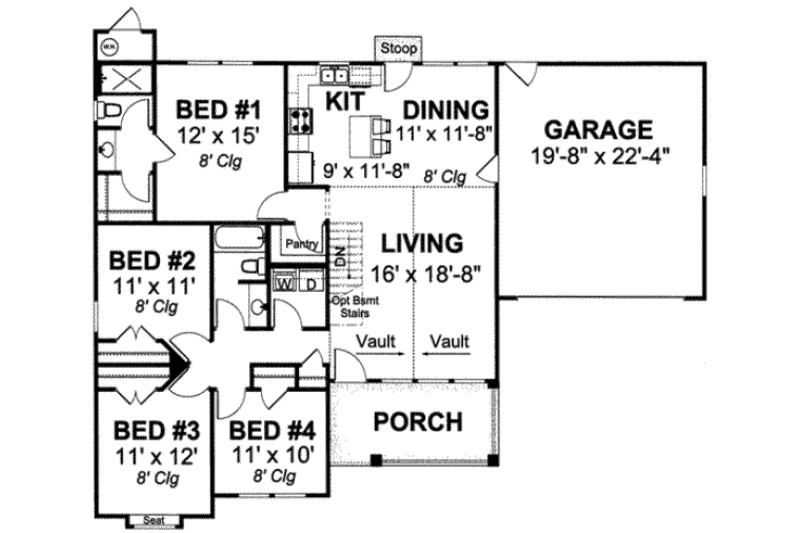

Craftsman Floor Plan - Main Floor Plan Plan #20-1884

Full Specs & Features


Dimension
Depth : 47'
Height : 19'
Width : 59'
Area
First Floor: 1481 sq/ft
Garage: 460 sq/ft
Porch: 131 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Front Porch
Rooms

Bathroom 2:

49 sq/ft width 9' 8" x depth 5' 2"

Bedroom 1:

180 sq/ft width 12' x depth 15'

Bedroom 2:

121 sq/ft width 11' x depth 11'

Bedroom 3:

132 sq/ft width 11' x depth 12'

Bedroom 4:

110 sq/ft width 11' x depth 10'

Dining Room:

128 sq/ft width 11' x depth 11' 8"

Garage:

439 sq/ft width 19' 8" x depth 22' 4"

Kitchen:

105 sq/ft width 9' x depth 11' 8"

Kitchen Island:

12 sq/ft width 4' x depth 3'

Living Room:

298 sq/ft width 16' x depth 18' 8"

Master Bathroom:

56 sq/ft width 5' 6" x depth 10' 4"

Master Closet:

24 sq/ft width 5' 6" x depth 4' 6"

Pantry:

20 sq/ft width 5' 4" x depth 3' 10"

Utility Room:

30 sq/ft width 5' 4" x depth 5' 8"

What's Included In This Plan Set


  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
