Plan Description

This cottage design floor plan is 1491 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

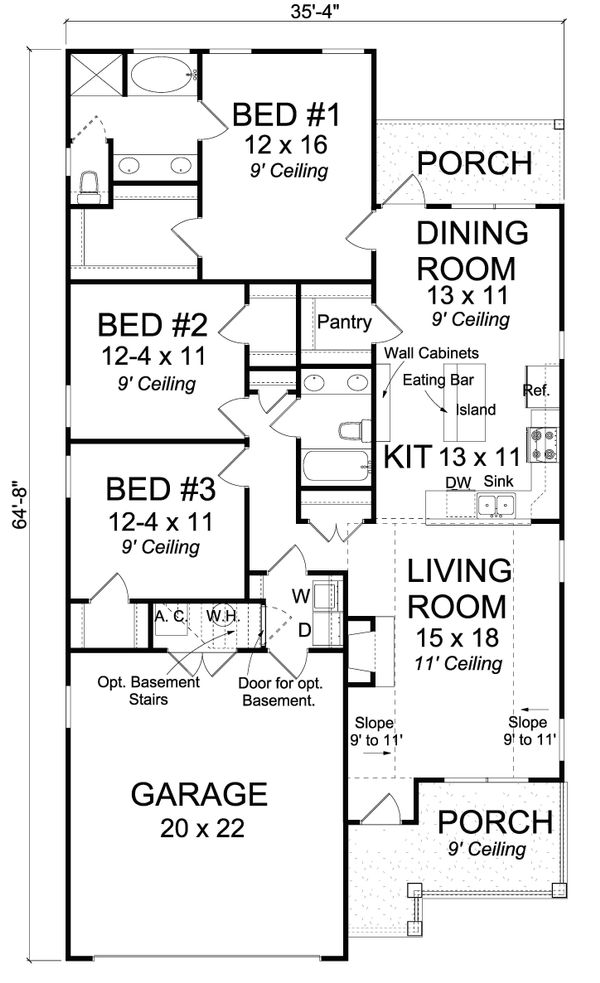

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 64' 8"

Height : 22'

Width : 35' 4"

Area

First Floor: 1491 sq/ft height 9'

Garage: 468 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2x6

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

width 5' x depth 8' 4"

Bedroom 2:

width 12' 4" x depth 11'

Bedroom 3:

width 12' 4" x depth 11'

Dining Room:

width 13' x depth 11'

Foyer:

width 5' x depth 3'

Garage:

468 sq/ft width 1' 8" x depth 1' 10"

Kitchen:

width 13' x depth 11'

Kitchen Island:

width 5' x depth 6' 3"

Living Room:

width 15' x depth 18'

Master Bathroom:

width 9' 2" x depth 9'

Master Bedroom:

width 12' x depth 16'

Master Closet:

width 9' 2" x depth 6' 8"

Pantry:

width 5' x depth 5' 8"

Porch Front:

121 sq/ft

Porch Rear:

80 sq/ft

Utility Room:

width 5' 6" x depth 5' 2"

What's Included In This Plan Set
