PLAN #124-747

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Charm, simplicity, and economy all come together in this Craftsman-style cottage. Window-bright gathering space encompasses living room, dining room, and kitchen. Owners? suite has deep walk-in closet, plus bathroom with private toilet cubicle

Floor Plans

Floor Plan - Main Floor Plan

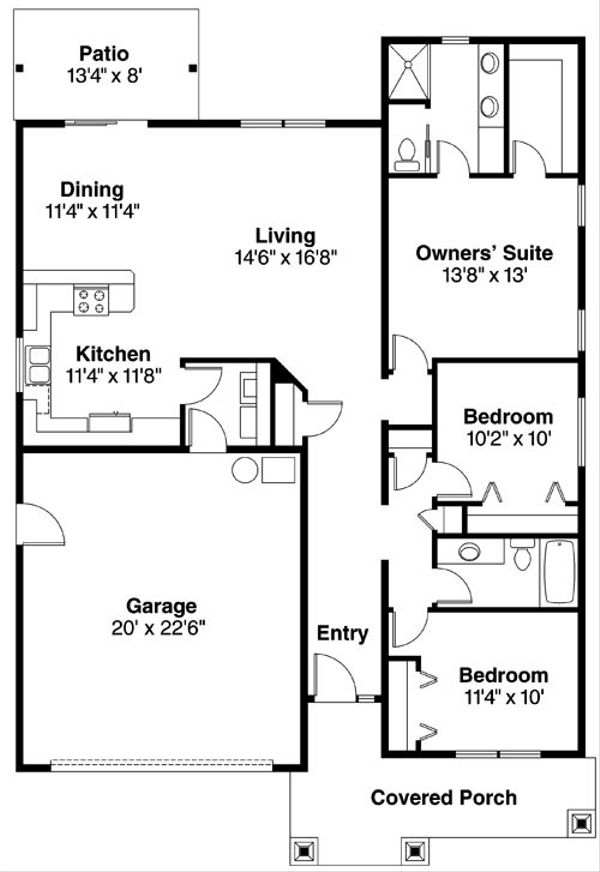

Craftsman Floor Plan - Main Floor Plan Plan #124-747

Full Specs & Features

Depth : 59'
Height : 22'
Width : 41'
First Floor: 1500 sq/ft height 9'
Garage: 474 sq/ft height 9'
Main Ceiling : 9'
Roof Framing : 2x6
Roof Load : 25
Primary Pitch : 6:12
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding/Shingle
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Mud Room
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Economical To Build
Empty Nester
Suited For Vacation Home
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural Roof Framing

Bedroom 2:

113 sq/ft width 11' 4" x depth 10'

Bedroom 3:

101 sq/ft width 10' 2" x depth 10'

Dining Room:

128 sq/ft width 11' 4" x depth 11' 4"


450 sq/ft width 20' x depth 22' 6"


132 sq/ft width 11' 4" x depth 11' 8"

Living Room:

241 sq/ft width 14' 6" x depth 16' 8"

Master Suite:

177 sq/ft width 13' 8" x depth 13'


106 sq/ft width 13' 4" x depth 8'

What's Included In This Plan Set

Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
