PLAN 455-272
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

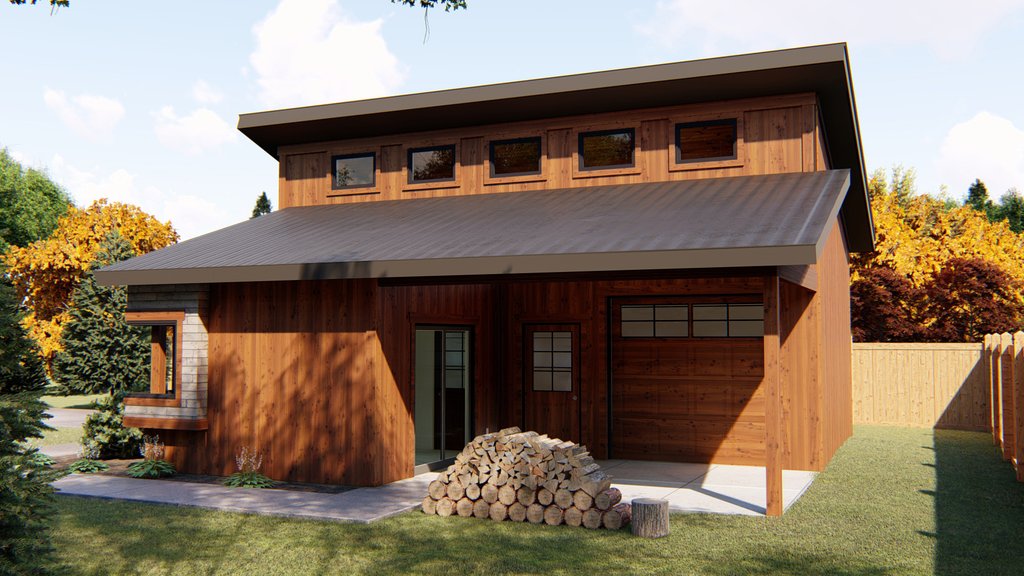

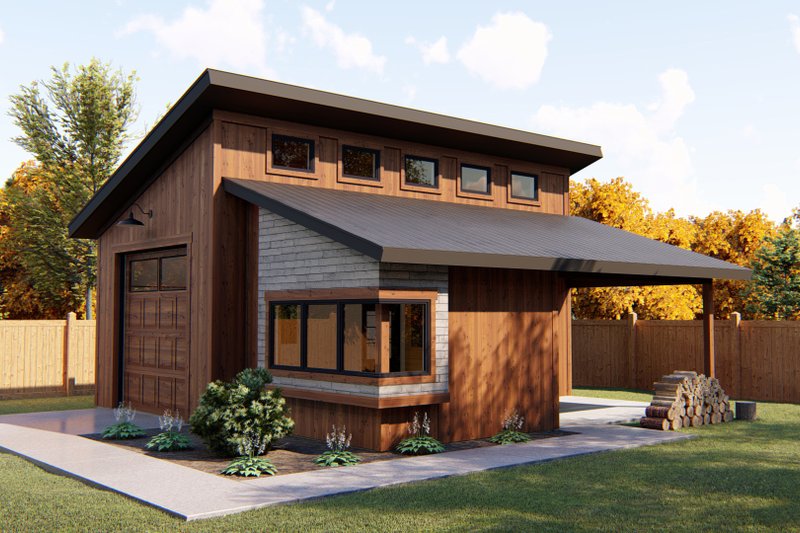

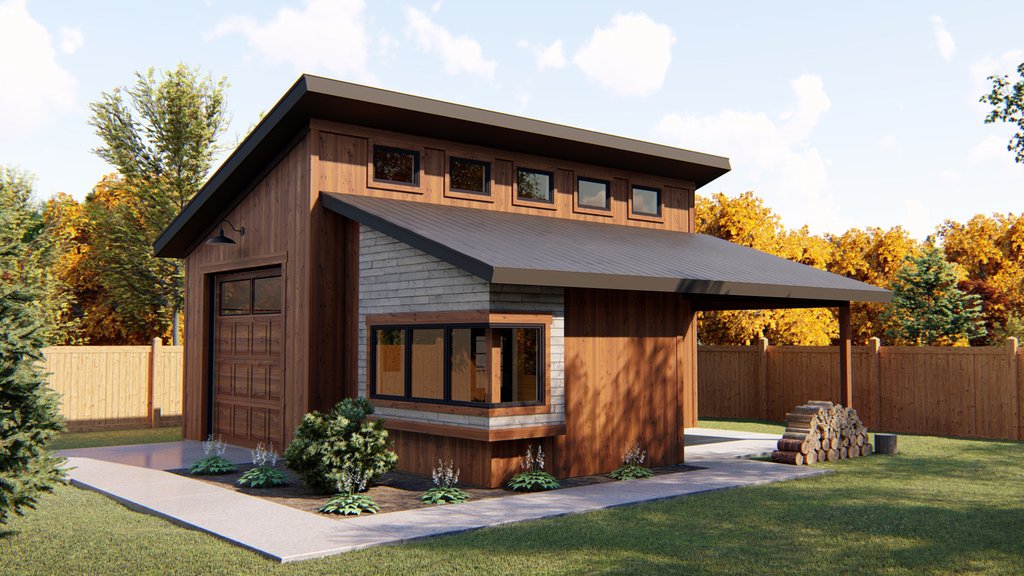

The Kimmons is a modern rustic style garage with a workshop. It's a perfect hobby garage with 10'x10' door and plenty of space to store and work on boats, vintage cars, and more! The workshop space is designed for smaller projects with cabinets and counter space. The room features a boxed out corner window which allows for additional counter space and modern appeal. This plan is designed to be functional and beautiful - a garage one could spend all day in! The garage ceiling slopes with the roof, with a bank of clerestory windows to bring in lots of light. There is a secondary garage door to really open up the space to let in some fresh air, to work outside when you just need some extra space, or even to relax or throw a party under the covered patio. The workshop walls are 9'. The garage walls start at 12' and slope up to a maximum wall height of about 17'-4".
Floor Plans

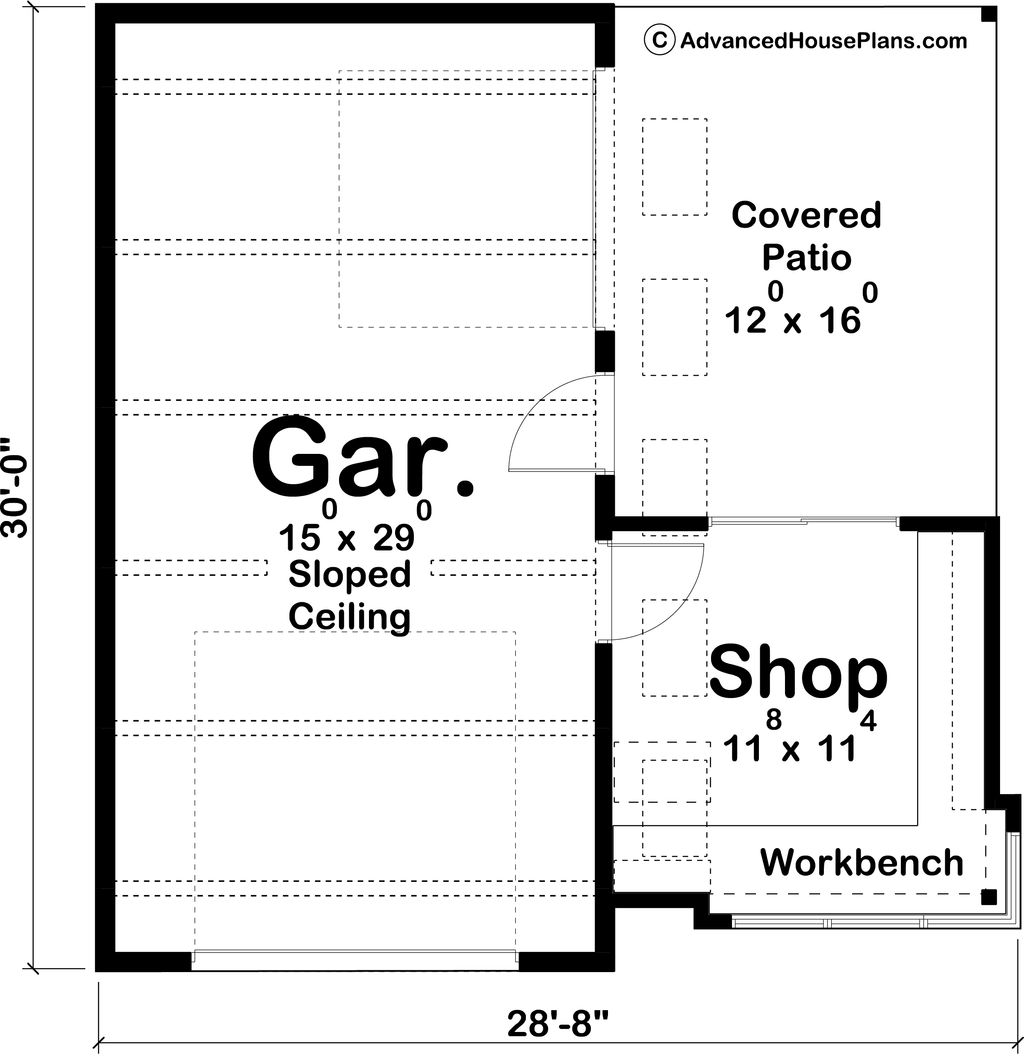

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 30'
Height : 18' 10"
Width : 28' 8"
Area
Garage : 480 sq/ft
Main Floor : 153 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The boat garage has a sloped ceiling.
Garage Ceiling : 12'
Main Ceiling : 9'
Roof
Primary Pitch : 4/12
Roof Framing : Stick
Exterior Wall Framing
Framing : 2x4
Additional Room Features
Workshop
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Rear Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$399.00
$399.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$698.00
$698.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
5 Copy and PDF Set:
$794.00
$794.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$1697.00
$1697.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$299.00
$299.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$299.00
$299.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$59.00
$59.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$299.00
$299.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
