PLAN #72-1045

Key Specs


1533
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Here is a ranch home that offers a floor plan of convenience and simplicity. The master bedroom features a walk-in closet and a private bath. Secondary bedrooms share a full bath. The dining room is open to the great room and connects to the L-shaped kitchen with breakfast nook. Options for enhanced livability include a rear deck with a railing and a fireplace in the great room.<P/><BR/>

Floor Plans

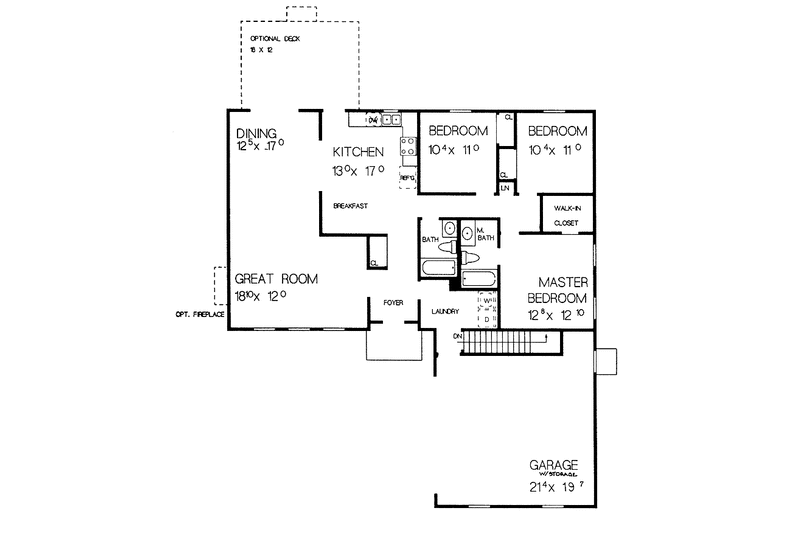

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #72-1045

Full Specs & Features


Dimension
Depth : 54'
Height : 18'
Width : 50'
Area
First Floor: 1533 sq/ft height 8'
Bedroom Features
Fireplace
Formal Living Room / Parlor
Additional Room Features
Great Room Living Room

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
