PLAN 1053-63
Key Specs
1536
sq ft
3
Beds
2.5
Baths
2
Floors
1
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 1053-63
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
This design was developed for smaller lots and ease of construction.
Full Specs & Features
Dimension
Depth : 40'
Height : 28' 4"
Width : 40'
Height : 28' 4"
Width : 40'
Area
Basement Unfinished: 694 sq/ft
First Floor: 768 sq/ft height 9'
Garage: 302 sq/ft
Second Floor: 768 sq/ft height 8'
First Floor: 768 sq/ft height 9'
Garage: 302 sq/ft
Second Floor: 768 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 6:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Open Floor Plan
Upstairs Laundry
Open Floor Plan
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
120 sq/ft width 10' x depth 12'
Bedroom 3:
120 sq/ft width 10' x depth 12'
Covered Front Porch:
160 sq/ft
Garage:
210 sq/ft width 10' x depth 21'
Garage Storage:
92 sq/ft
Great Room:
210 sq/ft width 14' x depth 15'
Living/Dining Room:
216 sq/ft width 18' x depth 12'
Optional Rear Deck:
160 sq/ft width 20' x depth 8'
Owner's Suite:
180 sq/ft width 15' x depth 12'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

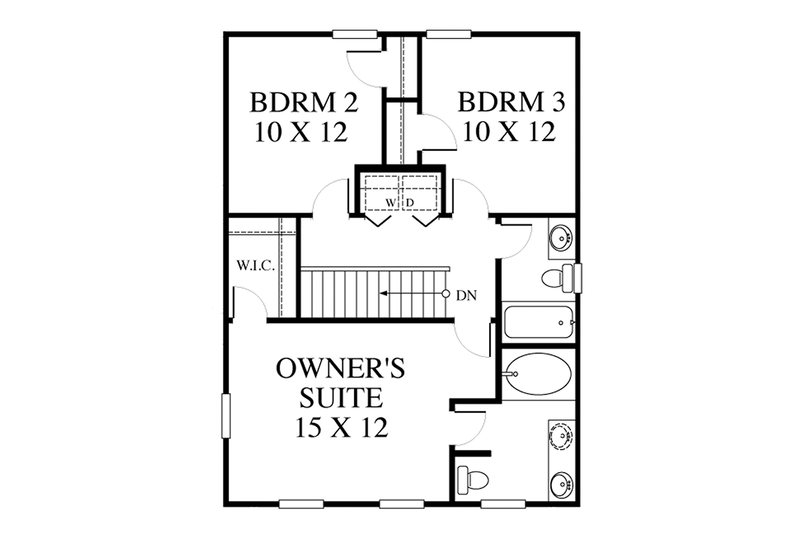

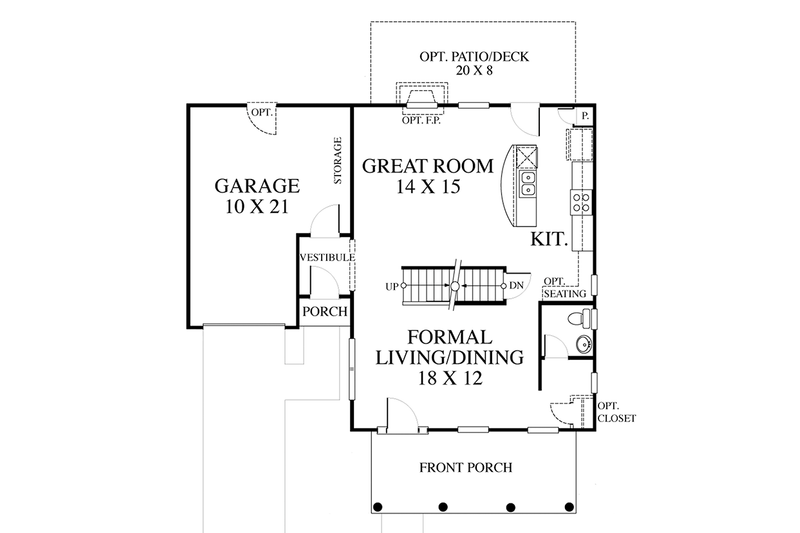

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $840.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $945.00 |
5 printed plan sets mailed to you. |
| Reproducible Set : $1050.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| Single Set : $735.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $175.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
Other Plans By this Designer
Browse Similar Plans
