PLAN #25-4294

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This modern and elegant two-storey house is 39 feet 10 inches wide by 33 feet deep and provides 2,163 square feet of living space, in addition to a 336 square foot one-car garage with access to the backyard.
 The 786 square foot ground floor includes a two-sided fireplace that divides the open living and dining area, a kitchen with an island and a large pantry, and a powder room with a laundry area.
 The upper floor has 759 square feet of living space and features three bedrooms, including a spacious master bedroom with a large walk-in closet and large windows, and a bathroom.

Floor Plans

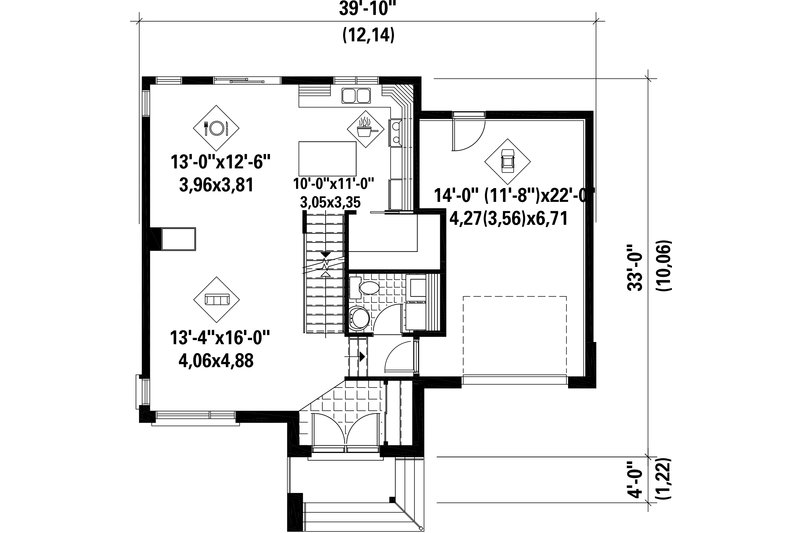

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #25-4294

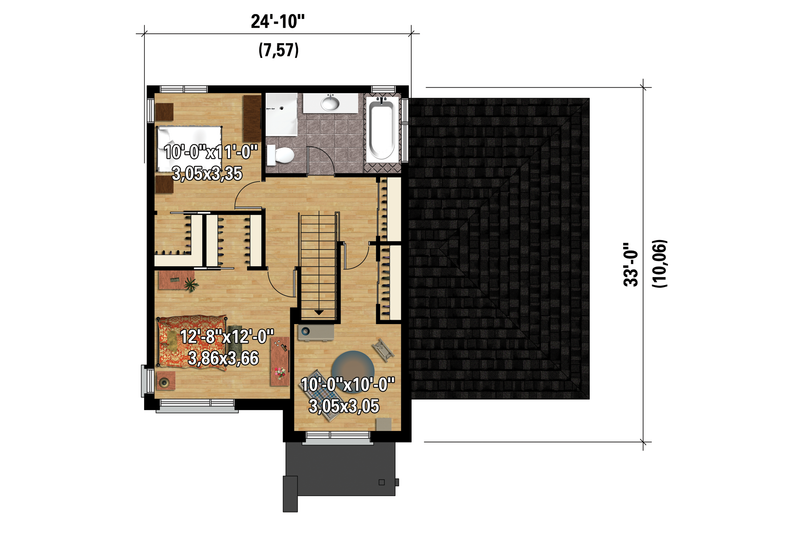

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #25-4294

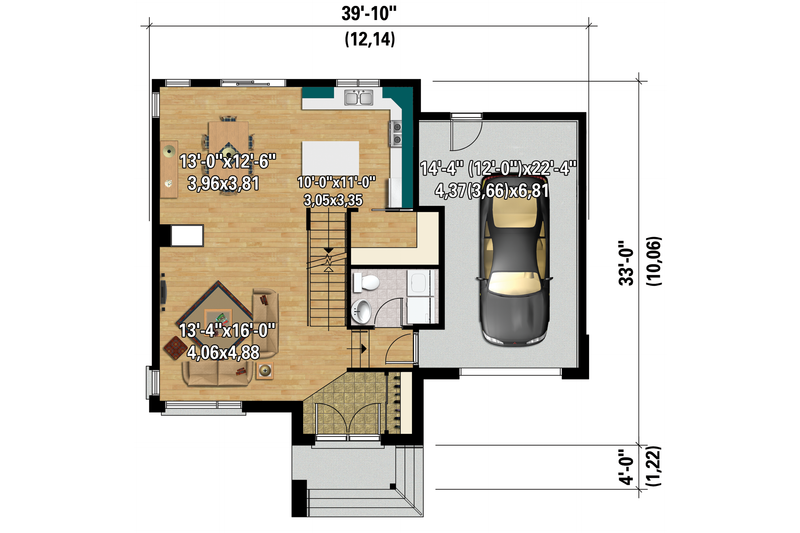

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #25-4294

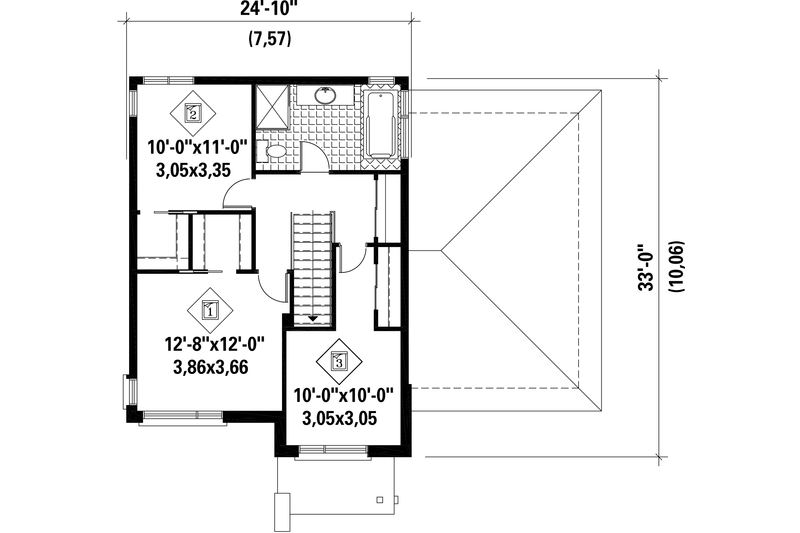

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #25-4294

Full Specs & Features

Depth : 33'
Height : 27' 11"
Width : 39' 10"
First Floor: 786 sq/ft height 8'
Garage: 336 sq/ft
Second Floor: 759 sq/ft height 8'
Main Ceiling : 8'
Roof Framing : Truss
Roof Load : 50
Primary Pitch : 6/12
Secondary Pitch : 6/12
Exterior Wall Framing
Insulation : R20
Exterior Wall Finish : Brick Siding
Framing : Wood - 2 x 6

What's Included In This Plan Set

  • Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
  • Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
  • Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
  • Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
