PLAN 513-15

Home > Style > Traditional House Plans

Key Specs

1545
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 1545 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

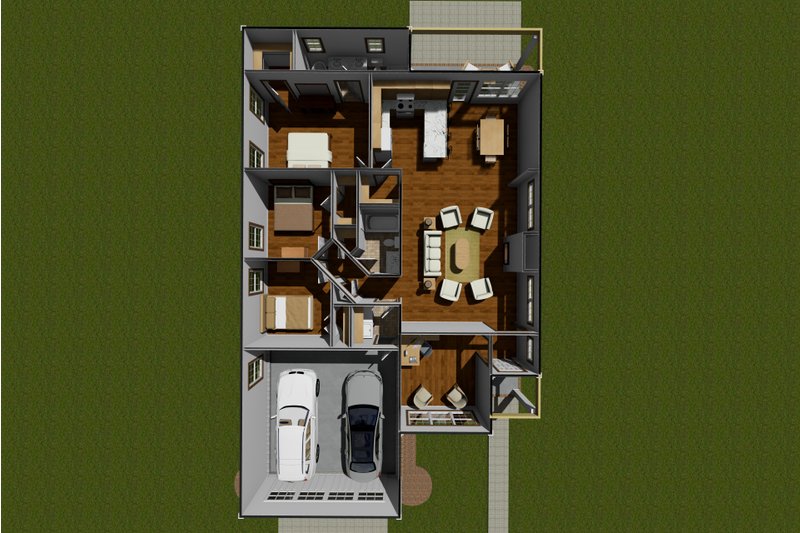

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 61'

Height : 23'

Width : 37' 4"

Area

First Floor: 1545 sq/ft

Garage: 420 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 30

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x4"

Bedroom Features

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

44 sq/ft width 5' x depth 8' 10"

Bedroom 1:

186 sq/ft width 15' 6" x depth 12'

Bedroom 2:

121 sq/ft width 11' x depth 11'

Bedroom 3:

121 sq/ft width 11' x depth 11'

Dining Room:

132 sq/ft width 11' x depth 12'

Garage:

420 sq/ft width 20' x depth 21'

Kitchen:

120 sq/ft width 10' x depth 12'

Living Room:

340 sq/ft width 17' x depth 20'

Master Bathroom:

72 sq/ft width 14' 6" x depth 5'

Master Closet:

35 sq/ft width 6' 6" x depth 5' 6"

Pantry:

23 sq/ft width 5' 4" x depth 4' 4"

Study:

132 sq/ft width 11' x depth 12'

Utility Room:

33 sq/ft width 6' 2" x depth 5' 6"

What's Included In This Plan Set

See a sample plan set

Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
Interior Elevations: Kitchen cabinet elevations are drawn.
Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.

Questions? Call 1-800-447-0027

Plan Set

PDF Unlimited Build:
$965.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$1260.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$195.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$195.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$195.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
