PLAN #118-127

Key Specs


1546
sq ft

0
Beds

0.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


The RV garage portion of this combination garage has a fourteen foot high ceiling accessed though a twelve foot high by twelve foot wide overhead door. The double car garage has a nine foot high ceiling with an eight foot high by sixteen foot wide overhead door. The covered entry opens into the workshop and boasts a half bath and coats closet. Slide the entry door over to allow space for a shower in the bathroom if desirable. The conveniently located workshop provides access to both garage areas while still being its own separate heated area if required. Plans are designed with a concrete slab foundation plan.

Floor Plans

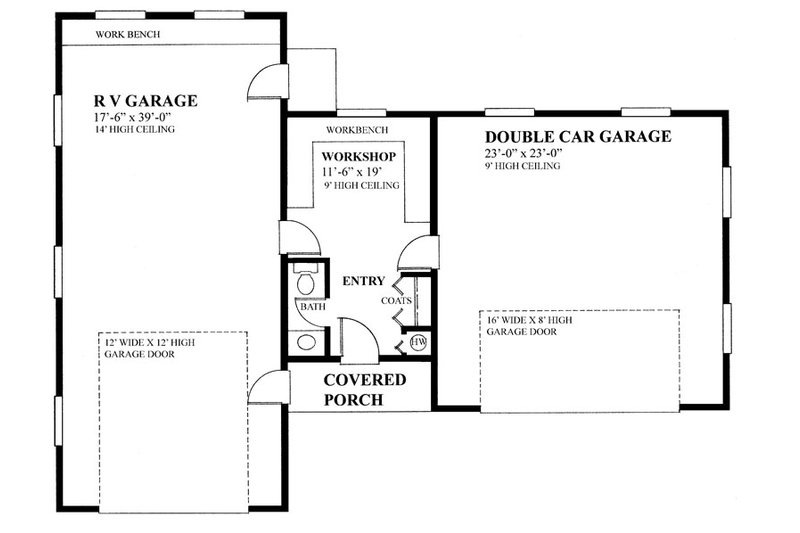

Floor Plan - Main Floor Plan
Cottage Floor Plan - Main Floor Plan Plan #118-127

Full Specs & Features


Dimension
Depth : 40'
Height : 21'
Width : 54'
Area
First Floor: 230 sq/ft
Garage: 740 sq/ft height 21'
Garage: 576 sq/ft height 21'
Porch: 46 sq/ft
Ceiling
Garage Ceiling : 9'
Main Ceiling : 0"
Roof
Roof Framing : Trusses
Roof Load : total roof design load 47 psf
Primary Pitch : 8:12
Roof Type : Metal
Exterior Wall Framing
Insulation : R34 roof R20 walls
Exterior Wall Finish : Horizontal Siding
Framing : 2x6
Additional Room Features
Workshop
Garage Features
RV Garage
Detached Garage
Front Entry Garage
Oversized Garage
Split Garage
Tandem Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Unusual Shape
Rooms

Garage:

740 sq/ft width 23' x depth 23'

Garage 2:

576 sq/ft width 17' 6" x depth 39'

Workshop:

width 11' 6" x depth 19'

What's Included In This Plan Set


  • Cover sheet with rendering and art floor plans
  • General notes and specifications
  • Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
  • Foundation plan at 1/4″=1′-0″
  • Main floor plan at 1/4″=1′-0″
  • Second floor plan at 1/4″=1′-0″, if applicable
  • Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
  • Electrical floor plans
  • Minimum of two cross sections at 1/4″=1′-0″
  • Details as required
  • All four elevations at 1/4″=1′-0″
  • Generic detail sheet
  • Plans are engineered by a structural engineer, but not stamped or sealed
  • Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
  • Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
  • Assumed soil bearing capacity 1560 psf
  • Electrical fixtures / switches / smoke alarms by location only on floor plans
  • Plumbing fixtures by location only on floor plans
  • Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
» See important information before purchasing.

Plan Set

5 Copy Set :
$325.00
5 printed plan sets mailed to you.
8 Copy Set :
$375.00
8 printed plan sets mailed to you.
PDF Set :
$475.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$475.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$250.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Material List :
55.00
A list of building supplies needed to construct the infrastructure of your new house.
Additional Construction Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.
