PLAN #20-1514

Key Specs

1560
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Floor Plans

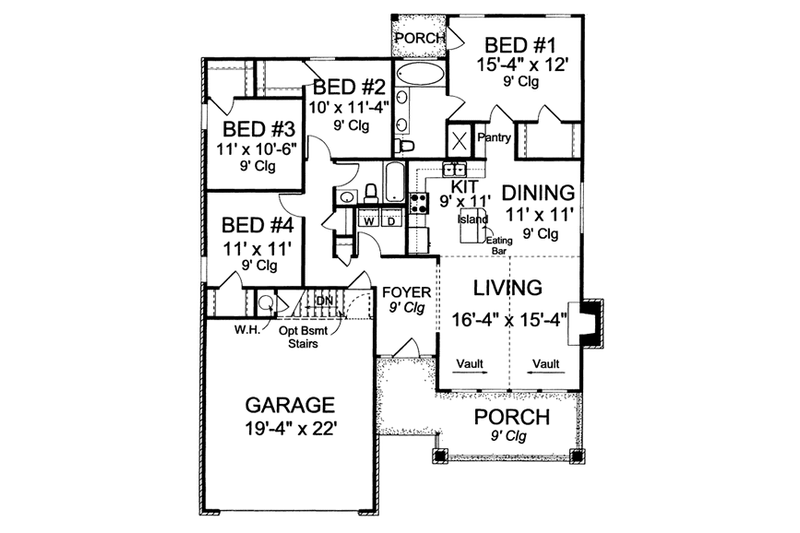

Floor Plan - Main Floor Plan

Full Specs & Features

Dimension

Depth : 58'
Height : 21'
Width : 44'

Area

First Floor: 1560 sq/ft height 9'
Garage: 498 sq/ft

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2"x4"

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Great Room Living Room

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bathroom 2:

40 sq/ft width 8' x depth 5'

Bedroom 2:

113 sq/ft width 10' x depth 11' 4"

Bedroom 3:

115 sq/ft width 11' x depth 10' 6"

Bedroom 4:

121 sq/ft width 11' x depth 11'

Dining Room:

121 sq/ft width 11' x depth 11'

Foyer:

793 sq/ft width 70' x depth 11' 4"

Garage:

425 sq/ft width 19' 4" x depth 22'

Kitchen:

99 sq/ft width 9' x depth 11'

Kitchen Island:

12 sq/ft width 3' x depth 4'

Living Room:

250 sq/ft width 16' 4" x depth 15' 4"

Master Bathroom:

67 sq/ft width 6' x depth 11' 4"

Master Bedroom:

123 sq/ft width 10' 4" x depth 12'

Master Closet:

29 sq/ft width 7' 4" x depth 4'

Pantry:

5 sq/ft width 4' x depth 1' 4"

Utility Room:

30 sq/ft width 5' 8" x depth 5' 4"

What's Included In This Plan Set

Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
Interior Elevations: Kitchen cabinet elevations are drawn.
Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.

» See important information before purchasing.

Plan Set

PDF Set : $865.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $1115.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $150.00	Ideal for level lot, lower level of home partially or fully underground.
Crawlspace: $150.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Additional Construction Sets : 50.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Material List : 50.00	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : 0.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse : 150.00	Choose this option to reverse your plans and to have the text and dimensions readable.
