PLAN 430-96

Key Specs


1569
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

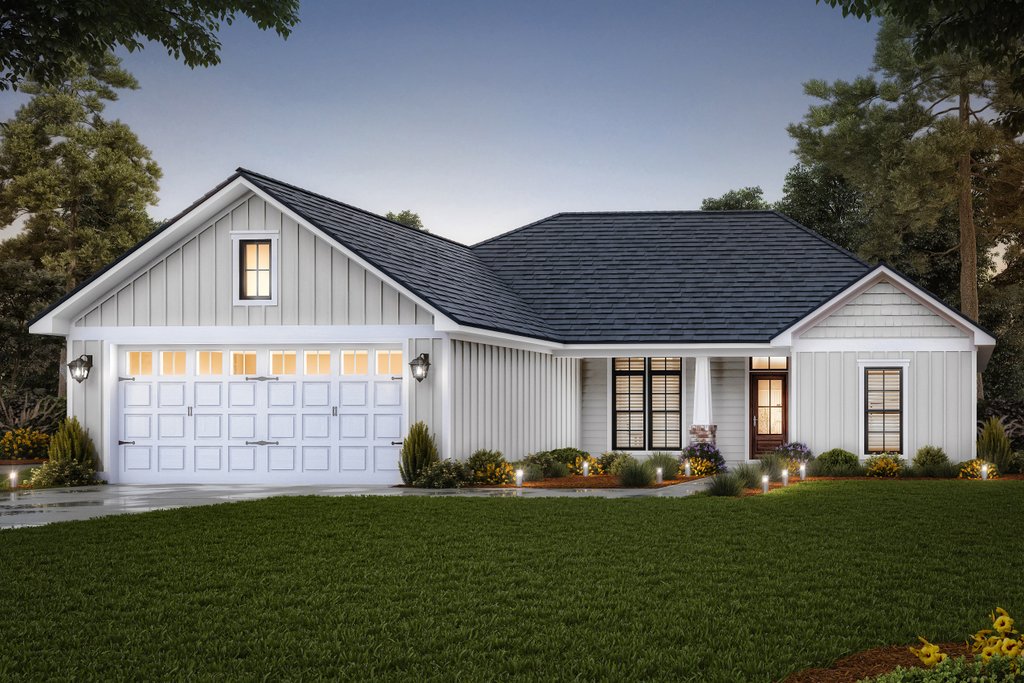

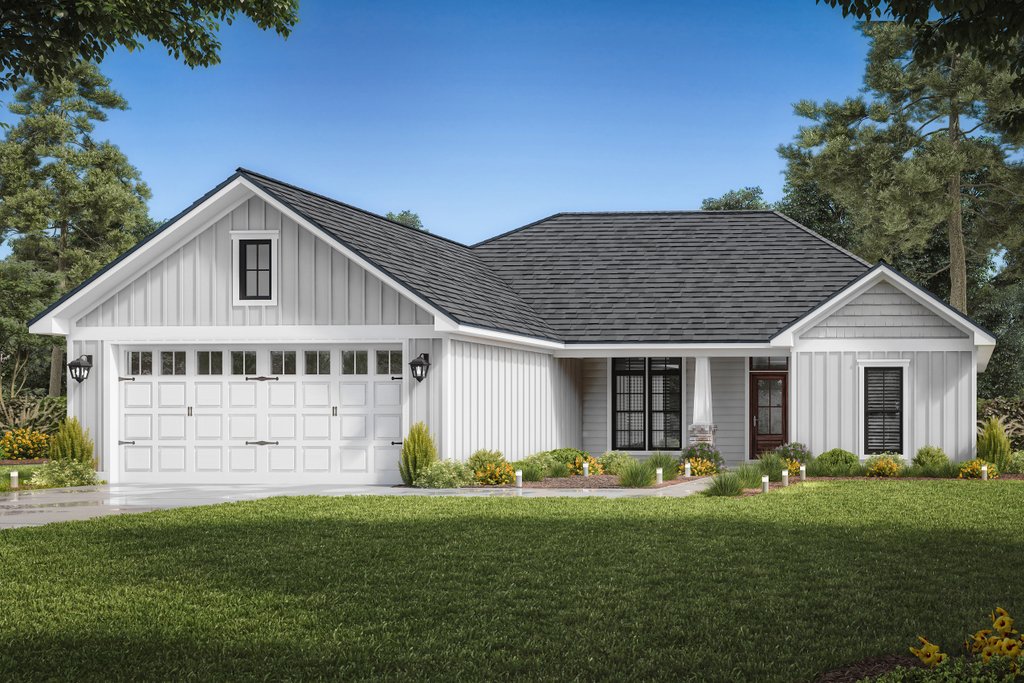

This ranch style plan with Craftsman style accents has an open layout with split bedrooms. Features include a large kitchen with island, raised ceilings, lockers in the mud room and an over-sized great room with views to the rear. With all these features and many more amenities, this plan could be the one for you.

Floor Plans


Floor Plan - Main Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 57'
Height : 21'
Width : 57' 2"
Area
First Floor: 1569 sq/ft height 9'
Garage: 514 sq/ft
Storage: 43 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : stick
Roof Load : 40
Roof Type : shingles
Exterior Wall Framing
Exterior Wall Finish : siding/ brick
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Covered Front Porch:

105 sq/ft width 17' 6" x depth 6'

Covered Rear Porch:

125 sq/ft width 16' 4" x depth 7' 8"

Dining Area:

108 sq/ft width 10' 2" x depth 10' 8"

Garage:

514 sq/ft width 22' 4" x depth 22'

Great Room:

327 sq/ft width 16' 4" x depth 20'

Kitchen:

137 sq/ft width 10' 2" x depth 13' 6"

Master Closet:

44 sq/ft width 7' x depth 6' 4"

Master Bath:

124 sq/ft width 9' 4" x depth 13' 4"

Master Bedroom:

184 sq/ft width 13' x depth 14' 2"

Mud Entry:

55 sq/ft width 10' 8" x depth 5' 2"

Optional Patio:

290 sq/ft width 29' x depth 10'

Storage:

43 sq/ft width 3' 8" x depth 10'

Utility Room:

51 sq/ft width 8' 8" x depth 5' 10"

What's Included In This Plan Set


See a sample plan set Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
  • Cover Sheet – May include index, front view of home, definitions, etc.
  • Foundation Plan – Typically includes dimensioned foundation plan with footing details.
  • Dimensioned Floor Plan – Electrical may be shown.
  • Exterior Views – Four exterior views of the residence with other miscellaneous details.
  • Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
  • Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
  • Wall Section(s) – Detail of wall materials and assembly.
  • Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
  • Cabinet Elevations – Displays interior kitchen cabinet views.
________________________

*Material List Note: If adding a material list to your order for this plan, foundation materials will not be included (due to site specific conditions). If choosing the alternate 2x6 wall option, the material list will not be updated to show 2x6 studs separately.


________________________

Note about 2x6 Wall Option: If choosing the 2x6 wall option, the added stud depth will be applied towards the interior of the walls. » See important information before purchasing.

Plan Set

PDF Set :
$995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1145.00
5 printed plan sets mailed to you.
CAD Set :
$1795.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$395.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$395.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Right-Reading Reverse :
$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$195.00
A list of building supplies needed to construct the infrastructure of your new house.
