Key Specs


1584
sq ft

0
Beds

0
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This traditional garage plan has the potential to house up to 4 cars. One door is 12' wide and 12'3" tall and could potentially accommodate a recreational vehicle. The smaller door is 10' wide and 8' tall, with the door to the storage area to the right of it.

Floor Plans

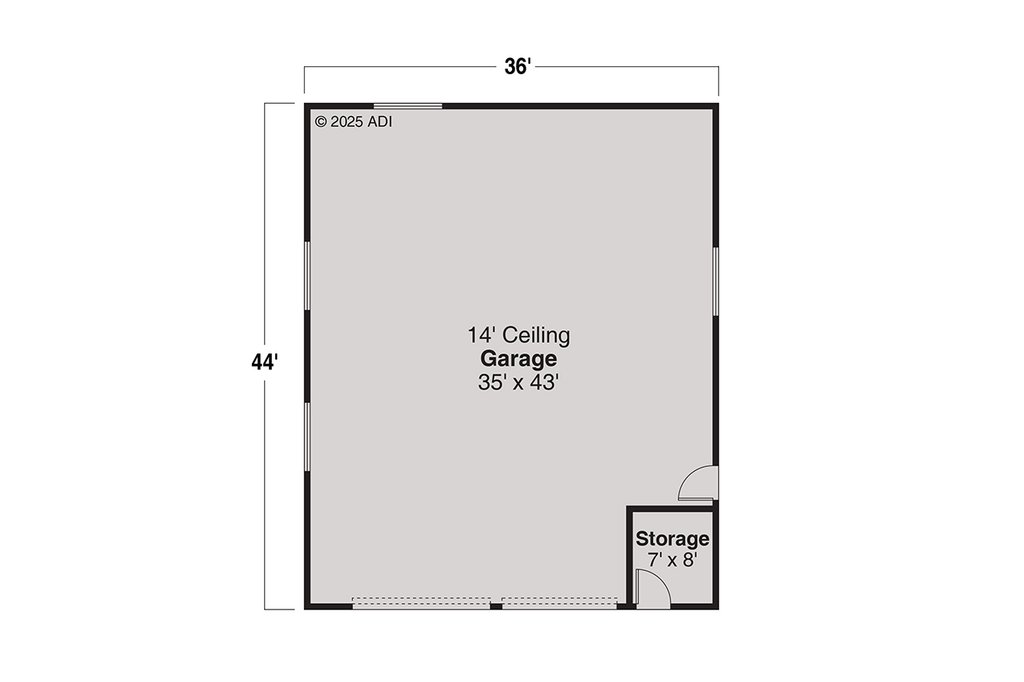

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #124-662

Full Specs & Features


Dimension
Depth : 44'
Height : 34'
Width : 36'
Area
Garage: 1584 sq/ft
Ceiling
Main Ceiling : 14'
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Additional Room Features
Storage Area
Garage Features
RV Garage
Detached Garage
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural Roof Framing
Rooms

Garage:

1505 sq/ft width 35' x depth 43'

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.

Plan Set

5 Copy Set :
$250.00
5 printed plan sets mailed to you.
8 Copy Set :
$310.00
8 printed plan sets mailed to you.
PDF Set :
$475.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$525.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
50.00
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
