PLAN #430-16

Key Specs


1600
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This great looking plan will enhance any neighborhood and has so much to offer. The beautiful great room has a trayed ceiling and a cozy gas log fireplace and the kitchen offers a raised bar and island peninsula for entertaining. The master suite also has a trayed ceiling, as well as, a whirlpool tub, separate shower, enclosed commode, dual sinks, and a large walk in closet. There are 2 additional bedrooms and a second bath with dual sinks.

Floor Plans

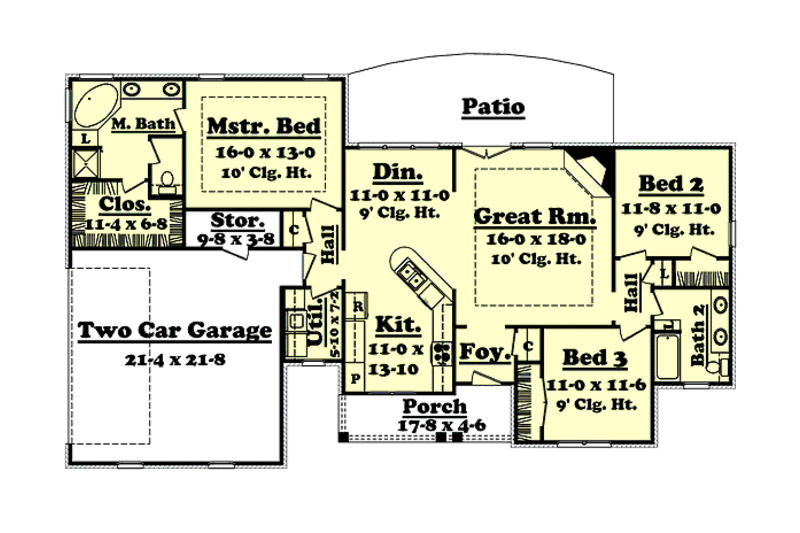

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Other Floor Plan
Floor Plan - Other Floor Plan

Full Specs & Features


Dimension Depth : 40'
Height : 23'
Width : 68'
Area Garage : 489 sq/ft
Main Floor : 1600 sq/ft
Porch : 86 sq/ft
Roof Primary Pitch : 10:12
Exterior Wall Framing Framing : 2"x4"
Bedroom Features Split Bedrooms
Walk In Closet
Kitchen Features Peninsula Eating Bar
Additional Room Features Great Room Living Room
Storage Area
Garage Features Side Entry Garage
Lot Characteristics Suited For Corner Lot
Outdoor Spaces Covered Front Porch

What's Included In This Plan Set


House Plan Zone, LLC

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

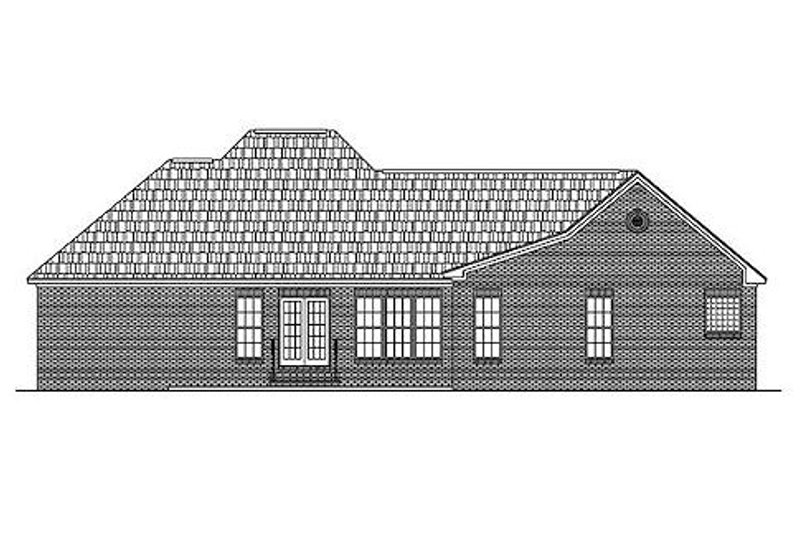

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
