This craftsman home plan features slender posts and multipaned upper window sashes. Kitchen has a conversation bar space for folks to hang out without crowding the cooks. Doors linking dining room and parlor open to create one bright area.
Depth : 34'
Height : 28'
Width : 52'
Garage : 400 sq/ft

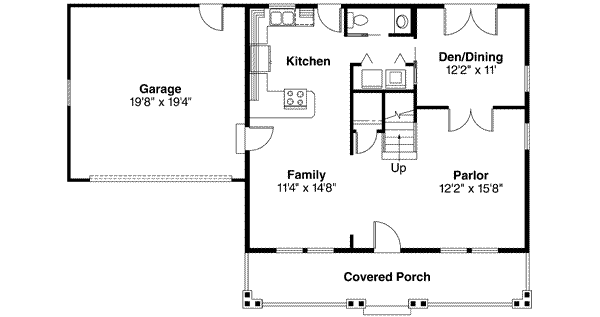

Main Floor : 896 sq/ft
Upper Floor : 704 sq/ft
Main Ceiling : 9'
Roof Framing : Truss
Roof Load : 25
Primary Pitch : 8:12
|Exterior Wall Framing||
Exterior Wall Finish : Siding
Framing : 2"x6"

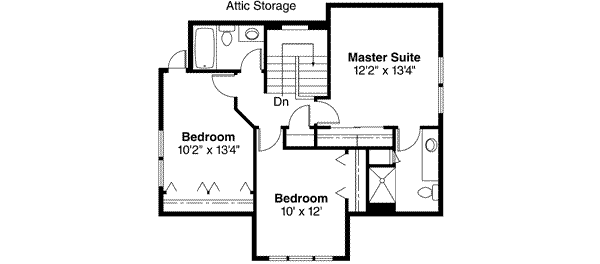

Upstairs Master Bedrooms
|Additional Room Features||
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Front Entry Garage
Suited For Narrow Lot
Covered Front Porch
Suited For Vacation Home
|Structural Information Provided||
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
|Bedroom 2||135 sq/ft width 10' 2" x depth 13' 4"|
|Bedroom 3||120 sq/ft width 10' x depth 12'|
|Dining Room||133 sq/ft width 12' 2" x depth 11'|
|Family Room||166 sq/ft width 11' 4" x depth 14' 8"|
|Garage||380 sq/ft width 19' 8" x depth 19' 4"|
|Master Suite||162 sq/ft width 12' 2" x depth 13' 4"|
|Parlor||190 sq/ft width 12' 2" x depth 15' 8"|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
