PLAN #124-899

Key Specs


1603
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Slender sets of twin posts bound the front porch of this compact cottage. The foyer leads out into the dining area, which is totally open to the living room behind and the kitchen up front. Counters wrap around four sides of the G-shaped kitchen. Wide sliders at the rear of the gathering space open onto a covered patio.

Floor Plans

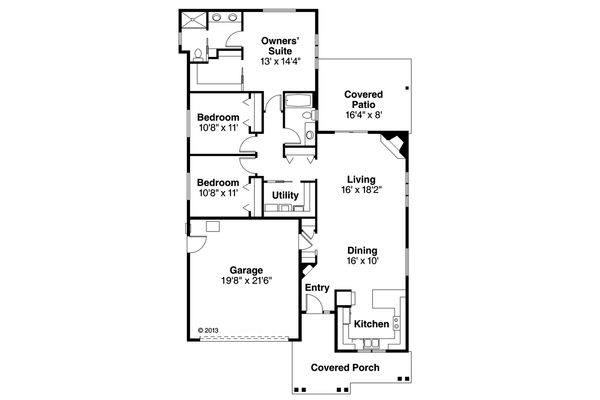

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #124-899

Full Specs & Features


Dimension
Depth : 69'
Height : 21' 6"
Width : 41' 6"
Area
First Floor: 1603 sq/ft height 9'
Garage: 446 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Truss
Roof Load : 25
Primary Pitch : 6
Roof Type : Gable
Exterior Wall Framing
Insulation : R-21
Exterior Wall Finish : Siding/Shingle
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Rooms

Bedroom 2:

width 10' 8" x depth 11'

Bedroom 3:

width 10' 8" x depth 11'

Dining:

width 16' x depth 10'

Garage:

446 sq/ft width 19' 8" x depth 21' 6"

Living Room:

width 16' x depth 18' 2"

Master Bedroom:

width 13' x depth 14' 4"

Patio:

width 16' 4" x depth 8'

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.

Plan Set

5 Copy Set :
$823.50
5 printed plan sets mailed to you.
PDF Set :
$823.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
$963.00
8 printed plan sets mailed to you.
CAD Set :
$1822.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$630.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$180.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$256.50
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse :
157.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
