PLAN #20-2260

Key Specs


1619
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This narrow cottage-style ranch has a split bedroom design and is ideal for empty-nesters or retirees. Tucked in the rear of the plan for privacy, the master suite features a tray ceiling and transom windows. A pocket office is near the front entry while the laundry room and a drop zone is located off the garage.

Floor Plans


Floor Plan - Main Floor Plan
Cottage Floor Plan - Main Floor Plan Plan #20-2260
Floor Plan - Other Floor Plan
Alternate Master Bath

Full Specs & Features


Dimension
Depth : 62'
Height : 23' 2"
Width : 45'
Area
Garage : 513 sq/ft
Main Floor : 1619 sq/ft
Porch : 89 sq/ft
Ceiling
Ceiling Details : Tray ceiling in Master Bedroom
Main Ceiling : 10'
Roof
Roof Framing : Conventional
Primary Pitch : 10:12
Secondary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick & Siding
Framing : 2 x 6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Empty Nester

What's Included In This Plan Set

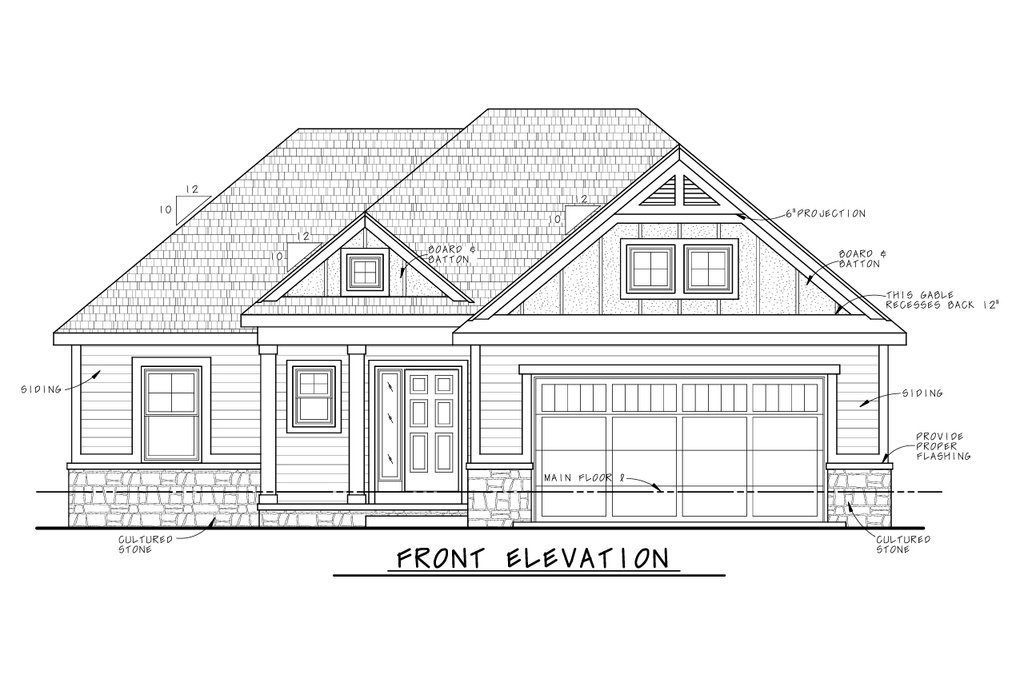

  • Cover Page: Front elevation and informative reference sections including: general notes and design criteria
  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
» See important information before purchasing.
Plan Set
PDF Set :
$945.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$945.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
5 Copy Set :
$1020.00
5 printed plan sets mailed to you.
8 Copy Set :
$1140.00
8 printed plan sets mailed to you.
CAD Set :
$1654.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$195.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$195.00
Ideal for level lot, single layer concrete poured directly on grade.
Daylight Basement:
$390.00
Ideal for sloping lot, lower level of home partially underground.
Framing
Wood 2x4:
$195.00
Wood 2x4
Additional Options
Material List :
125.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Construction Engineering Guide :
39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
