PLAN 17-3326
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 57'
Height : 26' 8"
Width : 51' 6"
Area
Bonus: 322 sq/ft height 9'
First Floor: 1622 sq/ft height 9'
Garage: 526 sq/ft height 9'
Porch: 422 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Main Floor Laundry
Unfinished Future Space
Workshop
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
108 sq/ft width 10' 2" x depth 10' 8"
Bedroom 3:
106 sq/ft width 10' x depth 10' 8"
Bonus Room - Unfinished:
297 sq/ft width 12' 10" x depth 23' 2"
Breakfast Room:
80 sq/ft width 10' x depth 8'
Dining Room:
104 sq/ft width 11' x depth 9' 6"
Foyer:
51 sq/ft width 6' 5" x depth 8'
Garage:
486 sq/ft width 20' 10" x depth 23' 4"
Garage Storage:
83 sq/ft width 12' 2" x depth 6' 10"
Great Room:
265 sq/ft width 13' 6" x depth 19' 8"
Grilling Porch:
95 sq/ft width 10' 5" x depth 9' 2"
Kitchen:
166 sq/ft width 15' 2" x depth 11'
Laundry Room:
76 sq/ft width 8' 4" x depth 9' 2"
Master Bathroom:
167 sq/ft width 15' 8" x depth 10' 8"
Master Suite:
188 sq/ft width 15' 8" x depth 12'
Porch - Front:
82 sq/ft width 16' 6" x depth 5'
Porch - Rear:
120 sq/ft width 13' 2" x depth 9' 2"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.

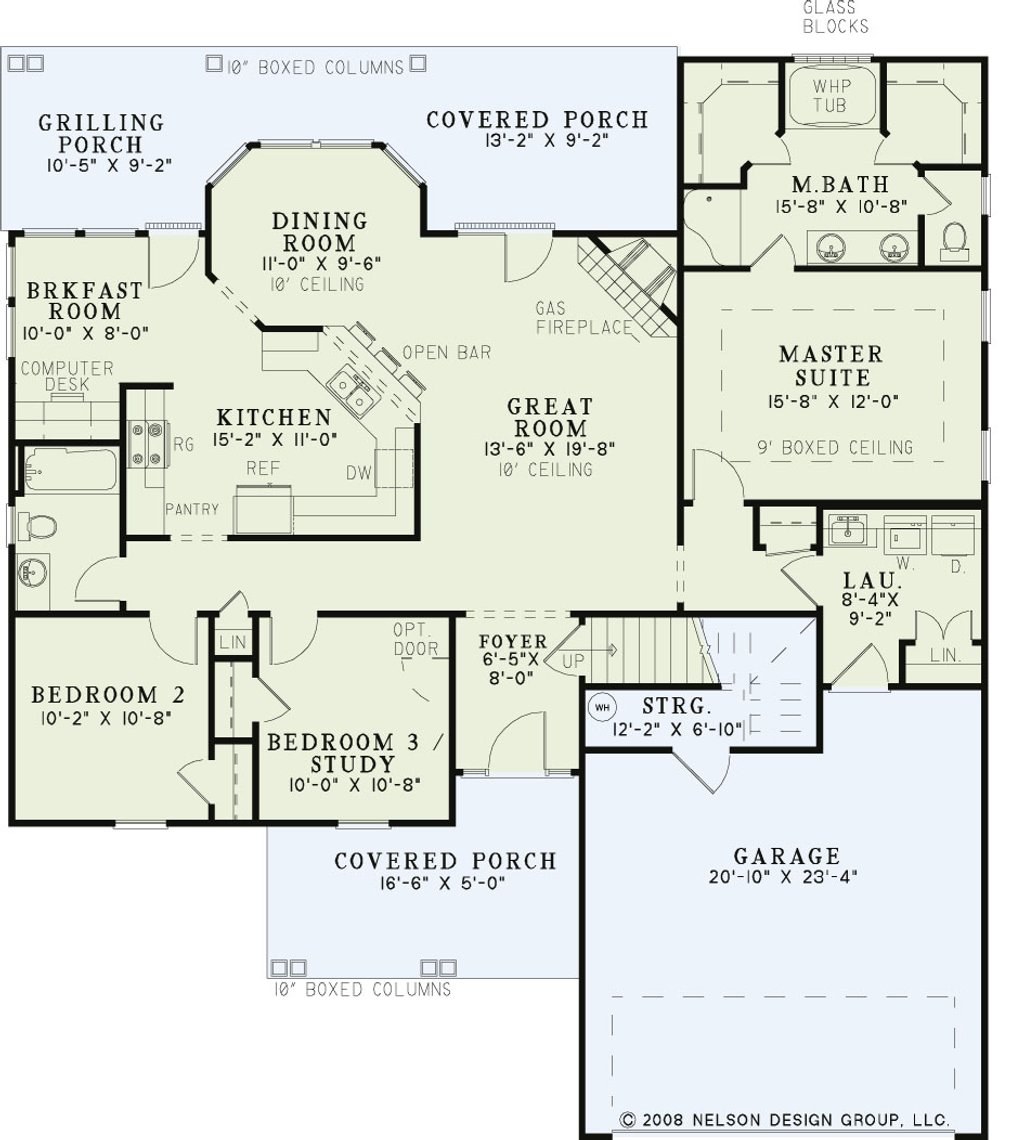

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

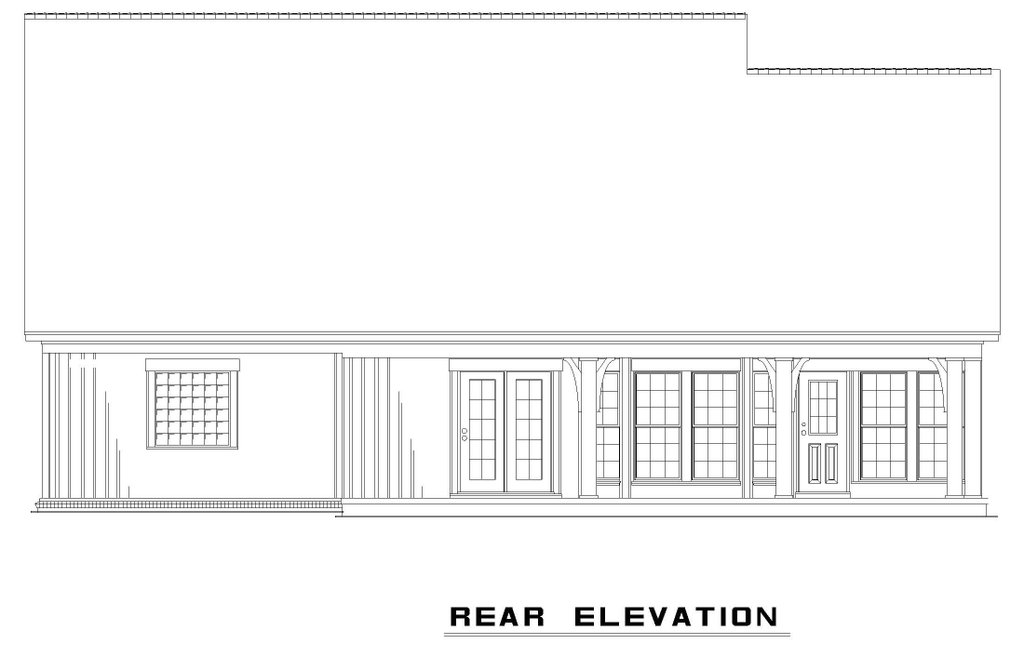

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$800.00
$900.00
$1150.00
$1500.00
$1600.00
$1600.00
Foundation
$0.00
$0.00
$299.00
$299.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$100.00
$39.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
