PLAN 513-12

Photographs may show modified designs.

Dream House Plan - Craftsman Exterior - Front Elevation Plan #513-12

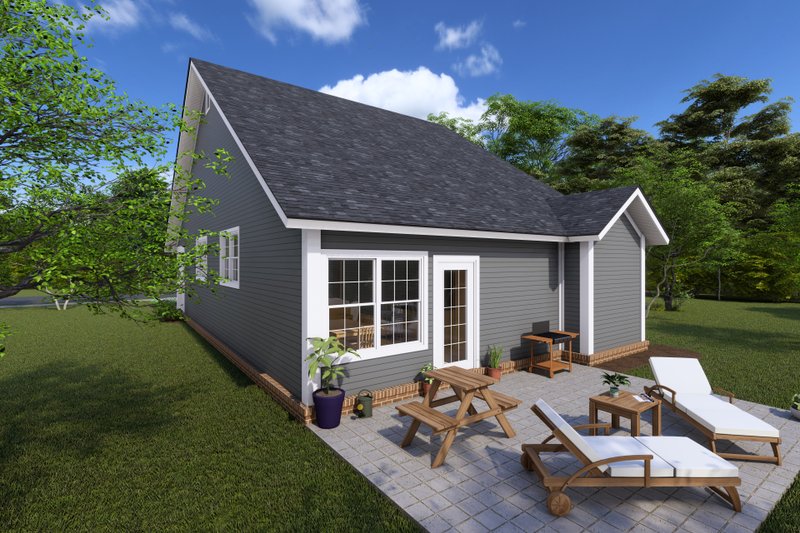

Dream House Plan - Craftsman Exterior - Rear Elevation Plan #513-12

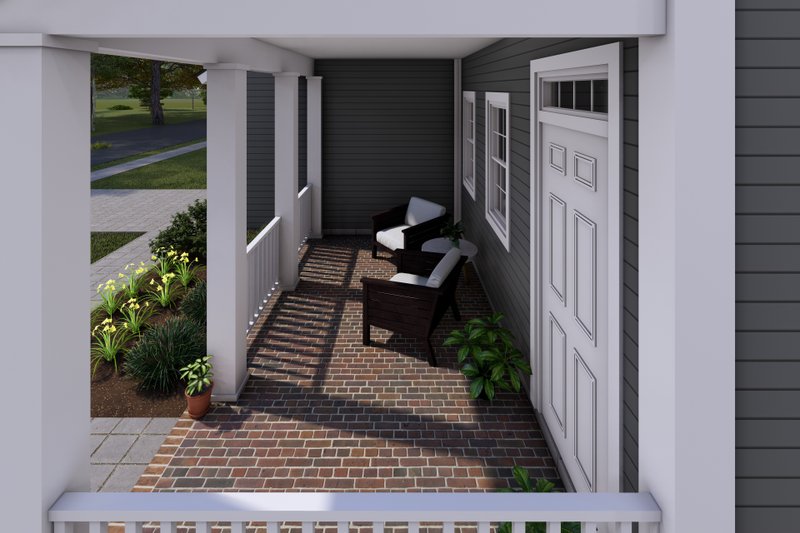

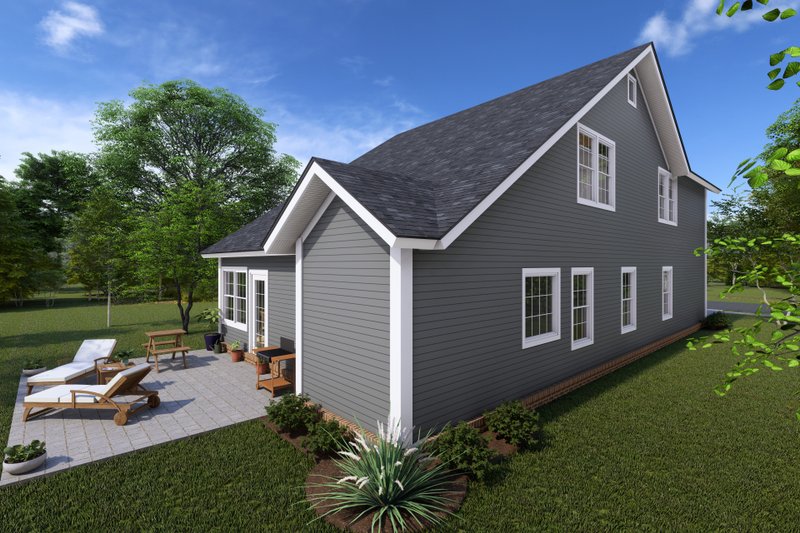

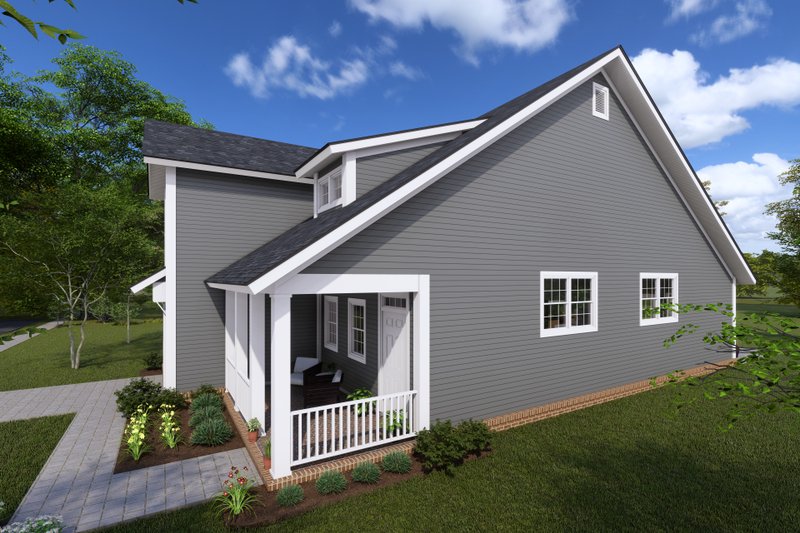

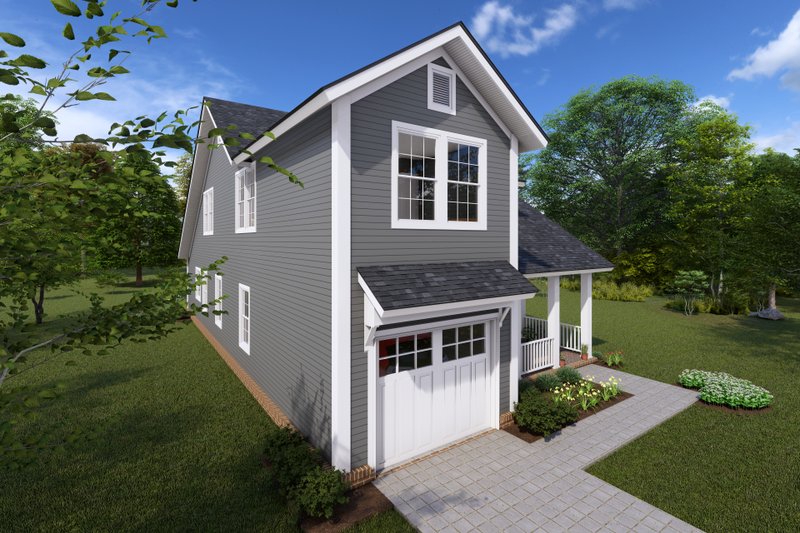

Dream House Plan - Craftsman Exterior - Other Elevation Plan #513-12

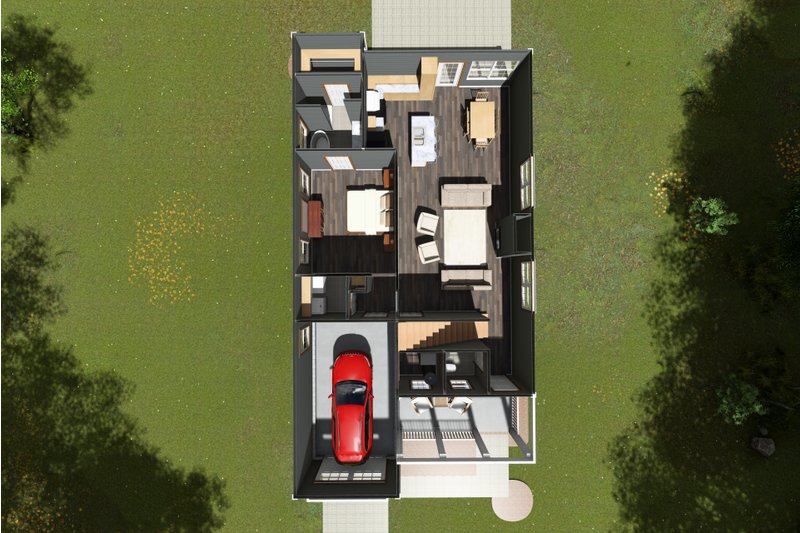

Dream House Plan - Craftsman Floor Plan - Main Floor Plan #513-12

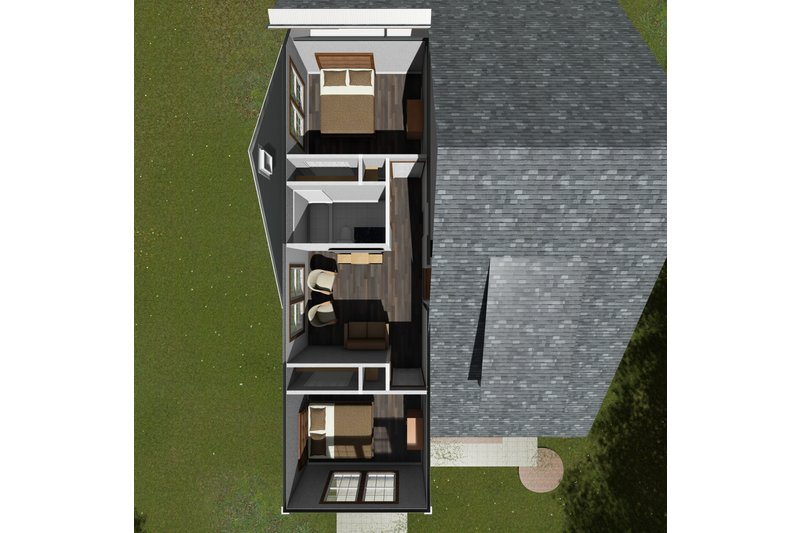

Dream House Plan - Craftsman Floor Plan - Upper Floor Plan #513-12

Jump to:
All (10)
Exterior (6)
Floor plans (4)

Get Personalized Help

Home > Style > Craftsman House Plans

Key Specs

1622
sq ft

3
Beds

2.5
Baths

2
Floors

1
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$295.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$985.00

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 513-12

Home > Style > Craftsman House Plans

Key Specs

1622
sq ft

3
Beds

2.5
Baths

2
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 1622 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Floor Plan - Main Floor

Reverse

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 56'

Height : 27'

Width : 29'

Area

First Floor: 1086 sq/ft

Garage: 298 sq/ft

Porch: 131 sq/ft

Second Floor: 536 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 12 ft ceiling at Living Room.

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 30

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Storage Area

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Bathroom 2:

29 sq/ft width 5' 4" x depth 5' 6"

Bathroom 3:

45 sq/ft width 9' x depth 5'

Bedroom 1:

180 sq/ft width 12' x depth 15'

Bedroom 2:

132 sq/ft width 12' x depth 11'

Bedroom 3:

120 sq/ft width 12' x depth 10'

Dining Room:

128 sq/ft width 11' x depth 11' 8"

Game Room:

120 sq/ft width 12' x depth 10'

Garage:

266 sq/ft width 12' 8" x depth 21'

Kitchen:

103 sq/ft width 9' x depth 11' 6"

Kitchen Island:

18 sq/ft width 3' x depth 6'

Living Room:

328 sq/ft width 16' x depth 20' 6"

Utility Room:

35 sq/ft width 6' 6" x depth 5' 6"

What's Included In This Plan Set

See a sample plan set

Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
Interior Elevations: Kitchen cabinet elevations are drawn.
Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.

Questions? Call 1-800-447-0027

Plan Set

PDF Unlimited Build:
$985.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$1280.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$195.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$195.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$195.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
