PLAN #21-428

Key Specs


1627
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

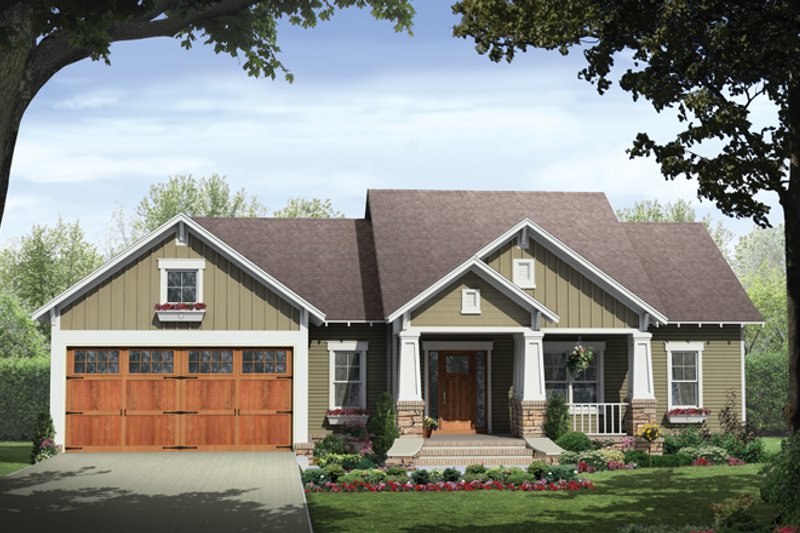

This plan maximizes space with its open layout. A split-bedroom configuration gives plenty of privacy to the master suite, which treats owners to a large private bathroom (check out those double sinks and the corner tub) and two walk-in closets. On the opposite side, two more bedrooms share a full hall bath. The kitchen invites everyone to hang out around the island's snack bar or in the nearby dining nook. Extra storage in the garage presents a handy hideaway for holiday decorations. On the exterior, tapered columns add Craftsman-style flair.

Floor Plans

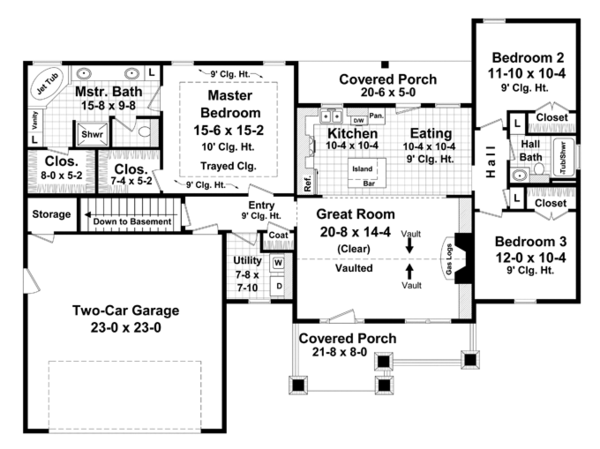

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #21-428

Full Specs & Features


Dimension
Depth : 49'
Height : 21' 5"
Width : 65' 10"
Area
First Floor: 1627 sq/ft
Garage: 641 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Mud Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

width 11' 10" x depth 10' 4"

Bedroom 3:

width 12' x depth 10' 4"

Covered Front Porch:

143 sq/ft width 21' 8" x depth 8'

Covered Rear Porch:

103 sq/ft width 20' 6" x depth 5'

Dining Area:

width 10' 4" x depth 10' 4"

Garage:

641 sq/ft width 23' x depth 23'

Great Room:

width 20' 8" x depth 14' 4"

Hall bath:

44 sq/ft width 7' 10" x depth 5' 7"

Kitchen:

width 10' 4" x depth 10' 4"

Master Bath:

width 15' 8" x depth 9' 8"

Master Bedroom:

width 15' 6" x depth 15' 2"

Master Closet 1:

width 7' 4" x depth 5' 2"

Master Closet 2:

width 8' x depth 5' 2"

Utility Room:

width 7' 8" x depth 7' 10"

What's Included In This Plan Set


  • Cover Sheet: Showing architectural rendering of residence
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
  • Foundation Plan and Details
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1015.00
5 printed plan sets mailed to you.
PDF Set :
$1125.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1200.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1680.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$950.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Engineering Guide :
39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
130.00
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
