PLAN 70-1190

Home > Style > Ranch House Plans

Key Specs

1628
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

• This traditional ranch home is affordable to build with a simple gable roof. • The living area features a kitchen with breakfast bar that overlooks the dining and great rooms. • The bedrooms lie to the left of the entry with the master to the back of the home. • A screened porch is found off the dining area with access to a deck off the back of the home. • 9’ ceilings add volume to this open plan • A two-stall garage includes a back entry to the home where a spacious laundry is found.

Floor Plans

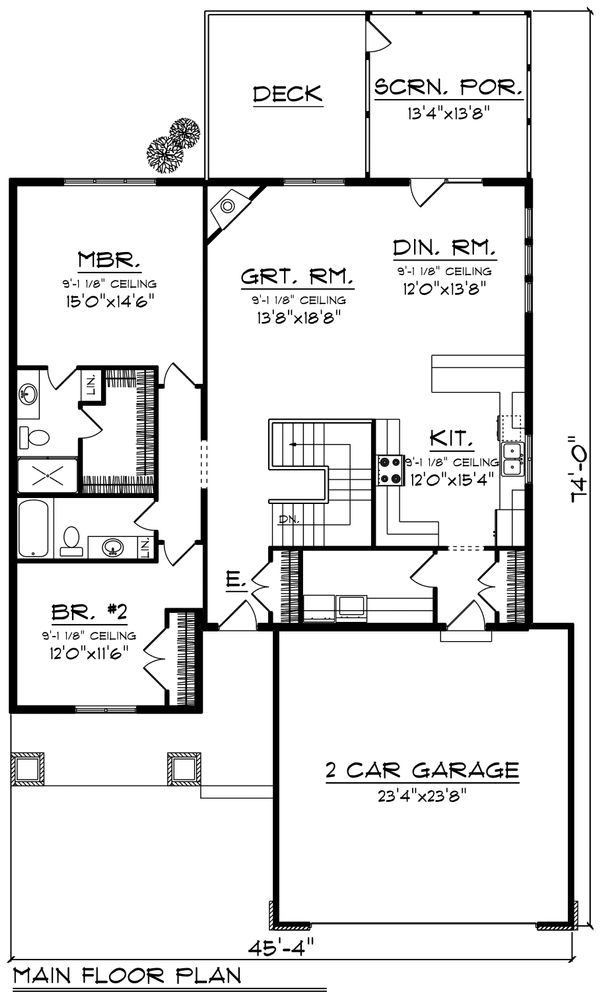

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 74'

Height : 21' 8"

Width : 45' 4"

Area

First Floor: 1628 sq/ft height 9' 1"

Garage: 577 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 8'

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Asphalt

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : 2x6

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Additional Room Features

Great Room Living Room

Main Floor Laundry

Sunroom

Unfinished Future Space

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Screened Porch

Economical To Build

Empty Nester

Rooms

Bedroom 2:

138 sq/ft width 12' x depth 11' 6"

Bedroom 2 Closet:

15 sq/ft width 2' x depth 7' 6"

Covered Front Porch:

267 sq/ft width 21' 4" x depth 12' 6"

Deck:

178 sq/ft width 13' x depth 13' 8"

Dining Area:

164 sq/ft width 12' x depth 13' 8"

Foyer:

30 sq/ft width 5' x depth 6'

Garage:

577 sq/ft width 23' 4" x depth 23' 8"

Great Room:

255 sq/ft width 13' 8" x depth 18' 8"

Half Bath:

55 sq/ft width 11' x depth 5'

Hall:

43 sq/ft width 3' 6" x depth 12' 4"

Hall Closet:

11 sq/ft width 2' x depth 5' 8"

Kitchen:

184 sq/ft width 12' x depth 15' 4"

Laundry Room:

60 sq/ft width 10' 6" x depth 5' 8"

Linen Closet:

4 sq/ft width 1' 8" x depth 2' 6"

Master Bath:

50 sq/ft width 5' x depth 10'

Master Bedroom:

218 sq/ft width 15' x depth 14' 6"

Master Closet:

57 sq/ft width 5' 8" x depth 10'

Mud Room Closet:

12 sq/ft width 2' x depth 6'

Screened Porch:

182 sq/ft width 13' 4" x depth 13' 8"

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$1022.00

5 printed plan sets mailed to you.

8 Copy Set:
$1067.00

8 printed plan sets mailed to you.

PDF Set:
$1276.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1276.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2017.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$395.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$395.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$395.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$75.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
