Plan Description

The large great room is the center of this home with a beautiful boxed ceiling. An open floor plan makes for easy entertainment and comfort. The dining room is in the front of the home with easy access to the kitchen. A light-filled breakfast area and kitchen bar offer plenty of seating in this eat-in kitchen. The left side of the home has two bedrooms and share a full bath. On the right side of the home, the master bedroom also boasts a boxed ceiling and a master bath with a dual vanity and large walk-in closet. Bonus space above the garage allows for additional space when needed.

Floor Plans

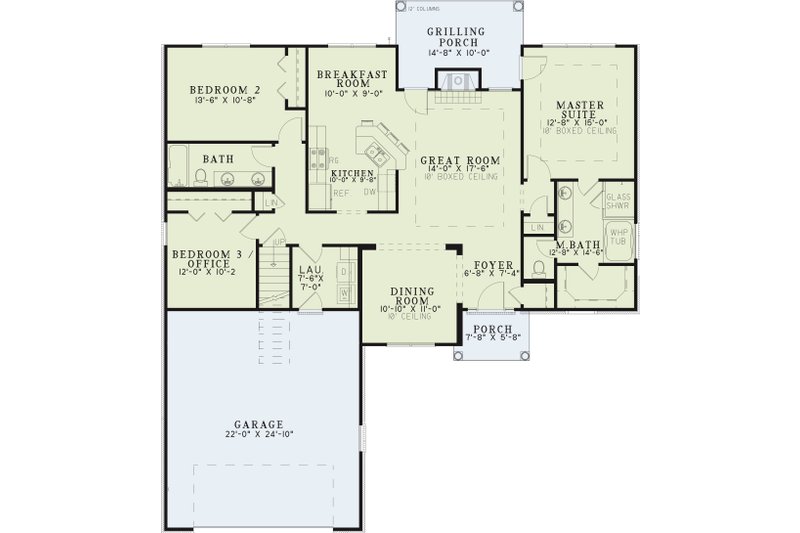

Floor Plan - Main Floor Plan

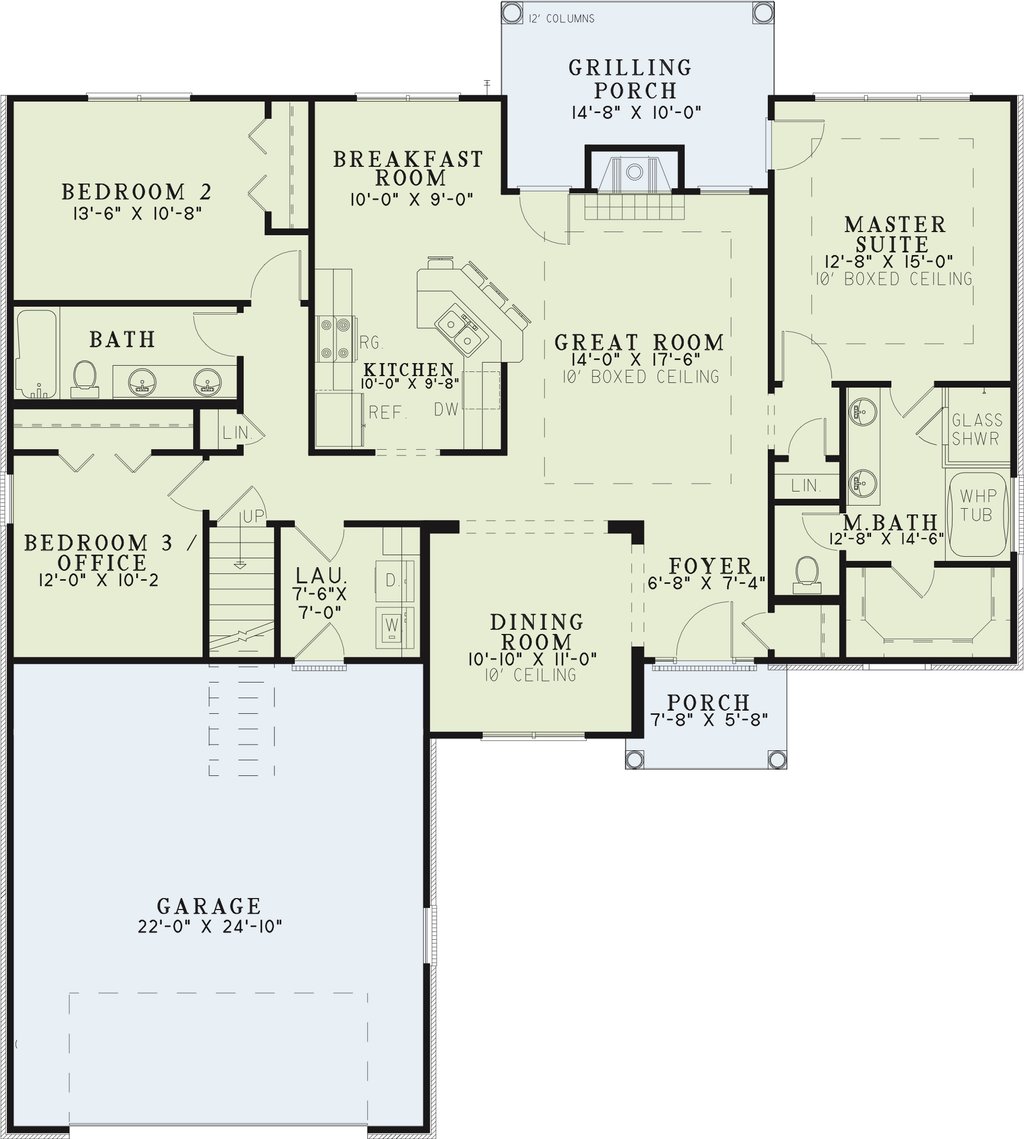

Ranch Floor Plan - Main Floor Plan Plan #17-3324
Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #17-3324

Full Specs & Features

Depth : 60' 8"
Height : 27' 4"
Width : 54' 2"
Bonus: 383 sq/ft height 9'
First Floor: 1629 sq/ft height 9'
Garage: 569 sq/ft
Porch: 188 sq/ft
Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

144 sq/ft width 13' 6" x depth 10' 8"

Bedroom 3:

122 sq/ft width 12' x depth 10' 2"

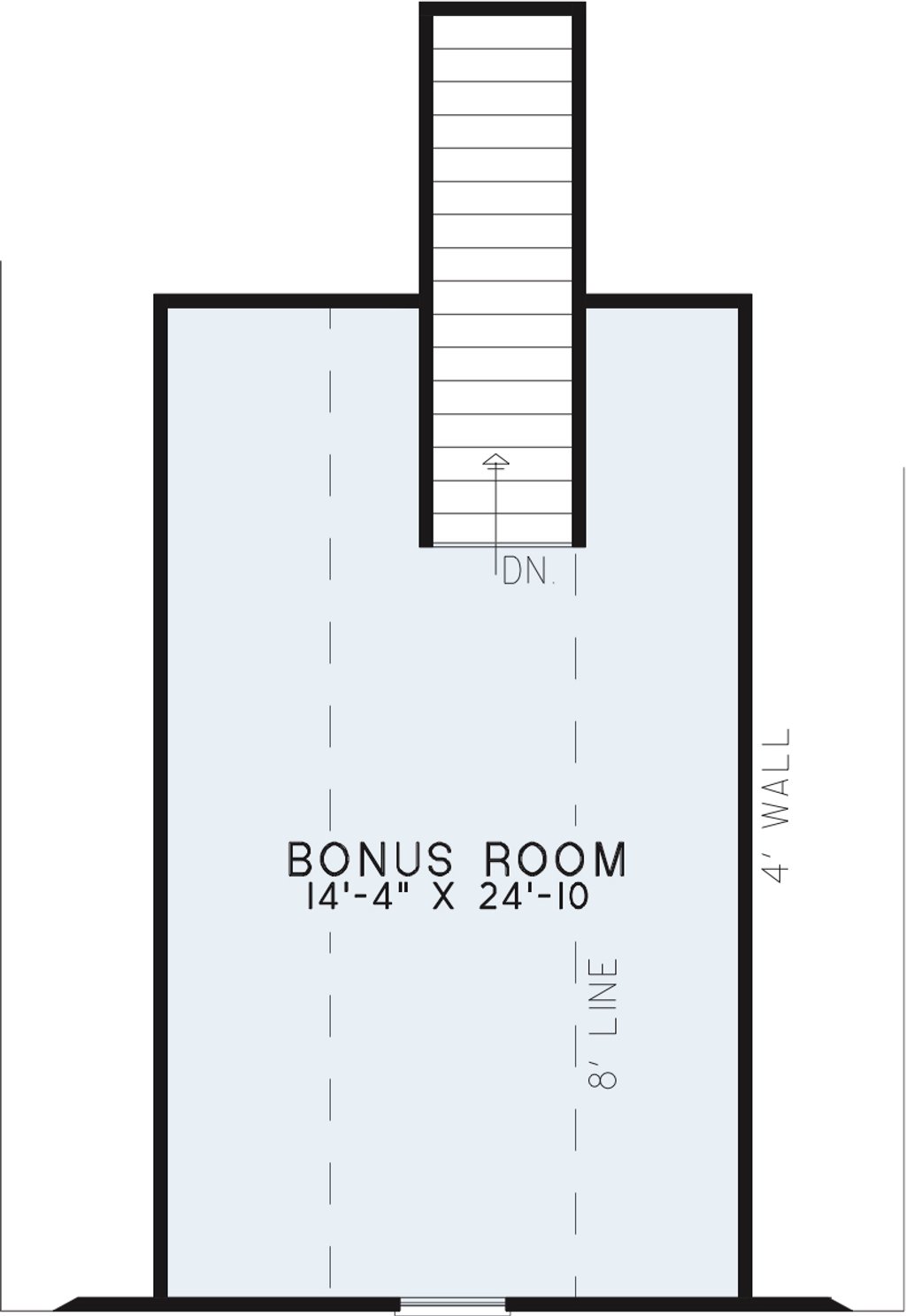

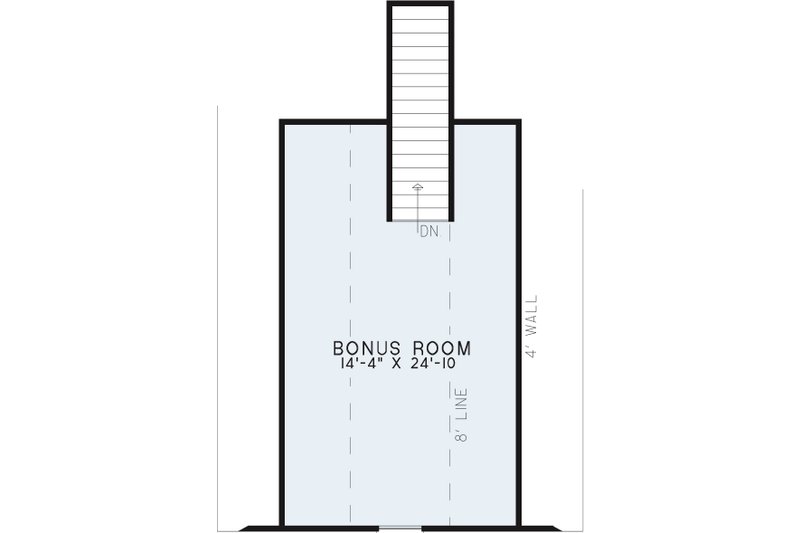

Bonus Room - Unfinished:

355 sq/ft width 14' 4" x depth 24' 10"

Breakfast Room:

90 sq/ft width 10' x depth 9'

Dining Room:

119 sq/ft width 10' 10" x depth 11'


48 sq/ft width 6' 8" x depth 7' 4"


546 sq/ft width 22' x depth 24' 10"

Great Room:

245 sq/ft width 14' x depth 17' 6"

Grilling Porch:

146 sq/ft width 14' 8" x depth 10'


96 sq/ft width 10' x depth 9' 8"

Laundry Room:

52 sq/ft width 7' 6" x depth 7'

Master Suite:

190 sq/ft width 12' 8" x depth 15'

Porch - Front:

43 sq/ft width 7' 8" x depth 5' 8"
