PLAN #20-1872

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

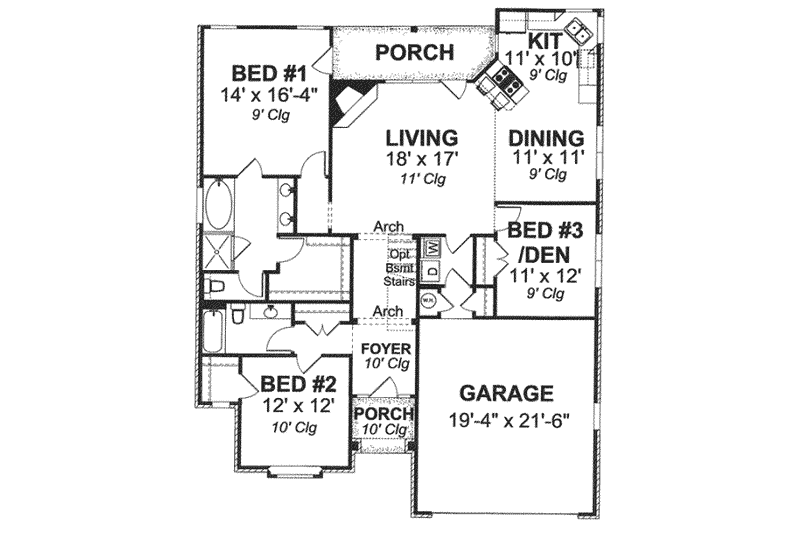

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #20-1872

Full Specs & Features

Depth : 56' 6"
Height : 27'
Width : 44'
First Floor: 1645 sq/ft
Garage: 470 sq/ft
Main Ceiling : 9'

Bathroom 2:

55 sq/ft width 10' x depth 5' 6"

Bedroom 1:

228 sq/ft width 14' x depth 16' 4"

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

132 sq/ft width 11' x depth 12'

Dining Room:

121 sq/ft width 11' x depth 11'


126 sq/ft width 7' x depth 18'


415 sq/ft width 19' 4" x depth 21' 6"


110 sq/ft width 11' x depth 10'

Living Room:

306 sq/ft width 18' x depth 17'

Master Bathroom:

135 sq/ft width 10' x depth 13' 6"

Master Closet:

63 sq/ft width 9' x depth 7'

Utility Room:

31 sq/ft width 6' x depth 5' 4"

What's Included In This Plan Set

  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
