Key Specs


1653
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Living large in this economical plan! An oversized living room open to the kitchen with an island is the first of many bonuses. Large closets, central utility close to the kid's bedrooms, and separate shower in the master bath adds to the livability.

Floor Plans

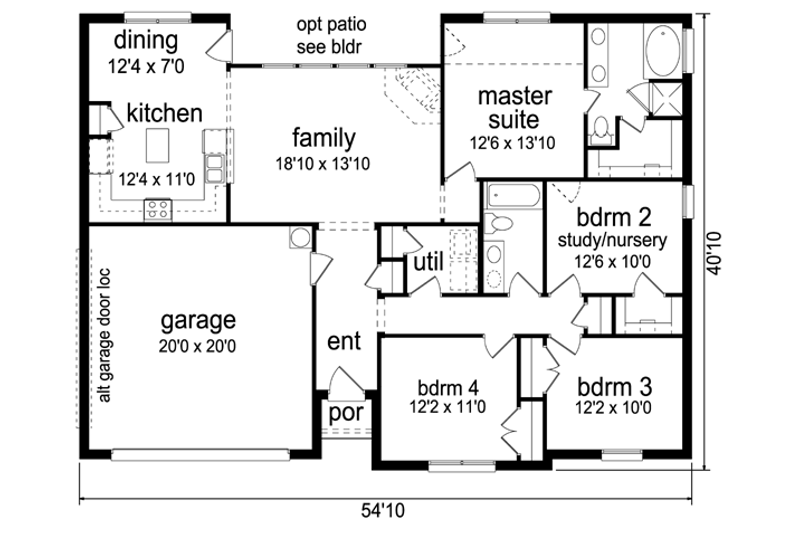

Floor Plan - Main Floor Plan

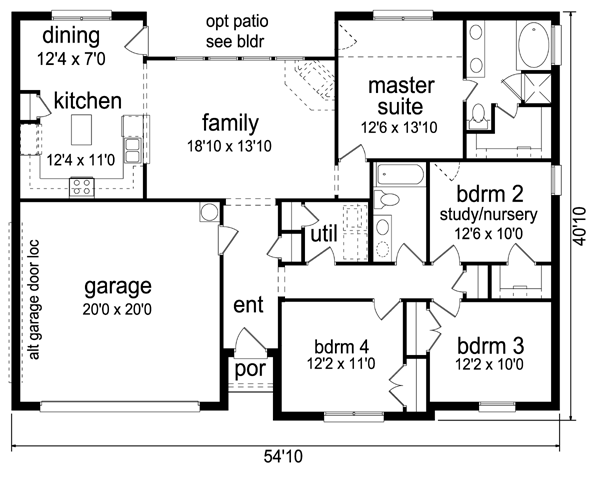

Ranch Floor Plan - Main Floor Plan Plan #84-550

Full Specs & Features


Dimension
Depth : 40' 10"
Height : 17' 11"
Width : 54' 10"
Area
First Floor: 1653 sq/ft height 10'
Garage: 439 sq/ft height 10'
Porch: 14 sq/ft
Ceiling
Garage Ceiling : 8'
Main Ceiling : 10'
Roof
Roof Framing : stick
Primary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : brick
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Garage Features
Front Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Code Compliance
Irc 2003
Rooms

Bedroom 2:

125 sq/ft width 12' 6" x depth 10'

Bedroom 3:

121 sq/ft width 12' 2" x depth 10'

Bedroom 4:

133 sq/ft width 12' 2" x depth 11'

Dining Room:

86 sq/ft width 12' 4" x depth 7'

Family Room:

260 sq/ft width 18' 10" x depth 13' 10"

Garage:

400 sq/ft width 20' x depth 20'

Kitchen:

135 sq/ft width 12' 4" x depth 11'

Master Suite:

172 sq/ft width 12' 6" x depth 13' 10"

What's Included In This Plan Set


  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

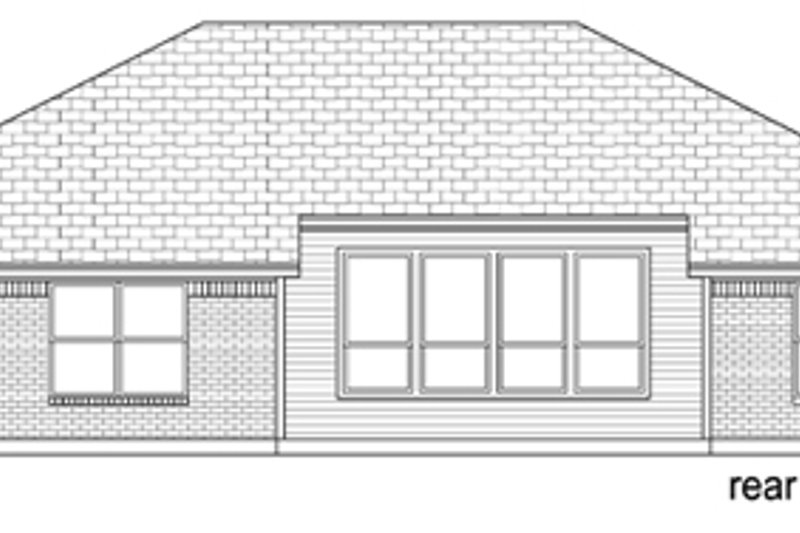

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
