PLAN #63-401

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

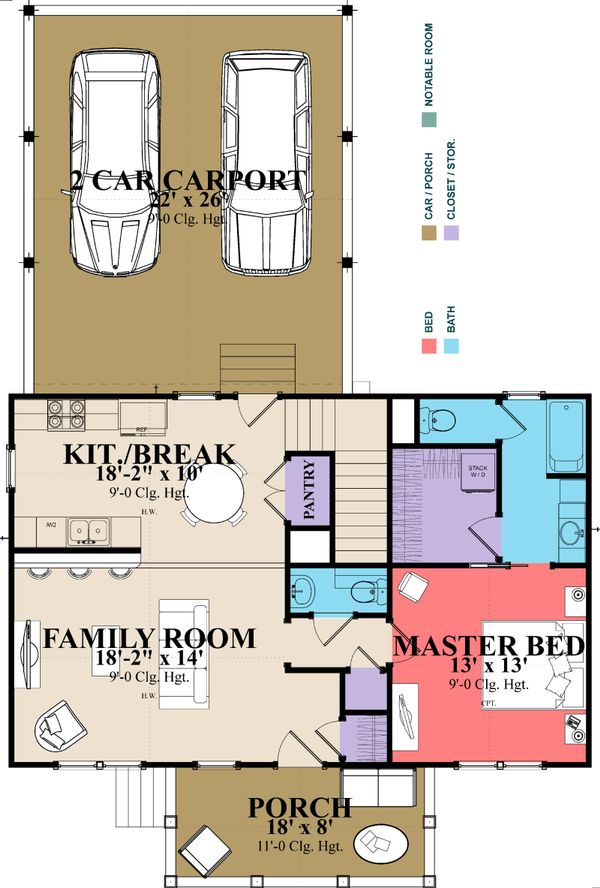

Floor Plan - Main Floor Plan
Classical Floor Plan - Main Floor Plan Plan #63-401

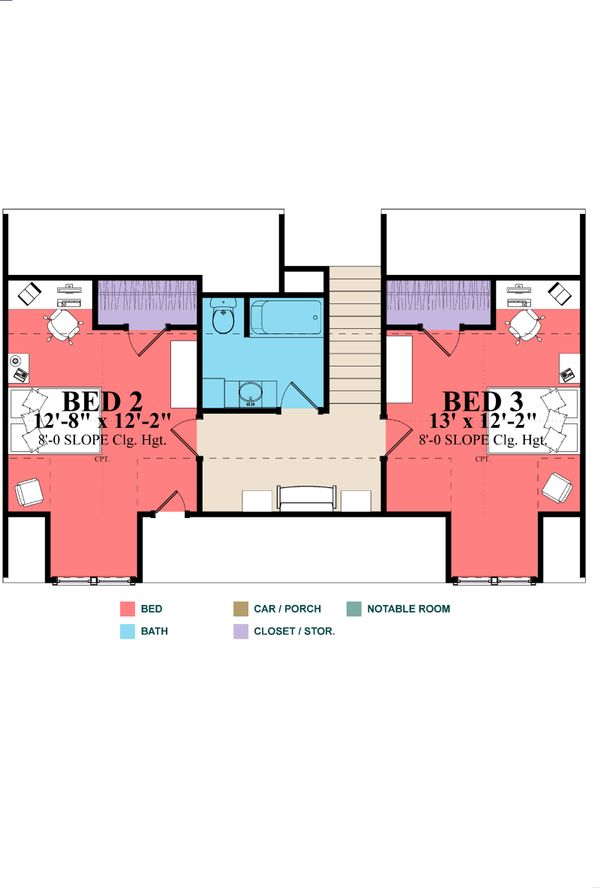

Floor Plan - Upper Floor Plan
Classical Floor Plan - Upper Floor Plan Plan #63-401

Full Specs & Features

Depth : 59' 1"
Height : 22' 6"
Width : 39'
First Floor: 975 sq/ft height 9'
Garage: 572 sq/ft height 9'
Second Floor: 711 sq/ft height 8'
Main Ceiling : 9'
Roof Framing : Stick
Roof Load : 30#
Primary Pitch : 10
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Storage Area
Garage Features
Carport Porte Cochere
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Suited For Vacation Home

Bedroom 2:

width 18' 8" x depth 12' 2"

Bedroom 3:

width 13' x depth 12' 2"


572 sq/ft width 22' x depth 26'

Family Room:

width 18' 2" x depth 14'

Front Porch:

144 sq/ft width 18' x depth 8'


width 18' 2" x depth 10'

Master Bedroom:

width 13' x depth 13'

What's Included In This Plan Set

  • Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.
  • * Foundation: Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations: Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
  • Floor joist: Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist: Complete with spans, sizes and direction
  • Sections: Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
* Alternate foundations are available. Please call 1-800-913-2350 for pricing and turnaround time » See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
