PLAN 455-592
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

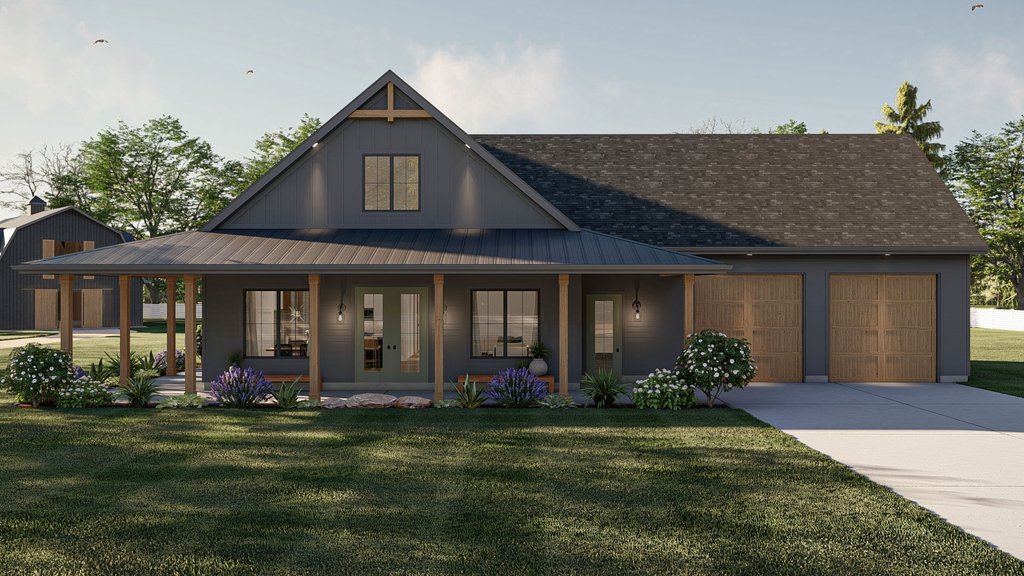

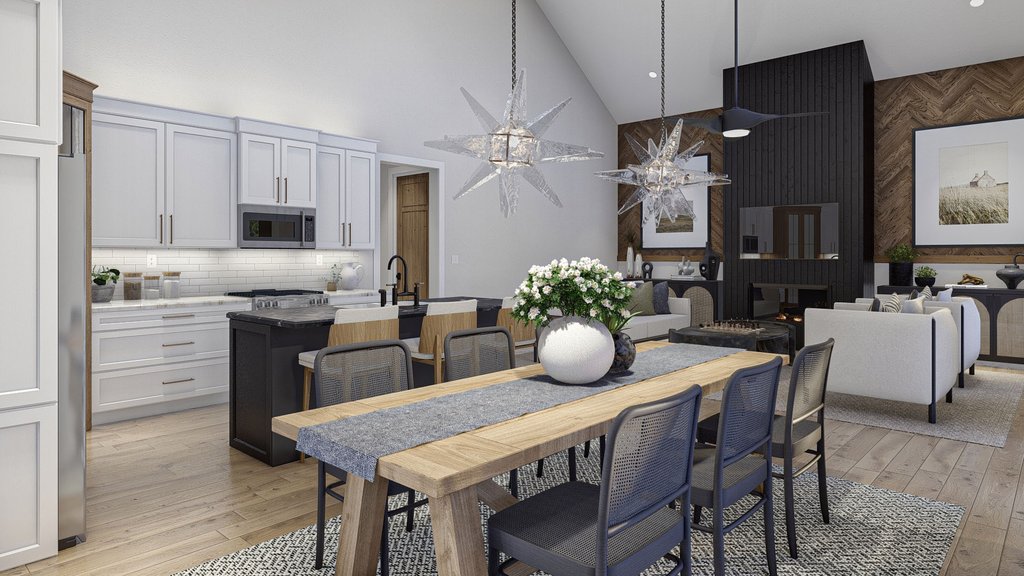

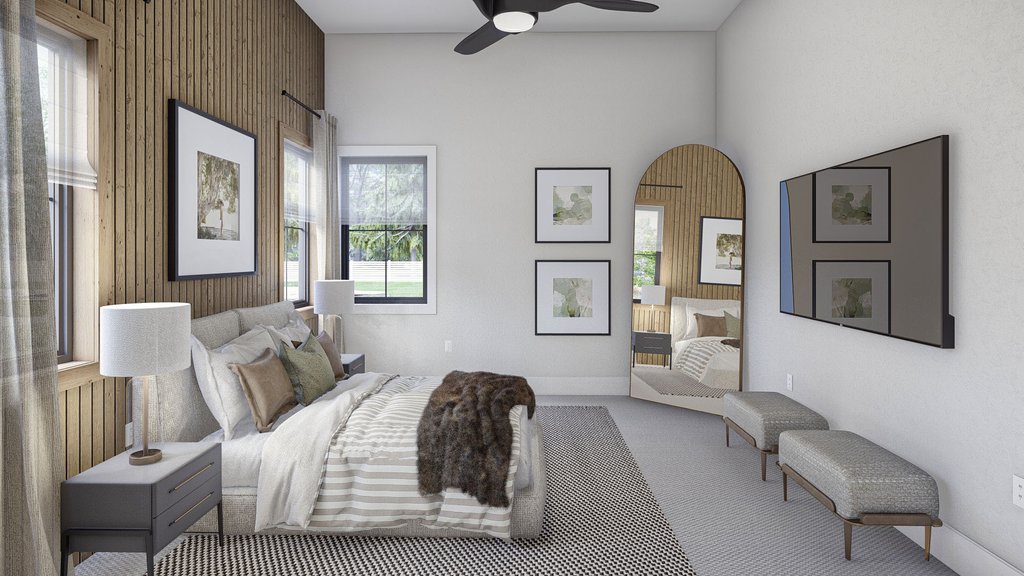

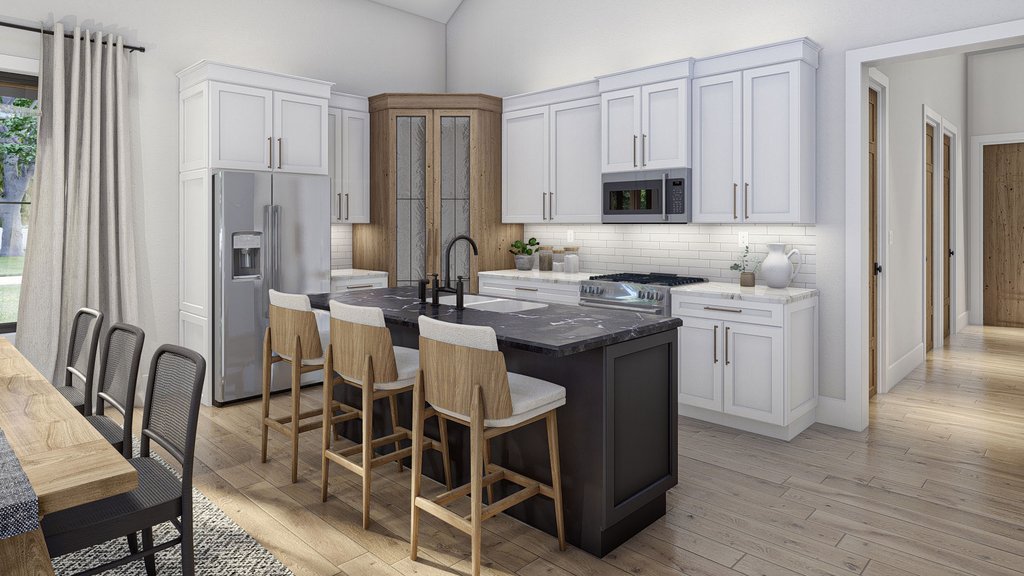

Welcome to the charming and inviting Barndominium-style house plan! Nestled on a picturesque property, this delightful home combines the rustic charm of a barn with the modern comforts of a stylish dwelling. From the moment you approach, you'll be greeted by the wrap-around covered porch, providing the perfect spot to relax and enjoy the scenic views. As you step through the front door, you'll find yourself in the heart of the home—the spacious great room and dining area. The cathedral ceiling adds a sense of grandeur and openness, creating a warm and inviting atmosphere. The abundant natural light filtering in through the large windows further enhances the sense of space and tranquility. An open floor plan seamlessly connects the great room and dining area to the well-appointed kitchen, making it an ideal layout for entertaining guests or spending quality time with family. The kitchen boasts modern appliances, ample countertop space, and plenty of storage with the walk-in pantry, making it a chef's dream. Venturing down the hall, you'll discover three cozy bedrooms, each offering a private retreat. Two of the bedrooms share a conveniently located hall bathroom, complete with modern fixtures and finishes, catering to the needs of guests or family members. The third bedroom, the master suite, exudes luxury and comfort. It features its own en-suite bathroom, equipped with all the necessary amenities for relaxation and rejuvenation. Additionally, the master suite includes a spacious walk-in closet, ensuring ample space for all your wardrobe needs. This plan also boasts a two-car garage, providing secure parking and extra storage for vehicles, tools, or recreational equipment. The garage conveniently connects to the house via the laundry room. With its unique blend of rustic charm and modern comfort, this Barndominium-style house plan offers a cozy and welcoming place to call home. Whether you're enjoying the peaceful serenity of the wrap-around porch or the openness of the great room, this house plan is designed to create lasting memories and a comfortable lifestyle for its occupants.
Floor Plans

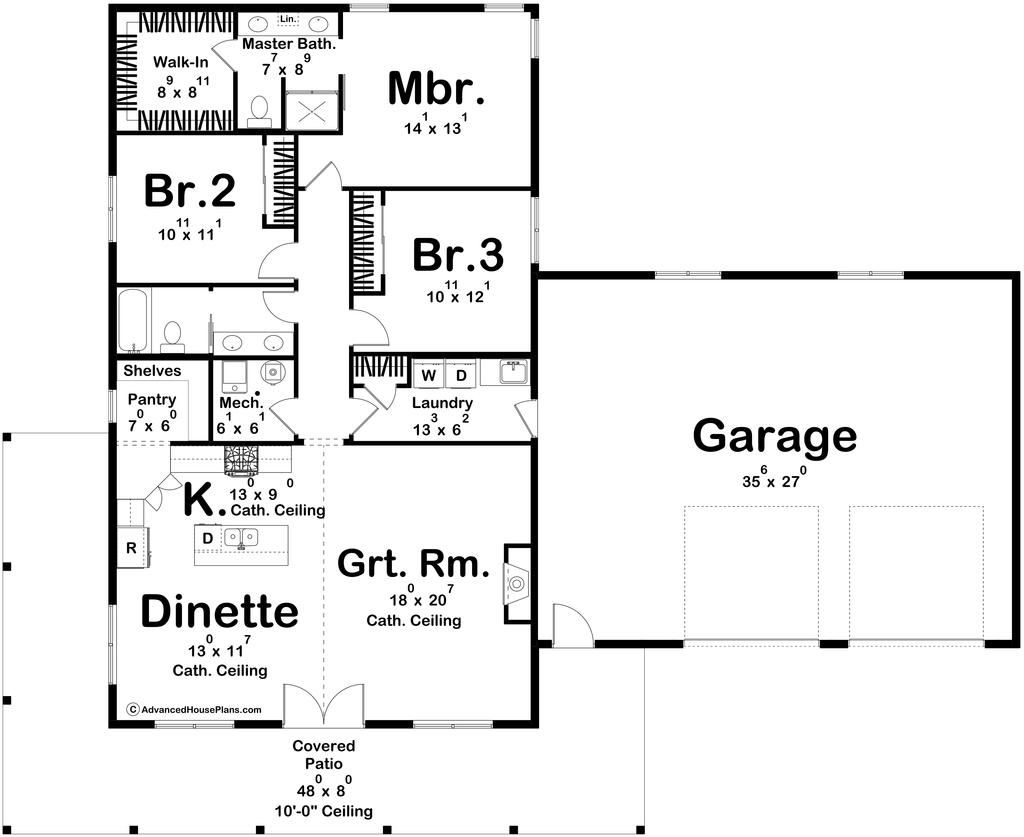

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 62'
Height : 26' 5"
Width : 76'
Area
Garage : 1008 sq/ft
Main Floor : 1691 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The covered patio features a 10'-0" ceiling. The dinette, great room, and kitchen feature cathedral ceilings.
Main Ceiling : 12'
Roof
Primary Pitch : 10/12
Roof Framing : Trusses
Secondary Pitch : 4/12
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1189.15
$1189.15
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1439.90
$1439.90
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2038.30
$2038.30
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$254.15
$254.15
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$254.15
$254.15
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Walk Out Basement:
$254.15
$254.15
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$254.15
$254.15
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.15
$50.15
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Material List:
$254.15
$254.15
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
