PLAN #23-2502

Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Subtotal
$850.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #23-2502

Key Specs


1702
sq ft

3
Beds

2.5
Baths

2
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This lovely country home offers plenty of spaces for relaxation, beginning with the wrapping porch stretching all the way around to connect with the dining area at the rear. Other family areas include the hearth-warmed living room, flexible den, and the large island kitchen. Enjoy soaking in the master suite's oversized tub upstairs, while children and guests occupy two more bedrooms and the full hall bath.

Floor Plans

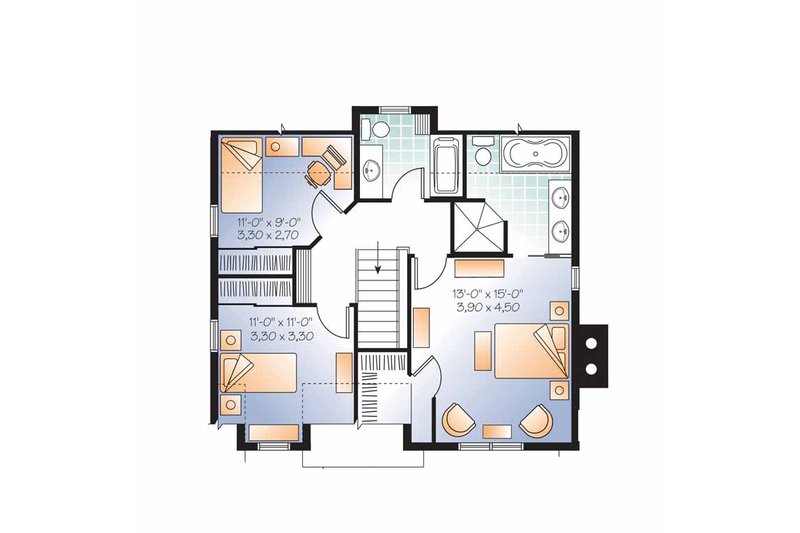

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

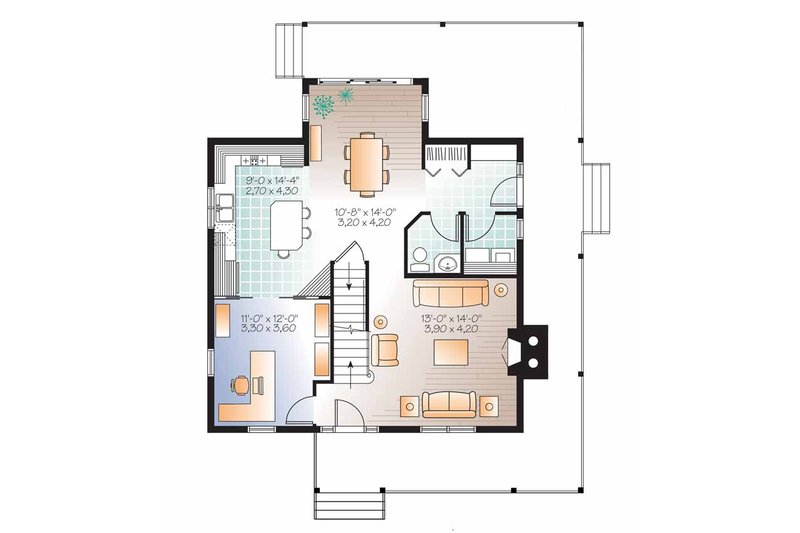

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 908 sq/ft
Upper Floor : 794 sq/ft
Bedroom Features Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Outdoor Spaces Wrap Around Porch

What's Included In This Plan Set


Drummond Designs

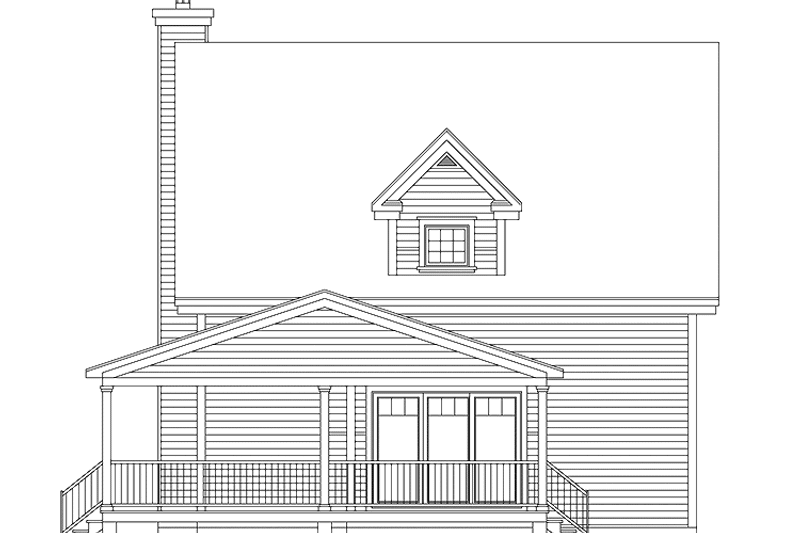

Exterior Elevations (front, rear, left & right sides) typically include:
  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:
  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:
  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys
Building cross-section(s) and truss details typically include:
  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections
Construction details typically include:
  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
  • Note: This plan does not include an electrical layout.
» See important information before purchasing.
Plan Set
5 Copy Set :
$850.00
5 printed plan sets mailed to you.
8 Copy Set :
$880.00
8 printed plan sets mailed to you.
PDF Set :
$990.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$990.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1560.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$395.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$395.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Material List :
130.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
