PLAN 929-1078

Key Specs


1747
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

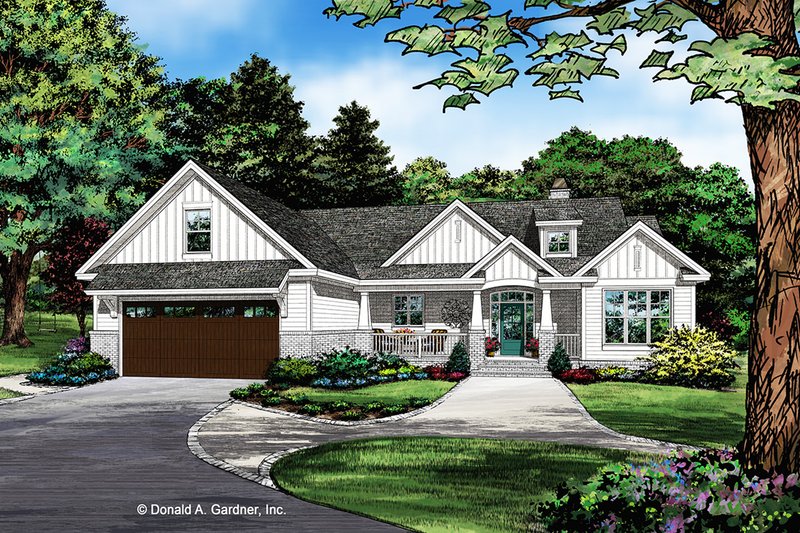

This elegant house plan design shows off Craftsman-inspired styling with graceful tapered columns on the porch and eye-catching gables. Inside, it's party time in the open dining room and at the kitchen's snack bar. Check out the large screened porch (with a fireplace!) out back.

Floor Plans

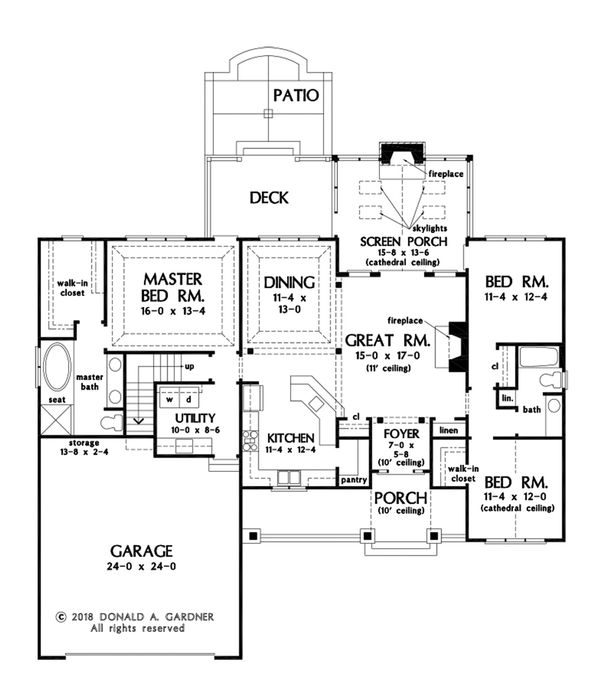

Floor Plan - Main Floor Plan
Reverse
Save

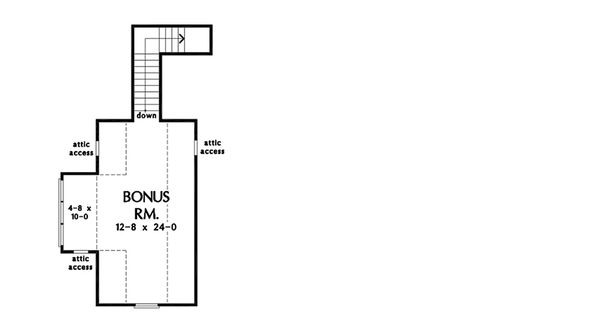

Floor Plan - Other Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 62' 2"
Height : 23' 10"
Width : 63' 2"
Area
Bonus : 441 sq/ft
Decks : 153 sq/ft
Garage : 632 sq/ft
Main Floor : 1747 sq/ft
Patios : 177 sq/ft
Porch : 426 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 10' in Foyer, 11' in Great Room, Tray Ceiling in Master bedroom and Dining Room, Cathedral Ceiling in Bedroom 2 and Porch.
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Stick/Conventional
Roof Load : 20 PSF
Roof Type : Asphalt Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2x4
Insulation : R-13
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Screened Porch
More
Economical To Build
Empty Nester
Rooms

Bedroom 2:

width 11' 4" x depth 12'

Bedroom 3:

width 11' 4" x depth 12' 4"

Dining Room:

width 11' 4" x depth 13'

Foyer:

width 7' x depth 5' 8"

Garage:

width 24' x depth 24'

Garage Storage:

width 13' 8" x depth 2' 4"

Great Room:

width 15' x depth 17'

Kitchen:

width 11' 4" x depth 12' 4"

Master Bedroom:

width 16' x depth 13' 4"

Screened Porch:

width 15' 8" x depth 13' 6"

Utility Room:

width 10' x depth 8' 6"

What's Included In This Plan Set


See a sample plan set

Donald A. Gardner typically charges $100.00 to review plan changes and prepare an estimate for your modifications. However, for a limited time, we're cutting that in half to only $49.00! This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.

Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.

  • Cover Sheet - A rendering of the front exterior of the house.
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
  • Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.

» See important information before purchasing.

Plan Set

5 Copy Set :
$1000.00
5 printed plan sets mailed to you.
8 Copy Set :
$1075.00
8 printed plan sets mailed to you.
PDF Set :
$1335.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1335.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$2390.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$905.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$285.00
Ideal for level lot, lower level of home partially or fully underground.
Slab:
$285.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$285.00
Wood 2x6

Additional Options

Right-Reading Reverse :
$180.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
