PLAN 46-476
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 42'
Height : 29' 9"
Width : 72' 6"
Area

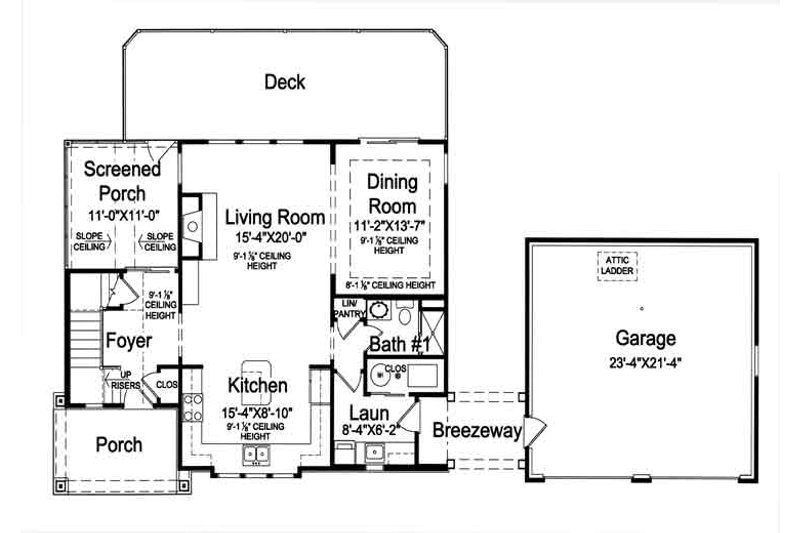

Basement Unfinished: 945 sq/ft
First Floor: 945 sq/ft
Garage: 470 sq/ft
Second Floor: 803 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 47
Roof Type : Shingle
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Storage Area
Sunroom
Garage Features
Detached Garage
Outdoor Spaces
Balcony
Breezeway
Covered Front Porch
Grill Deck Sundeck
Screened Porch
Code Compliance
Irc 2006
Rooms
Bathroom 2:
45 sq/ft width 8' 10" x depth 5' 2"
Bedroom 2 Closet:
19 sq/ft width 3' 4" x depth 5' 9"
Bedroom 3:
106 sq/ft width 11' 4" x depth 9' 5"
Bedroom 3 Closet:
10 sq/ft width 5' x depth 2' 1"
Coat Closet:
6 sq/ft width 1' 10" x depth 3' 5"
Dining Room:
151 sq/ft width 11' 2" x depth 13' 7"
Foyer:
93 sq/ft width 7' 9" x depth 12'
Garage:
497 sq/ft width 23' 4" x depth 21' 4"
Great Room:
303 sq/ft width 20' x depth 15' 2"
Kitchen:
122 sq/ft width 15' 4" x depth 8'
Laundry Room:
51 sq/ft width 8' 4" x depth 6' 2"

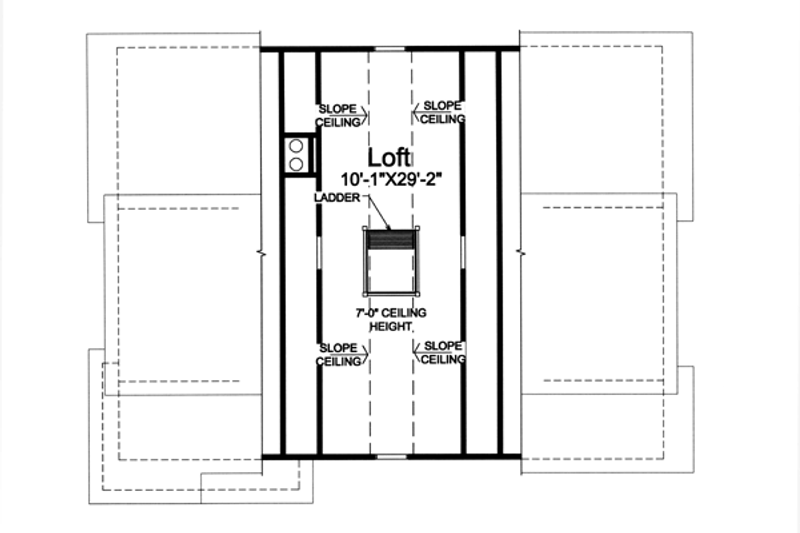

Loft:
294 sq/ft width 10' 1" x depth 29' 2"
Master Bathroom:
42 sq/ft width 5' x depth 8' 6"

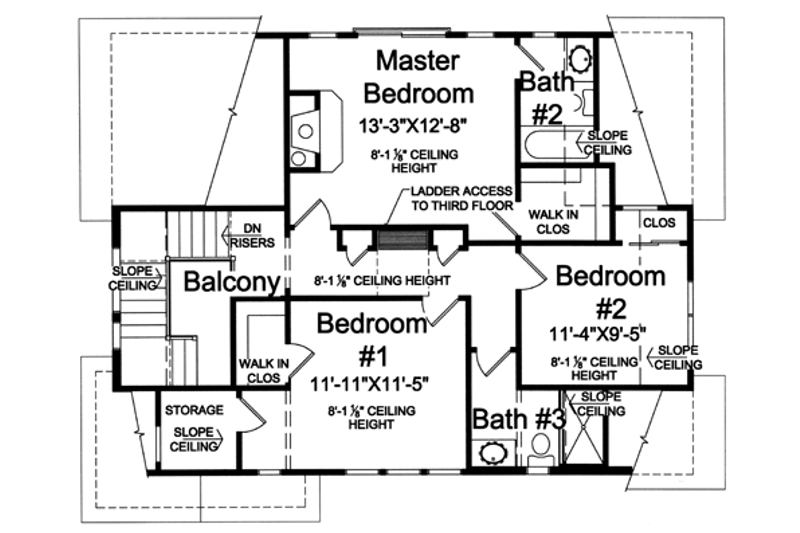

Master Bedroom:
194 sq/ft width 15' 4" x depth 12' 8"
Master Closet:
30 sq/ft width 6' 1" x depth 5'
Powder Room:
26 sq/ft width 5' 4" x depth 5'
What's Included In This Plan Set

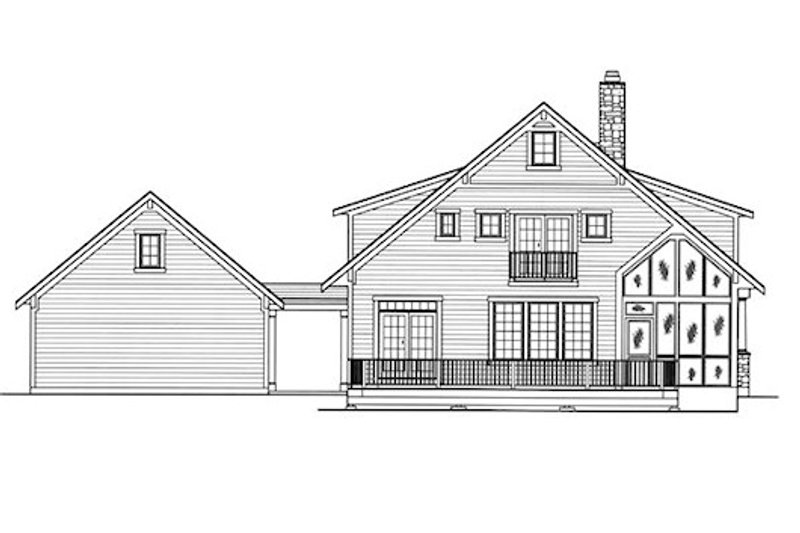

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
