PLAN #453-632

Key Specs


1748
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


With a centrally located open living area providing an expansive feel, this efficient split bedroom plan offers feels much larger than it's small footprint. Versatility can be had by leaving suite 4 open to the foyer for use as a dining room or home office. The optional upper level bonus space includes a planned bath and walk-in closet making it a possible 5th bedroom suite, game room or home theater.

Floor Plans

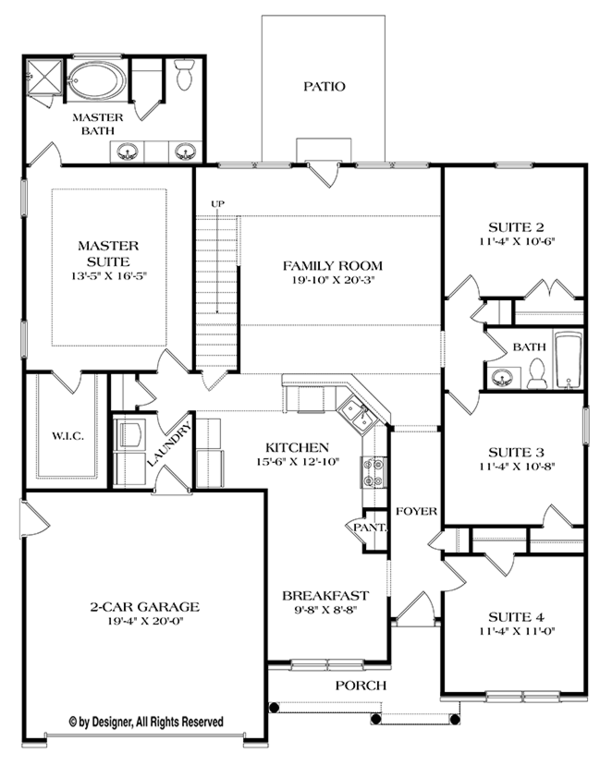

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #453-632

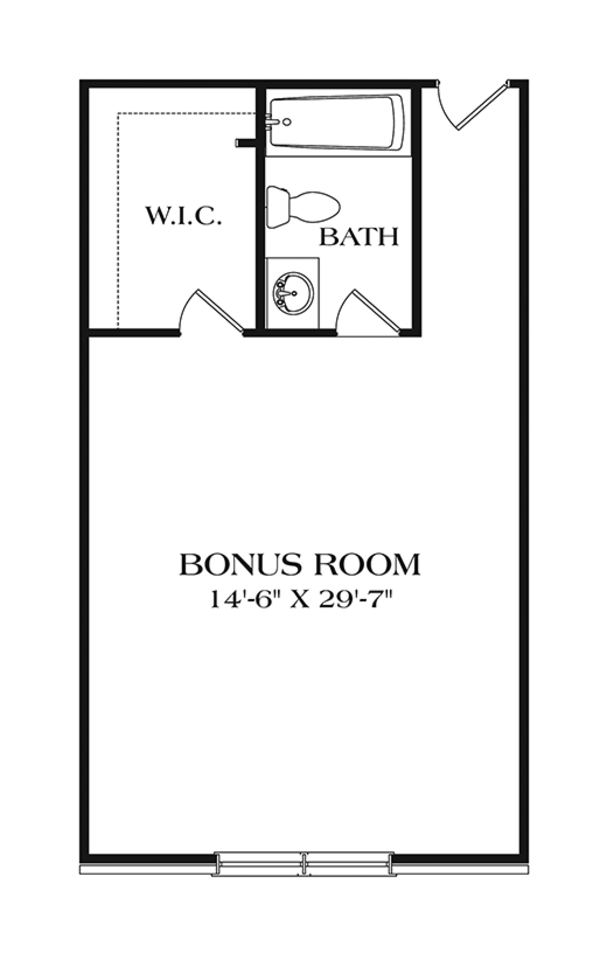

Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #453-632

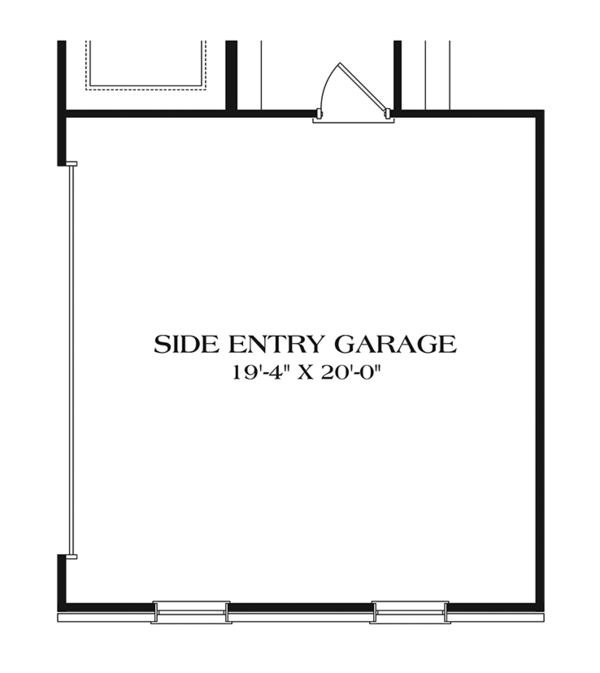

Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #453-632

Full Specs & Features


Dimension Depth : 55' 11"
Height : 23' 10"
Width : 46'
Area Bonus : 459 sq/ft
Garage : 403 sq/ft
Main Floor : 1748 sq/ft
Bedroom Features Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features Breakfast Nook
Additional Room Features Family Room Keeping Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Open Floor Plan
Outdoor Spaces Courtyard
Covered Rear Porch
Breakfast 84 sq/ft width 9' 8" x depth 8' 8"
Covered Front Porch 74 sq/ft width 0" x depth 0"
Family Room 402 sq/ft width 19' 10" x depth 20' 3"
Garage 403 sq/ft width 19' 4" x depth 20'
Kitchen 200 sq/ft width 15' 6" x depth 12' 10"
Master Suite 220 sq/ft width 13' 5" x depth 16' 5"
Suite 2 119 sq/ft width 11' 4" x depth 10' 6"
Suite 3 121 sq/ft width 11' 4" x depth 10' 8"
Suite 4 125 sq/ft width 11' 4" x depth 11'

What's Included In This Plan Set


This plan typically includes:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
» See important information before purchasing.
Plan Set
PDF Set :
$1150.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1150.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
