PLAN #437-12

Select Plan Set Options
What's included?
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #437-12

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

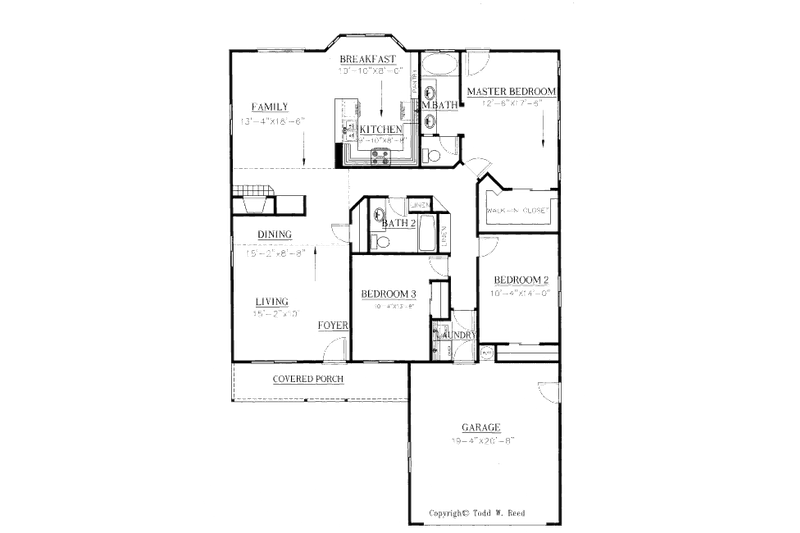

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #437-12

Full Specs & Features

Dimension Depth : 63' 6"
Height : 20' 4"
Width : 43'
Area Garage : 400 sq/ft
Main Floor : 1755 sq/ft
Ceiling Ceiling Details : All ceilings are 8' unless otherwise noted with an arrow. These ceilings are vaulted.
Main Ceiling : 8'
Roof Roof Framing : Truss
Primary Pitch : 6:12
Secondary Pitch : 8:12
Roof Type : Cement Tile
Exterior Wall Framing Exterior Wall Finish : wood siding
Framing : 2"x4"
Bedroom Features Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features Eating Bar
Breakfast Nook
Additional Room Features Family Room Keeping Room
Storage Area
Lot Characteristics Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces Covered Front Porch
Bedroom 2 144 sq/ft width 10' 4" x depth 14'
Bedroom 3 86 sq/ft width 10' 10" x depth 8'
Breakfast 113 sq/ft width 13' 4" x depth 8' 6"
Dining Room 399 sq/ft width 19' 4" x depth 20' 8"
Family Room 85 sq/ft width 9' 10" x depth 8' 8"
Garage 151 sq/ft width 15' 2" x depth 10'
Kitchen 221 sq/ft width 12' 8" x depth 17' 6"
Living Room width 0" x depth 0"
Master Bedroom width 0" x depth 0"

What's Included In This Plan Set

  • Exterior Elevations

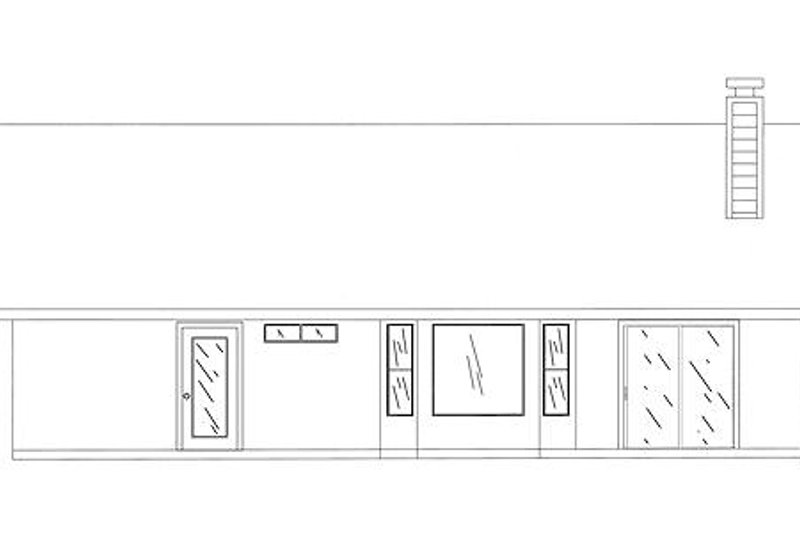

    Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

  • Floor Plan(s)

    Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

  • Foundation Plan and Footings

    The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

  • Roof Plan

    Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

  • Building Sections & Details

    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

  • Notes and Details Page(s)

    The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
