PLAN #25-4288

Key Specs


1761
sq ft

3
Beds

1
Baths

2
Floors

1
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


The rather demure façade of this two-storey house hides quite a large home. This one is 26 feet wide by 44 feet deep and provides 1,761 square feet of living space in addition to an attached 271 square foot one-car garage with a side service door.

 The 798 square foot ground floor features 9-foot high ceilings. It includes a closed entrance hall, a powder room with a laundry area, an open living and dining room as well as a kitchen with a lunch counter.

 The upper floor has 963 square feet of living space and features a bathroom and three bedrooms, including a master bedroom with French doors and a large walk-in closet.

Floor Plans

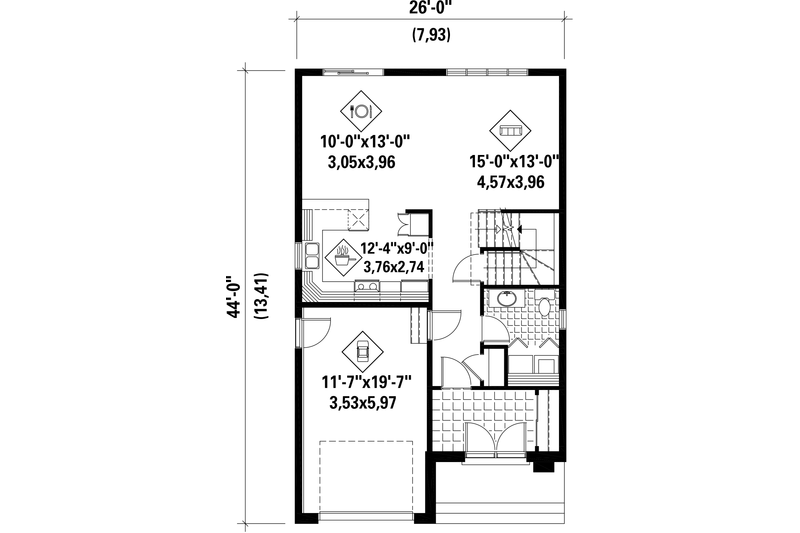

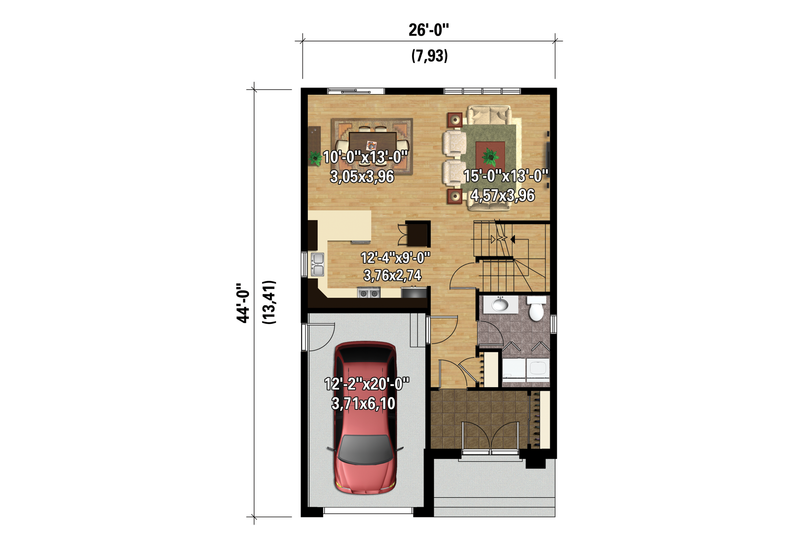

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

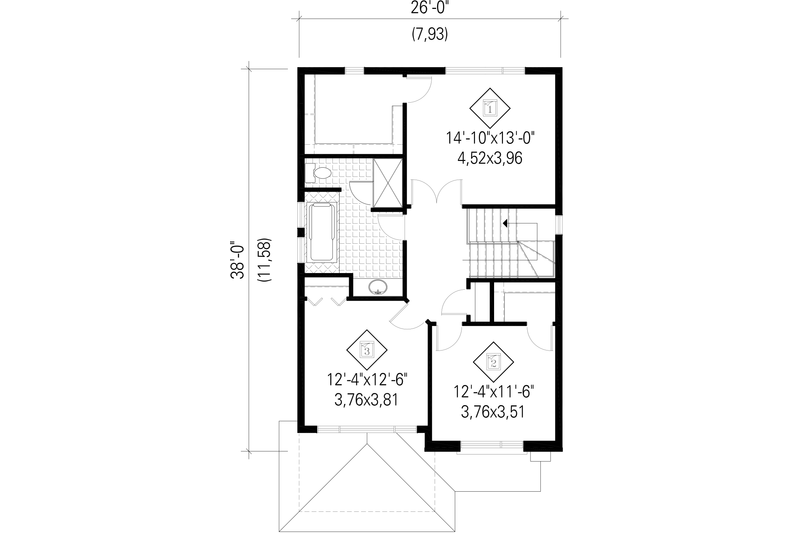

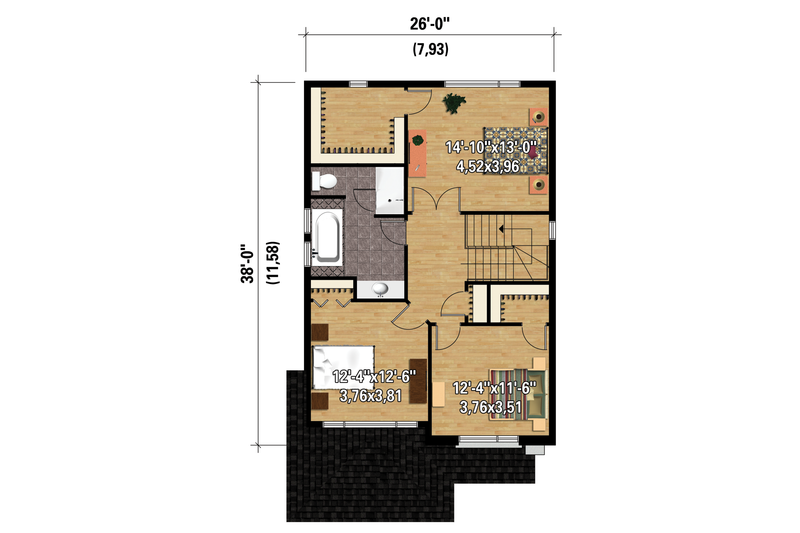

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Dimension Depth : 44'
Height : 30' 6"
Width : 26'
Area Basement : 0 sq/ft
Garage : 271 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 798 sq/ft
Upper Floor : 963 sq/ft
Ceiling Main Ceiling : 9'
Roof Roof Framing : Truss
Roof Load : 50
Primary Pitch : 6/12
Secondary Pitch : 6/12
Exterior Wall Framing Insulation : R20
Exterior Wall Finish : Brick Siding Stone
Framing : Wood - 2 x 6

What's Included In This Plan Set


Planimage

  • Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
  • Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
  • Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
  • Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
» See important information before purchasing.
Plan Set
5 Copy Set :
$860.00
5 printed plan sets mailed to you.
8 Copy Set :
$905.00
8 printed plan sets mailed to you.
PDF Set :
$1125.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1710.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Reproducible Set :
$1720.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Basement:
$860.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Material List :
130.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
